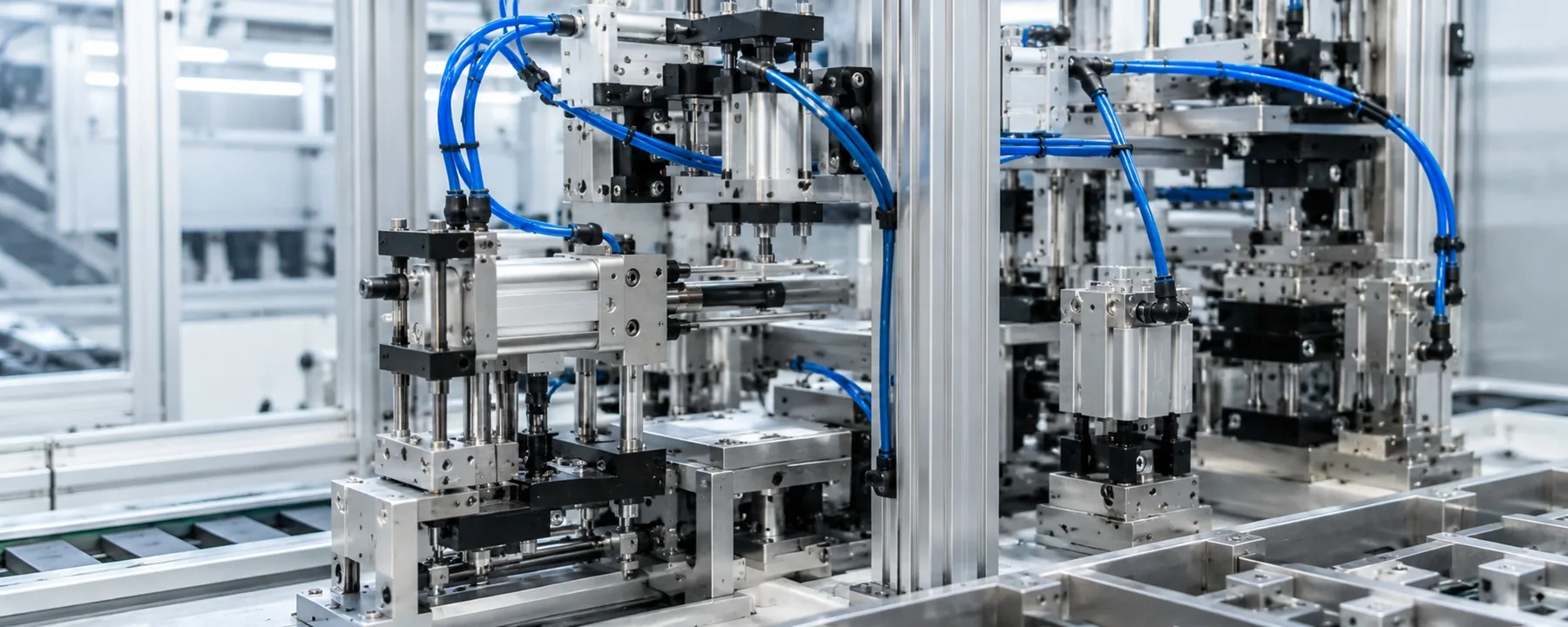

Compact Pneumatic Cylinders for Tight Machine Spaces

Introduction

Compact pneumatic cylinders are used when a machine needs linear movement but does not have enough space for a long standard cylinder body. They are common in packaging machines, fixture stations, product guides, clamping modules, small transfer units, inspection equipment, and automated assembly lines. Their short body length helps machine builders keep equipment smaller and easier to package.

Space saving is the main reason buyers choose compact cylinders, but it should not be the only reason. A compact cylinder still needs enough force, proper mounting, clean air, suitable stroke length, and a load path that does not overload the piston rod. If a compact cylinder is used in the wrong place, it may wear quickly or move inconsistently.

HOMIPNEU offers several compact cylinder options, including SDA compact pneumatic cylinders, CQ2B compact pneumatic cylinders, CQSB cylinders, CDU free mount cylinders, and MUB compact plate cylinders.

Why Compact Cylinders Are Useful

Many machines are designed around limited installation space. A packaging station may need a small pusher under a conveyor. A fixture may need a clamping motion inside a narrow frame. A testing machine may need several cylinders placed close together. A standard tie rod cylinder may be too long even if the required stroke is short.

Compact cylinders reduce the body length while still providing useful linear force. This allows designers to place actuators closer to the work point. Shorter pneumatic layouts can also reduce tube length and improve response time.

In OEM equipment, compact cylinders can help create cleaner machine modules. Smaller actuators often make guards, covers, and panels easier to design.

Common Compact Cylinder Types

The SDA compact cylinder is widely used for general compact automation. It is short, simple, and practical for pushing, clamping, lifting, and stopping tasks. The SDAJ adjustable stroke compact pneumatic cylinder adds adjustment where the final stroke needs fine tuning.

CQ2B and CQSB compact cylinders are also popular in equipment where a square or compact body is preferred. They are often selected for fixtures and compact machine modules. The CQSB compact pneumatic cylinder is one example used where compact layout and stable operation are required.

CDU and CDUJB free mount cylinders support flexible mounting in tight spaces. A CDU free mount pneumatic cylinder can be useful when the machine layout does not allow traditional brackets.

Bore, Stroke, and Force

Compact does not mean weak, but the cylinder still must be sized correctly. Bore size determines output force, while stroke determines movement distance. A compact cylinder with too small a bore may not complete the motion under real load. A bore that is too large may consume extra air and create harsh impact.

Use the actual working pressure when calculating force. Many factory systems do not run at the maximum catalog pressure all the time. If the local regulator is set lower, the cylinder output force is lower too.

Stroke should be chosen based on the movement needed, not by guessing. If the cylinder stops against a hard mechanical surface before reaching full stroke, impact and side load may increase. If the stroke is too short, the machine may not position the part reliably.

Watch Side Load Carefully

Compact cylinders are not guide units. Their short body can make them convenient, but side load remains a major risk. If the piston rod is used to carry sideways force, the rod and seals can wear early. The cylinder may start leaking or sticking after repeated cycles.

If the load needs to be guided, add an external guide or choose a guided cylinder. A compact cylinder should provide force, while the machine structure should handle alignment and side load.

This is especially important in pushing applications where the part may resist movement or tilt. A simple guide rail can protect the cylinder and improve repeatability.

Mounting Options and Accessibility

Compact cylinders often have multiple mounting holes, allowing direct installation on plates or brackets. This is useful for modular machine design. However, the cylinder should still be accessible for tube connection, speed adjustment, sensor installation, and replacement.

It is easy to place a compact cylinder into a very tight space during design, then discover that the fittings cannot be installed or the sensor cannot be adjusted. Leave enough working room around the ports and switch slots.

For OEM machines, standardizing mounting patterns across modules can reduce engineering time and simplify spare part replacement.

Speed Control in Short Stroke Applications

Short-stroke compact cylinders can move very quickly. If speed is not controlled, they may hit the end of stroke too hard. This can create noise, vibration, loose bolts, and reduced service life.

Use flow controls or speed controllers to adjust movement. In some machines, cushioning or external stops may be needed. A small compact cylinder can still create repeated impact if it cycles thousands of times per day.

When commissioning, adjust speed with the real load installed. A cylinder may look smooth without load but behave differently when pushing a product or fixture.

Sensors for Compact Cylinders

Many compact cylinders can use magnetic switches for position feedback. This helps the PLC confirm that the cylinder extended or retracted. In small machines, sensor feedback can prevent sequence errors and improve troubleshooting.

Check whether the selected cylinder includes a magnetic piston and what switch type fits the body. Sensor cables should be routed away from moving parts and sharp edges.

In dense machines, labels are helpful. Many compact cylinders may look similar, so clear cylinder and sensor labels save time during maintenance.

Practical Buying Tips

Choose compact pneumatic cylinders when installation space is limited and the movement does not require a long standard body. Confirm bore, stroke, mounting, port size, sensor needs, and expected load. If the load is not aligned, add a guide or choose a guided cylinder.

For purchasing, compare not only price but also product consistency, seal quality, mounting accuracy, and long-term availability. OEM buyers should test samples under real cycle conditions before bulk orders.

For replacement, match the original bore, stroke, mounting hole pattern, port position, and sensor compatibility. Small differences can prevent installation even when the cylinder looks similar.

Common Mistakes in Compact Layouts

The most common mistake is treating compact cylinders as a way to fix every tight-space problem. A smaller body helps the layout, but the cylinder still needs room for air fittings, sensor cables, speed controls, and hand access. If the installer cannot push a tube into the fitting or adjust a sensor, the machine will be difficult to maintain.

Another mistake is mounting the cylinder too close to the workpiece without considering contamination. Chips, powder, glue, film scraps, or water can reach the rod and seals. In dirty areas, shielding or a different actuator position may be needed.

Compact cylinders are also sometimes selected for clamping without checking the actual force at the part. A short cylinder with a small bore may look convenient, but if the clamp arm or fixture geometry reduces force, the final holding force may be too low. Always calculate force at the work point, not only at the piston.

Related Pneumatic Products

Compact cylinders are often used with solenoid valves, small fittings, PU tubes, speed controllers, and air preparation units. Browse HOMIPNEU's pneumatic cylinder category for SDA, CQ2B, CQSB, CDU, CDUJB, and MUB compact options.

If the application needs precision guiding, consider MGPM, MGPL, MXS, MXQ, or other guided cylinder products instead of forcing a compact cylinder to carry side load.

FAQ

What is a compact pneumatic cylinder used for?

It is used for short-stroke linear motion in limited spaces, such as clamping, pushing, lifting, stopping, and small fixture movements.

Is a compact cylinder as strong as a standard cylinder?

Force depends mainly on bore size and air pressure. A compact cylinder can provide useful force, but it may have different mounting and guiding limits.

Can compact cylinders handle side load?

They should not be used as guide units. If side load is present, use external guides or a guided cylinder.

Why does a compact cylinder hit too hard?

Short stroke cylinders can move quickly. Add speed control, check air pressure, and use proper stops or cushioning where needed.

Which compact cylinder types are common?

SDA, CQ2B, CQSB, CDU, CDUJB, and MUB styles are common choices for compact automation layouts.

Conclusion

Compact pneumatic cylinders help machine builders save space, but they still need careful selection. Bore, stroke, mounting, speed, side load, sensor access, and air quality all affect performance. Used correctly, compact cylinders make automation modules cleaner, smaller, and easier to maintain.
