Specifications
| Parameter | Description |
|---|---|

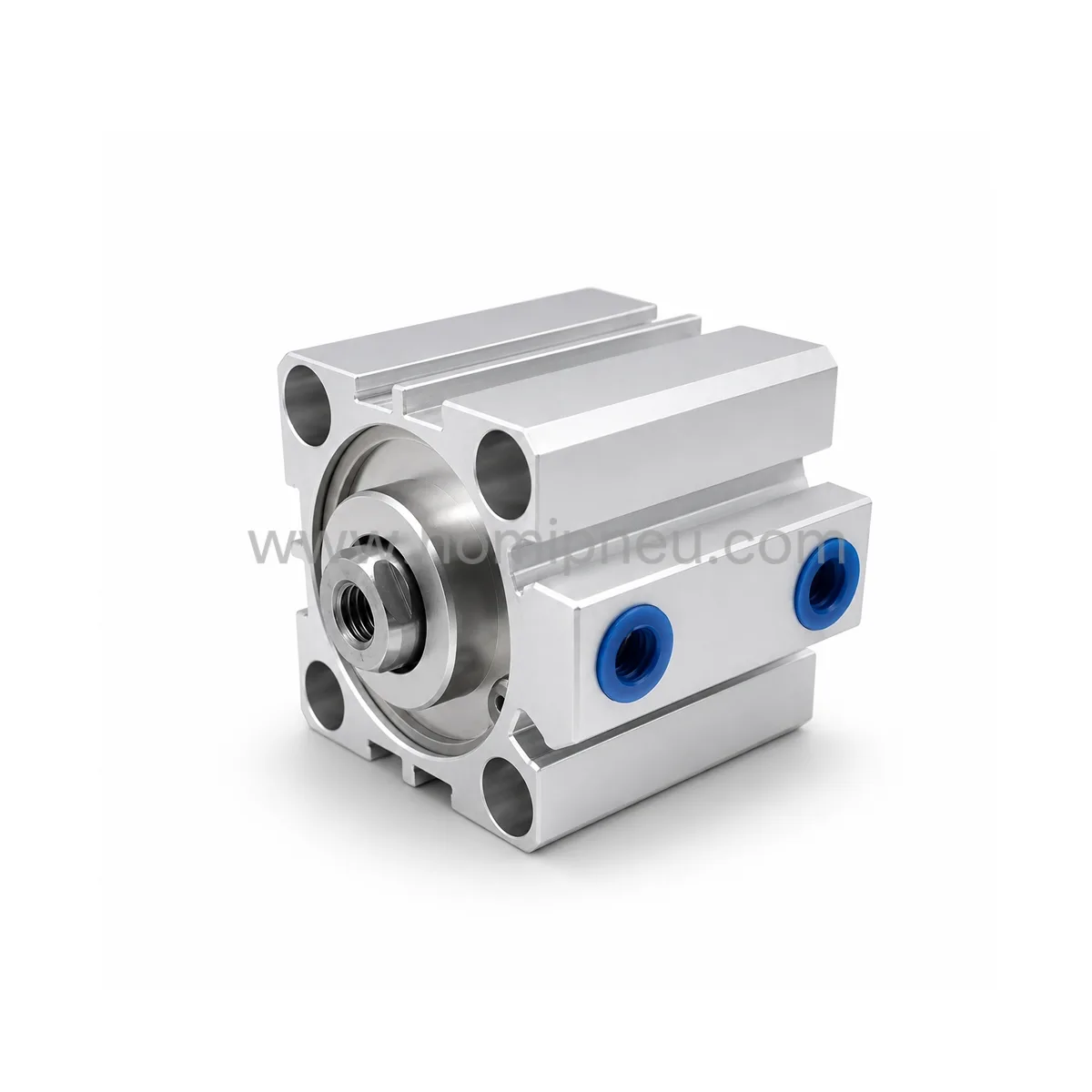

| Product Name | Adjustable Stroke Compact Pneumatic Cylinder |
| Series | SDAJ Series |
| Cylinder Type | Compact Pneumatic Cylinder |
| Stroke Type | Adjustable Stroke |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Body Material | Aluminum Alloy |
| Motion Type | Linear Reciprocating Motion |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac SDAJ Series |
| Applications | Positioning / Clamping / Transfer / Automation Systems |

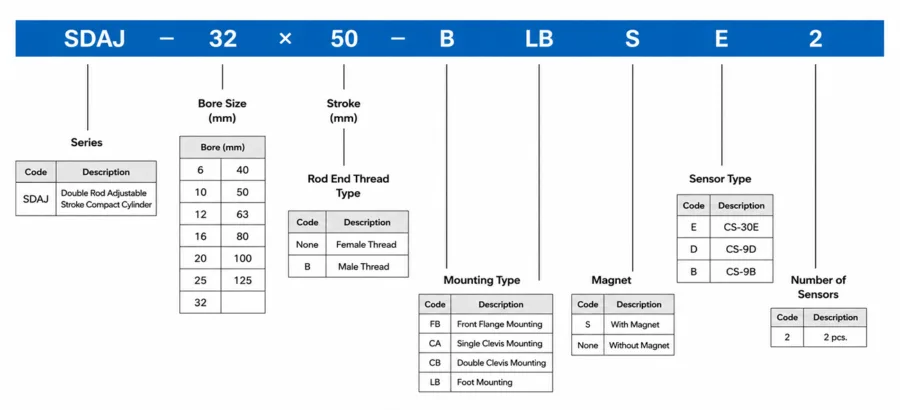

How to order
Product Features
Adjustable Stroke Design
The SDAJ Series supports adjustable stroke control, making it suitable for positioning and travel-limited automation applications.
Compact Cylinder Structure
Space-saving body design helps reduce installation space in compact machinery and automation equipment.
Stable Double Acting Operation
Provides controlled extension and retraction movement for repeated industrial pneumatic applications.
Durable Aluminum Alloy Body
The aluminum alloy cylinder body supports lightweight installation and stable operation in production environments.
Easy Equipment Integration
ISO standard mounting supports installation into fixtures, machinery, transfer units, and compact automation systems.
Suitable Replacement for Airtac SDAJ Series
Designed for compact pneumatic cylinder applications requiring replacement for Airtac SDAJ Series models.
Applications
Positioning Equipment
Used for adjustable pushing, stopping, and positioning operations in automated machinery.
Clamping Fixtures
Suitable for compact clamping and holding applications in jigs and fixtures.
Transfer Systems
Applied in workpiece pushing, feeding, and transfer stations.
Packaging Machinery
Used in compact packaging mechanisms requiring short-stroke pneumatic movement.
Assembly Automation
Suitable for part alignment, pressing, loading, and small linear motion applications.
Why Choose HOMIPNEU
- Stable compact cylinder manufacturing quality
- Adjustable stroke design for flexible automation use
- Compact structure for limited installation space
- ISO standard mounting for easier machine integration
- Support for customized bore, stroke, and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and pneumatic distributors
FAQ
Is the SDAJ Series interchangeable with Airtac SDAJ Series?
Yes, the SDAJ Series adjustable stroke compact pneumatic cylinder is designed to be interchangeable with Airtac SDAJ Series in many automation applications.
What is the SDAJ compact cylinder used for?
It is used for positioning, clamping, pushing, feeding, transfer, and short-stroke linear motion in automation equipment.
What is the main difference between SDA and SDAJ?
SDAJ is the adjustable stroke type within the compact cylinder category, suitable for applications requiring limited or fine-tuned travel.
Is it suitable for compact machinery?
Yes, the thin compact structure is suitable for equipment with limited installation space.
Can customized cylinder specifications be supplied?
Yes, customized bore sizes, stroke ranges, mounting dimensions, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for SDAJ Series compact pneumatic cylinders, including customized bore sizes, adjustable stroke ranges, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and system integrators.
