Air Solenoid Valves – Hongmi Pneumatic Co., Ltd

4V210-08 5/2 Way Single Solenoid Valve G1/4

Specifications Parameter Description Product Name 4V210-08 5/2 Way Single Solenoid Valve Model 4V210-08 Valve Type 5/2 way pneumatic solenoid valve Port Function 5 ports, 2 positions Port Size G1/4 or 1/4 inch option, confirm thread type before ordering Actuation Type Single solenoid, spring return Working Medium Clean compressed air Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector or terminal type option depending on coil configuration Typical Application Double-acting cylinders, pneumatic actuators, machine panels, and automation equipment Compatible Series Compatible with Airtac 4V200 Series Selection Checks Confirm port size, thread type, coil voltage, wiring type, pilot type, pressure range, flow demand, and installation space before ordering Product Features 5/2 Way Directional Air Control The 4V210-08 is designed for directional compressed air control in pneumatic systems that require one pressure port, two working ports, and two exhaust ports. Its 5 port 2 position structure is commonly used for double-acting cylinder control. Single Solenoid Spring Return Structure The single solenoid design switches the valve when the coil is energized and returns by spring force when the signal is…

Views: 13 2026-07-03

4V410-15 5/2 Way Single Solenoid Valve G1/2

Specifications Parameter Description Product Name 4V410-15 5/2 Way Single Solenoid Valve Model 4V410-15 Valve Type 5/2 way pneumatic solenoid valve Port Function 5 ports, 2 positions Port Size G1/2 or 1/2 inch option, confirm thread type before ordering Actuation Type Single solenoid, spring return Working Medium Clean compressed air Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector or terminal type option depending on coil configuration Typical Application Double-acting cylinders, pneumatic actuators, machine panels, and automation equipment Compatible Series Compatible with Airtac 4V400 Series Selection Checks Confirm port size, thread type, coil voltage, wiring type, pilot type, pressure range, flow demand, and installation space before ordering Product Features 5/2 Way Directional Air Control The 4V410-15 is designed for directional compressed air control in pneumatic systems that require one pressure port, two working ports, and two exhaust ports. Its 5 port 2 position structure is commonly used for double-acting cylinder control. Single Solenoid Spring Return Structure The single solenoid design switches the valve when the coil is energized and returns by spring force when the signal is…

Views: 7 2026-07-03

4V310-10 5/2 Way Single Solenoid Valve G3/8

Specifications Parameter Description Product Name 4V310-10 5/2 Way Single Solenoid Valve Model 4V310-10 Valve Type 5/2 way pneumatic solenoid valve Port Function 5 ports, 2 positions Port Size G3/8 or 3/8 inch option, confirm thread type before ordering Actuation Type Single solenoid, spring return Working Medium Clean compressed air Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector or terminal type option depending on coil configuration Typical Application Double-acting cylinders, pneumatic actuators, machine panels, and automation equipment Compatible Series Compatible with Airtac 4V300 Series Selection Checks Confirm port size, thread type, coil voltage, wiring type, pilot type, pressure range, flow demand, and installation space before ordering Product Features 5/2 Way Directional Air Control The 4V310-10 is designed for directional compressed air control in pneumatic systems that require one pressure port, two working ports, and two exhaust ports. Its 5 port 2 position structure is commonly used for double-acting cylinder control. Single Solenoid Spring Return Structure The single solenoid design switches the valve when the coil is energized and returns by spring force when the signal is…

Views: 12 2026-07-03

How to Choose 3V Series 3/2 Way Air Solenoid Valves

The 3V series 3/2 way air solenoid valve is commonly used in pneumatic automation systems where compressed air must be switched between supply and exhaust. These valves are often selected for single-acting cylinders, pneumatic fixtures, blow-off circuits, actuator return control, and machine panel assemblies. For buyers, the main question is not only whether the valve is 3/2 way. The port size, flow requirement, coil voltage, electrical connection, installation space, and actuator demand all affect the final selection. A small valve may work well for compact fixtures, while a larger model is needed when higher airflow is required. What a 3/2 Way Air Solenoid Valve Does A 3/2 way valve has three ports and two positions. In a typical pneumatic circuit, it can send air to an actuator port and then exhaust that air when the signal changes. This makes it useful for single-acting cylinder control, air signal switching, and auxiliary pneumatic functions. Model Typical Port Direction Best Fit 3V110-06 G1/8 Small fixtures, compact panels, light actuator circuits 3V210-08 G1/4 General pneumatic machine control and medium air lines 3V310-10 Larger mid-range…

Views: 18 2026-07-03

4V120-06 5/2 Way Double Solenoid Valve G1/8

Specifications Parameter Description Product Name 4V120-06 5/2 Way Double Solenoid Valve Model 4V120-06 Valve Type 5/2 way pneumatic solenoid valve Port Function 5 ports, 2 positions Port Size G1/8 or 1/8 inch option, confirm thread type before ordering Actuation Type Double solenoid Working Medium Clean compressed air Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector, terminal type, or lead wire option depending on coil configuration Typical Application Double-acting cylinders, compact pneumatic actuators, machine panels, and automation equipment Compatible Series Compatible with Airtac 4V100 Series Selection Checks Confirm port size, thread type, coil voltage, wiring type, pilot type, pressure range, flow demand, and installation space before ordering Product Features 5/2 Way Directional Air Control The 4V120-06 is designed for directional compressed air control in pneumatic systems that require one pressure port, two working ports, and two exhaust ports. Its 5 port 2 position structure is commonly used for double-acting cylinder control. Double Solenoid with Memory Function The double solenoid structure uses two coils to switch the valve between two working positions. Compared with a single solenoid…

Views: 17 2026-07-03

3V Series Solenoid Valves for Single-Acting Cylinder Control

Single-acting pneumatic cylinders need a valve that can both supply compressed air and release it when the actuator returns. This is one reason 3/2 way air solenoid valves are widely used in pneumatic automation. The 3V series provides several body and port size options for different machine layouts. In a single-acting cylinder circuit, the valve sends air to extend or actuate the cylinder. When the electrical signal changes, the valve exhausts air so the spring or external force can return the actuator. This simple function is used in clamping, pushing, lifting, stopping, ejecting, and indexing operations. Where 3V Series Valves Are Used 3V series valves are common in assembly stations, packaging equipment, fixture control, material handling systems, and pneumatic panels. Small machines may use the 3V110-06 3/2 Way Air Solenoid Valve G1/8, while general machine panels often use the 3V210-08 3/2 Way Air Solenoid Valve G1/4. Larger actuator circuits may require the 3V310-10 3/2 Way Air Solenoid Valve or 3V410-15 3/2 Way Air Solenoid Valve G1/2 depending on flow and port size. Application Why a 3/2 Way Valve Fits Single-acting…

Views: 10 2026-07-03

4V320-10 5/2 Way Double Solenoid Valve G3/8

Specifications Parameter Description Product Name 4V320-10 5/2 Way Double Solenoid Valve Model 4V320-10 Valve Type 5/2 way pneumatic solenoid valve Port Function 5 ports, 2 positions Port Size G3/8 or 3/8 inch option, confirm thread type before ordering Actuation Type Double solenoid Working Medium Clean compressed air Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector or terminal type option depending on coil configuration Typical Application Double-acting cylinders, pneumatic actuators, machine panels, and automation equipment Compatible Series Compatible with Airtac 4V300 Series Selection Checks Confirm port size, thread type, coil voltage, wiring type, pilot type, pressure range, flow demand, and installation space before ordering Product Features 5/2 Way Directional Air Control The 4V320-10 is designed for directional compressed air control in pneumatic systems that require one pressure port, two working ports, and two exhaust ports. Its 5 port 2 position structure is commonly used for double-acting cylinder control. Double Solenoid with Memory Function The double solenoid structure uses two coils to switch the valve between two working positions. Compared with a single solenoid spring-return valve, it…

Views: 12 2026-07-03

4V220-08 5/2 Way Double Solenoid Valve G1/4

Specifications Parameter Description Product Name 4V220-08 5/2 Way Double Solenoid Valve Model 4V220-08 Valve Type 5/2 way pneumatic solenoid valve Port Function 5 ports, 2 positions Port Size G1/4 or 1/4 inch option, confirm thread type before ordering Actuation Type Double solenoid Working Medium Clean compressed air Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector or terminal type option depending on coil configuration Typical Application Double-acting cylinders, pneumatic actuators, machine panels, and automation equipment Compatible Series Compatible with Airtac 4V200 Series Selection Checks Confirm port size, thread type, coil voltage, wiring type, pilot type, pressure range, flow demand, and installation space before ordering Product Features 5/2 Way Directional Air Control The 4V220-08 is designed for directional compressed air control in pneumatic systems that require one pressure port, two working ports, and two exhaust ports. Its 5 port 2 position structure is commonly used for double-acting cylinder control. Double Solenoid with Memory Function The double solenoid structure uses two coils to switch the valve between two working positions. Compared with a single solenoid spring-return valve, it…

Views: 14 2026-07-03

4V420-15 5/2 Way Double Solenoid Valve G1/2

Specifications Parameter Description Product Name 4V420-15 5/2 Way Double Solenoid Valve Model 4V420-15 Valve Type 5/2 way pneumatic solenoid valve Port Function 5 ports, 2 positions Port Size G1/2 or 1/2 inch option, confirm thread type before ordering Actuation Type Double solenoid Working Medium Clean compressed air Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector or terminal type option depending on coil configuration Typical Application Double-acting cylinders, pneumatic actuators, machine panels, and automation equipment Compatible Series Compatible with Airtac 4V400 Series Selection Checks Confirm port size, thread type, voltage, wiring type, pilot type, pressure range, flow demand, and installation space before ordering Product Features 5/2 Way Directional Air Control The 4V420-15 is designed for directional compressed air switching in pneumatic systems that require one pressure port, two working ports, and two exhaust ports. Its 5 port 2 position structure is commonly used for double-acting cylinder control. Double Solenoid with Memory Function Compared with a single solenoid spring-return valve, the double solenoid structure can hold the last switched position after the electrical signal changes. This makes…

Views: 15 2026-07-03

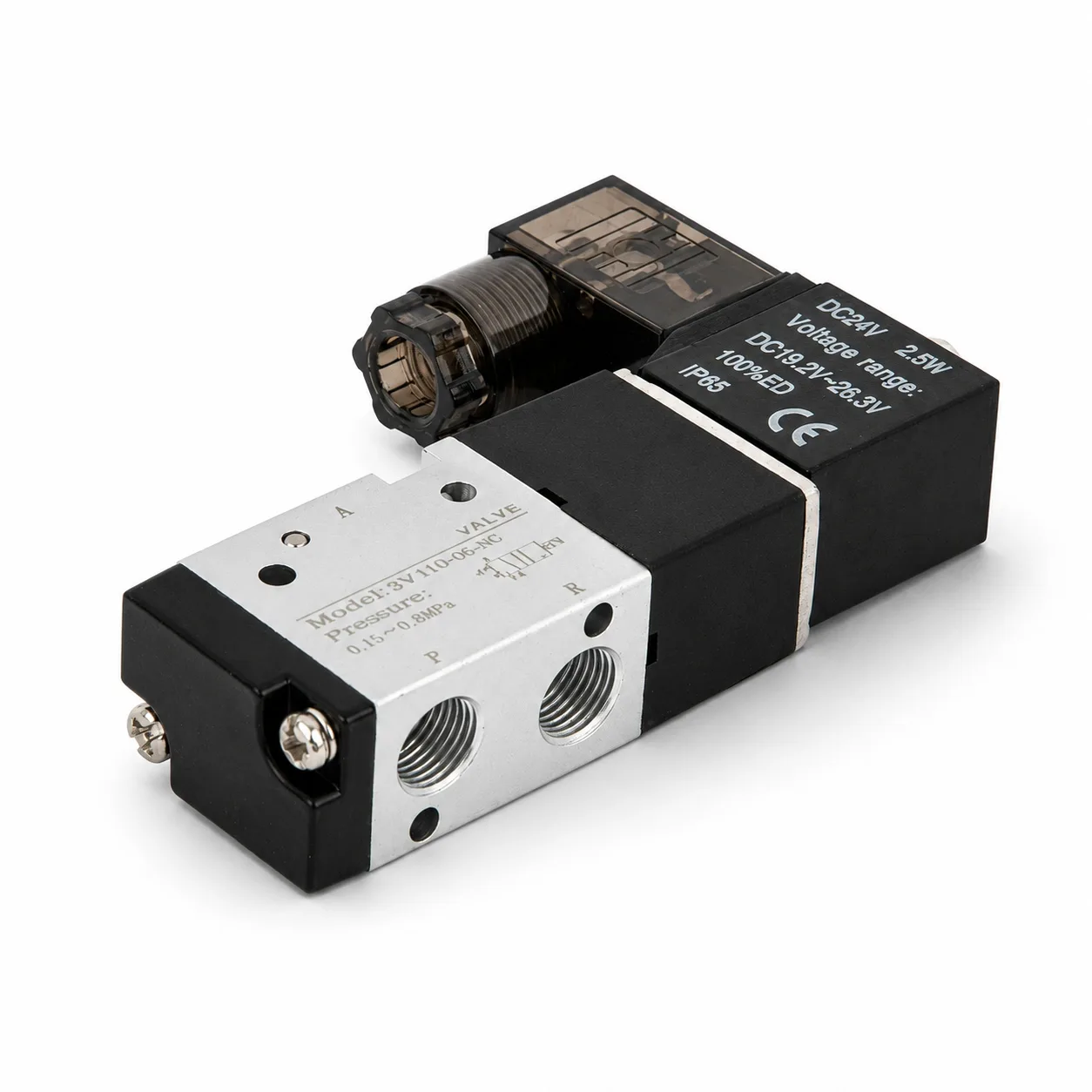

3V110-06 3/2 Way Air Solenoid Valve G1/8

Specifications Parameter Description Product Name 3V110-06 3/2 Way Air Solenoid Valve Model 3V110-06 Valve Type 3/2 way pneumatic solenoid valve Port Function 3 ports, 2 positions Port Size G1/8 or 1/8 inch option, confirm thread type before ordering Working Medium Clean compressed air Actuation Type Single solenoid, spring return Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector or lead wire option depending on coil type Typical Application Single-acting cylinders, small pneumatic fixtures, control panels, and automation equipment Compatible Series Compatible with Airtac 3V100 Series Selection Checks Confirm port size, thread type, coil voltage, pressure range, flow demand, connector type, and installation space before ordering Product Features 3/2 Way Directional Air Control The 3V110-06 is designed for compressed air switching in pneumatic circuits that require one air inlet, one outlet, and one exhaust path. Its 3 port 2 position structure is suitable for simple actuator control and compact air circuit switching. G1/8 Port for Compact Pneumatic Systems With a G1/8 port size, this valve is suitable for smaller pneumatic devices, compact fixtures, light automation equipment, air…

Views: 12 2026-07-03

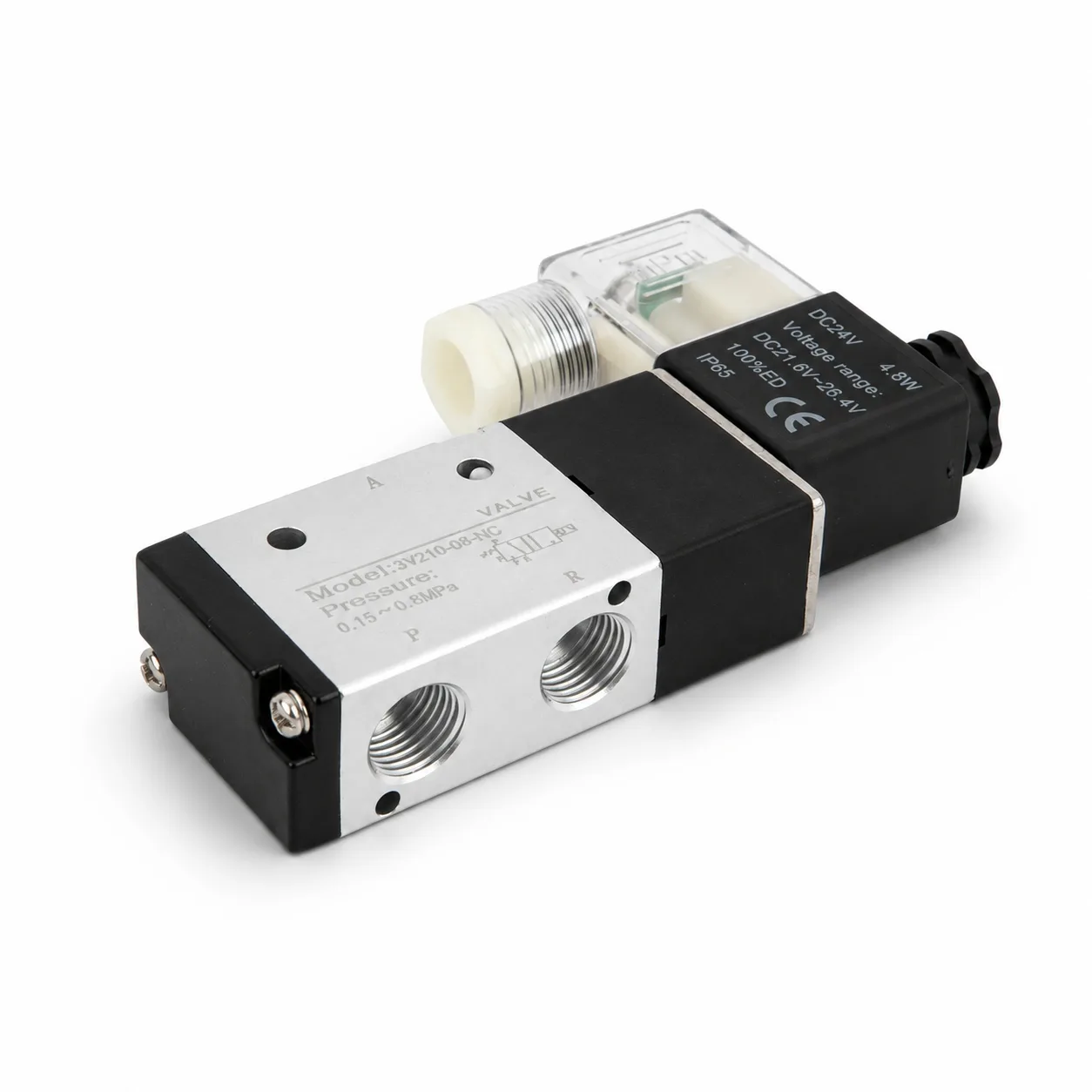

3V210-08 3/2 Way Air Solenoid Valve G1/4

Specifications Parameter Description Product Name 3V210-08 3/2 Way Air Solenoid Valve Model 3V210-08 Valve Type 3/2 way pneumatic solenoid valve Port Function 3 ports, 2 positions Port Size G1/4 or 1/4 inch option, confirm thread type before ordering Working Medium Clean compressed air Actuation Type Single solenoid, spring return Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector or lead wire option depending on coil type Typical Application Single-acting cylinders, pneumatic fixtures, air control panels, and automation equipment Compatible Series Compatible with Airtac 3V200 Series Selection Checks Confirm port size, thread type, coil voltage, pressure range, flow demand, connector type, and installation space before ordering Product Features 3/2 Way Directional Air Control The 3V210-08 is designed for compressed air switching in pneumatic systems that need one air inlet, one outlet, and one exhaust path. Its 3 port 2 position structure makes it suitable for simple actuator control and air circuit switching. G1/4 Port for Common Pneumatic Systems With a G1/4 port size, this valve is suitable for many standard pneumatic machines, fixture systems, small automation lines,…

Views: 17 2026-07-02

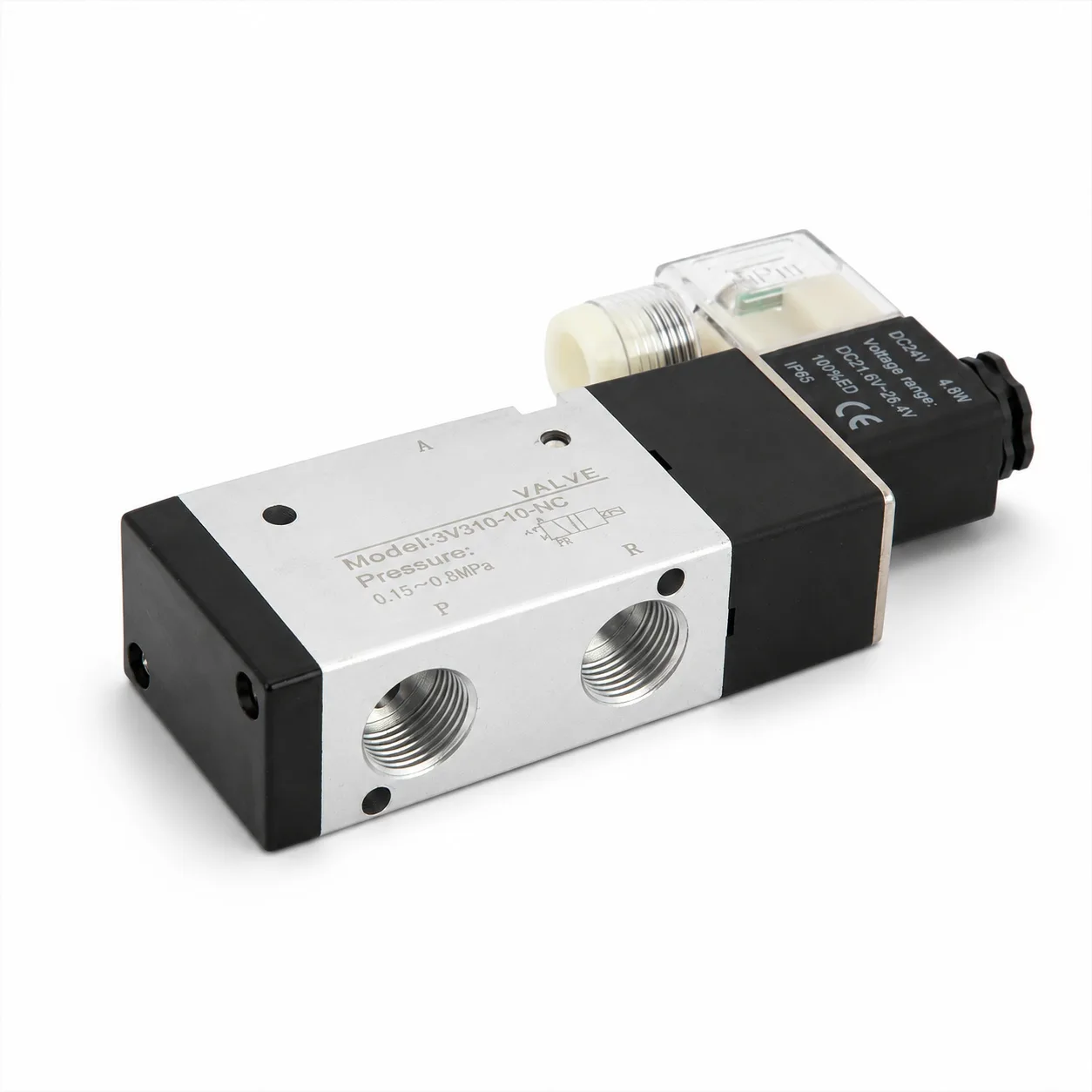

3V310-10 3/2 Way Air Solenoid Valve G3/8

Specifications Parameter Description Product Name 3V310-10 3/2 Way Air Solenoid Valve Model 3V310-10 Valve Type 3/2 way pneumatic solenoid valve Port Function 3 ports, 2 positions Port Size G3/8 or 3/8 inch option, confirm thread type before ordering Working Medium Clean compressed air Actuation Type Single solenoid, spring return Typical Coil Voltage DC12V, DC24V, AC110V, AC220V options available Electrical Connection DIN connector, terminal type, or lead wire option depending on coil configuration Typical Application Single-acting cylinders, pneumatic fixtures, air control panels, and automation equipment Compatible Series Compatible with Airtac 3V300 Series Selection Checks Confirm port size, thread type, coil voltage, wiring type, pressure range, flow demand, connector type, and installation space before ordering Product Features 3/2 Way Directional Air Control The 3V310-10 is designed for compressed air switching in pneumatic systems that require one air inlet, one outlet, and one exhaust path. Its 3 port 2 position structure is suitable for single-acting actuator control and simple air circuit switching. G3/8 Port for Medium Flow Pneumatic Systems With a G3/8 port size, this valve is suitable for pneumatic circuits that need…

Views: 30 2026-07-01

1
2
Next Page
Total Pages: 2

4V210-08 5/2 Way Single Solenoid Valve G1/4

4V410-15 5/2 Way Single Solenoid Valve G1/2

4V310-10 5/2 Way Single Solenoid Valve G3/8

How to Choose 3V Series 3/2 Way Air Solenoid Valves

4V120-06 5/2 Way Double Solenoid Valve G1/8

3V Series Solenoid Valves for Single-Acting Cylinder Control

4V320-10 5/2 Way Double Solenoid Valve G3/8

4V220-08 5/2 Way Double Solenoid Valve G1/4

4V420-15 5/2 Way Double Solenoid Valve G1/2

3V110-06 3/2 Way Air Solenoid Valve G1/8

3V210-08 3/2 Way Air Solenoid Valve G1/4

3V310-10 3/2 Way Air Solenoid Valve G3/8
