Specifications
| Parameter | Description |
|---|---|

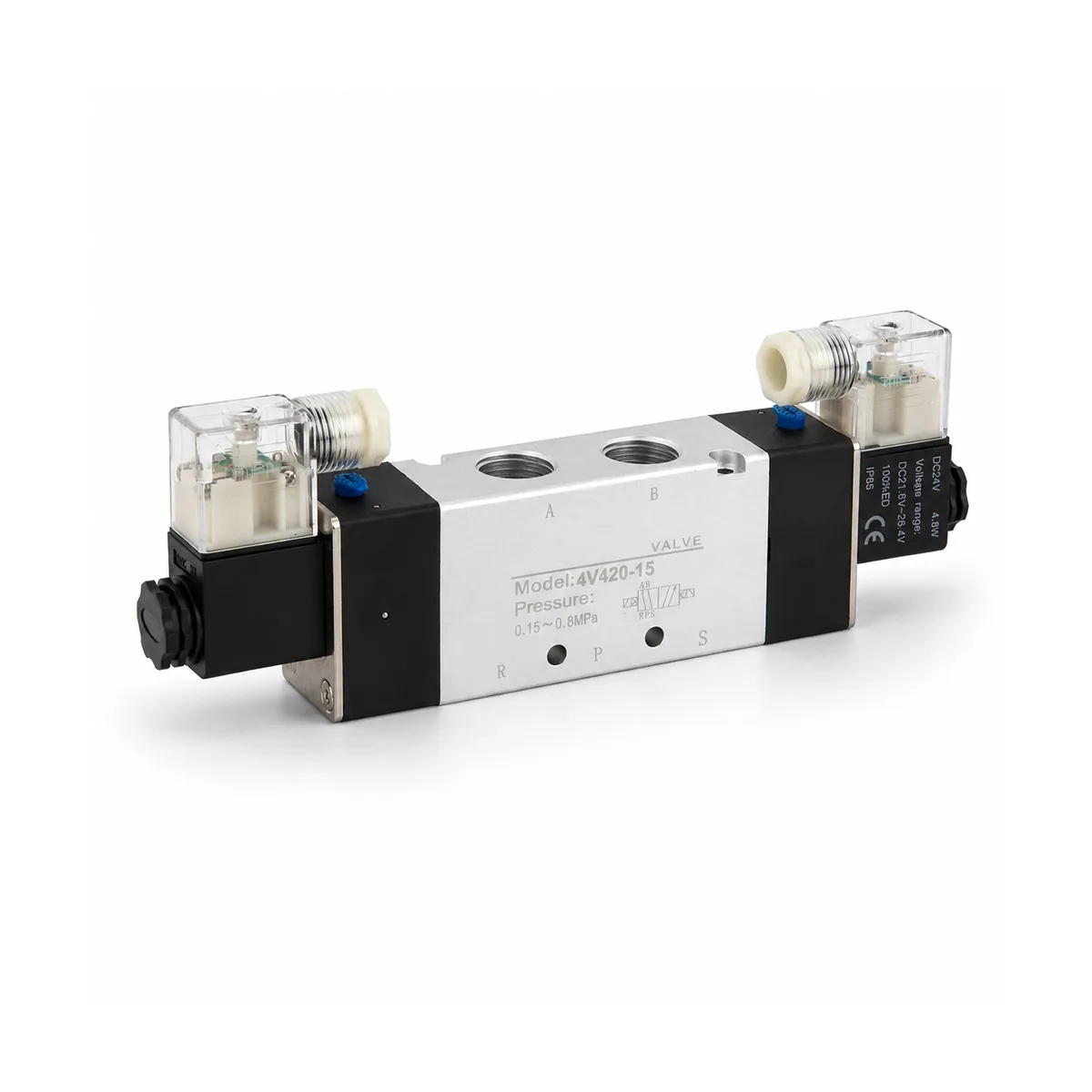

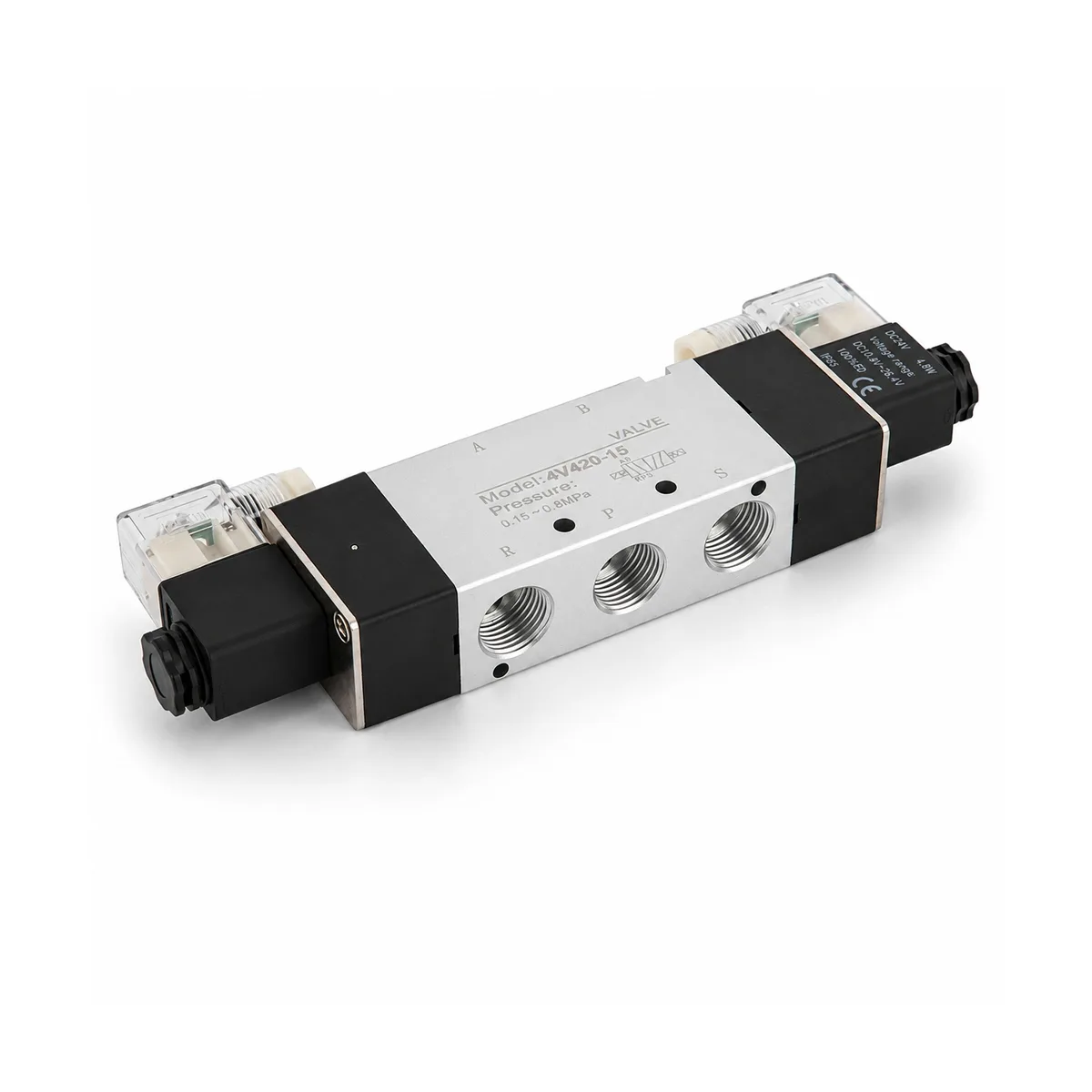

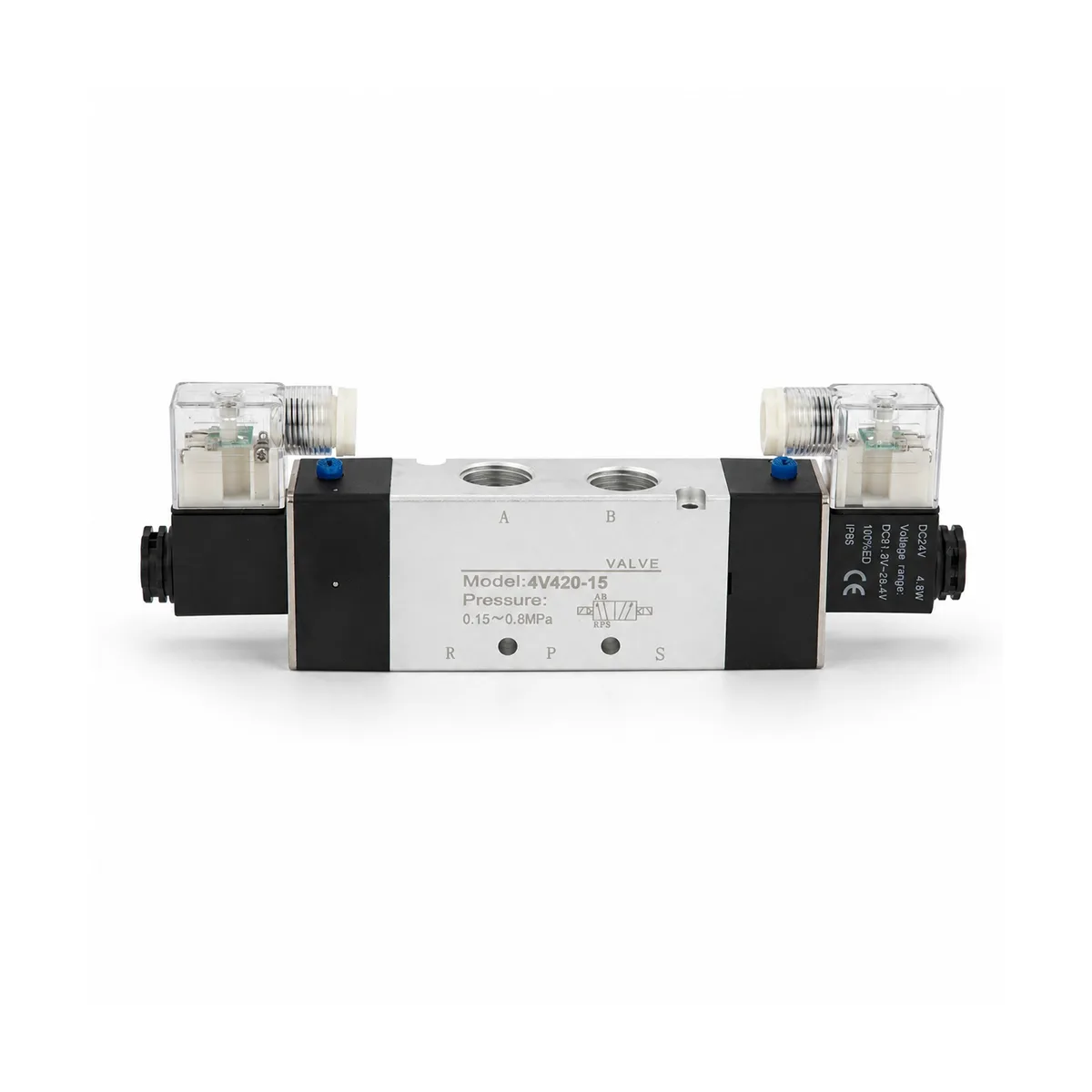

| Product Name | 4V420-15 5/2 Way Double Solenoid Valve |
| Model | 4V420-15 |
| Valve Type | 5/2 way pneumatic solenoid valve |
| Port Function | 5 ports, 2 positions |
| Port Size | G1/2 or 1/2 inch option, confirm thread type before ordering |
| Actuation Type | Double solenoid |
| Working Medium | Clean compressed air |
| Typical Coil Voltage | DC12V, DC24V, AC110V, AC220V options available |
| Electrical Connection | DIN connector or terminal type option depending on coil configuration |
| Typical Application | Double-acting cylinders, pneumatic actuators, machine panels, and automation equipment |
| Compatible Series | Compatible with Airtac 4V400 Series |
| Selection Checks | Confirm port size, thread type, voltage, wiring type, pilot type, pressure range, flow demand, and installation space before ordering |
Product Features
5/2 Way Directional Air Control
The 4V420-15 is designed for directional compressed air switching in pneumatic systems that require one pressure port, two working ports, and two exhaust ports. Its 5 port 2 position structure is commonly used for double-acting cylinder control.
Double Solenoid with Memory Function
Compared with a single solenoid spring-return valve, the double solenoid structure can hold the last switched position after the electrical signal changes. This makes it suitable for pneumatic circuits that require position retention during machine operation.
G1/2 Port for Higher Flow Pneumatic Circuits
With a G1/2 port size, the 4V420-15 is suitable for applications that require stronger airflow than smaller 4V series valves. It can support larger pneumatic cylinders, machine actuators, and automation equipment.
Ideal Replacement for Airtac 4V420-15 Series
When the valve function, port size, thread type, voltage, connector type, pilot type, mounting space, and pressure range match, this valve can be used as a practical replacement for Airtac 4V420-15 Series pneumatic solenoid valves.
Suitable for Double-Acting Cylinder Control
The valve is commonly used to control extension and retraction of double-acting pneumatic cylinders in packaging machinery, assembly lines, clamping systems, pushing units, and material handling equipment.
OEM and Distributor Supply Friendly
HOMIPNEU supports bulk orders, model confirmation, export packaging, private label requirements, and stable supply for pneumatic valve distributors, machine builders, and automation equipment suppliers.
Applications
Double-Acting Pneumatic Cylinders
Used to control forward and return movement of double-acting cylinders in pushing, clamping, lifting, positioning, indexing, and transfer applications.
Packaging Machinery
Suitable for cylinder control in sealing machines, labeling machines, carton handling equipment, bagging machines, diverters, pushers, and pneumatic stops.
Automation Equipment
Applied in assembly machines, material handling systems, pneumatic fixtures, production lines, and industrial control panels.
Pneumatic Valve Manifolds and Control Panels
Installed in valve banks, pneumatic control cabinets, and machine panels where electrical signals need to control compressed air direction.
Maintenance and Replacement Projects
Suitable for equipment repair, spare parts inventory, distributor stock, and replacement projects when the original valve specifications match.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic solenoid valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, air preparation units, and related compressed air components for industrial automation.
We help customers confirm model details before ordering, including valve function, port size, thread type, coil voltage, wiring type, pilot type, pressure range, flow demand, and installation layout.
For OEM customers and distributors, HOMIPNEU can provide bulk supply, private label packaging, export cartons, and stable sourcing support for pneumatic valve projects.
FAQ
What is the 4V420-15 solenoid valve used for?
The 4V420-15 is used for directional compressed air control in pneumatic systems. It is commonly applied to double-acting cylinders, pneumatic actuators, machine panels, packaging machinery, and OEM automation equipment.
Is the 4V420-15 a 5/2 way valve?
Yes. The 4V420-15 belongs to the 4V400 Series and is generally used as a 5/2 way pneumatic solenoid valve with 5 ports and 2 positions.
What does double solenoid mean?
Double solenoid means the valve uses two coils to switch between two positions. This structure can keep the last switched position and is commonly used in pneumatic circuits that need position memory.
Can the 4V420-15 control a double-acting cylinder?
Yes. A 5/2 way solenoid valve is commonly used to control double-acting cylinders, as long as the port size, flow capacity, voltage, pressure range, thread type, and installation layout match the system.
Is this valve interchangeable with Airtac 4V420-15 Series?
It can be used as an interchangeable option when the model function, port size, thread type, voltage, connector type, pilot type, mounting layout, and working conditions match the original Airtac 4V420-15 Series valve.
What should be confirmed before ordering?
Please confirm the model, valve function, port size, thread type, coil voltage, wiring type, internal or external pilot type, working pressure, flow requirement, installation space, order quantity, and packaging requirement.
Does HOMIPNEU support OEM or distributor orders?
Yes. HOMIPNEU supports OEM and ODM orders, bulk supply, private label packaging, export cartons, and model confirmation for pneumatic valves and related air control components.
OEM & ODM Support
HOMIPNEU provides OEM and ODM support for 5/2 way solenoid valves, 5/3 way solenoid valves, 3/2 way solenoid valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, and complete compressed air system components. Customers can provide the model, port size, thread type, coil voltage, pilot type, pressure range, application environment, packaging requirement, and expected quantity for accurate valve selection and supply.
