Specifications
| Parameter | Description |
|---|---|

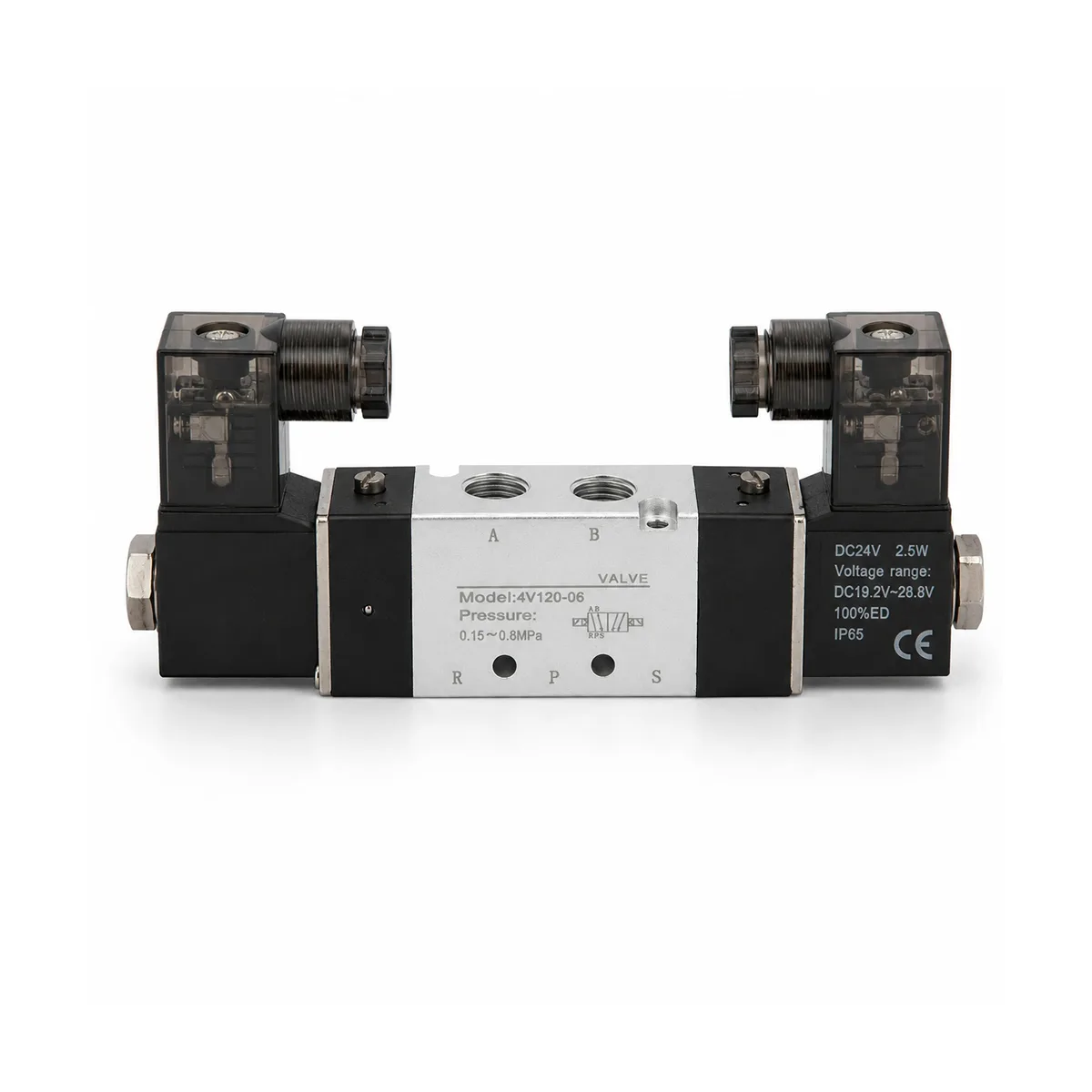

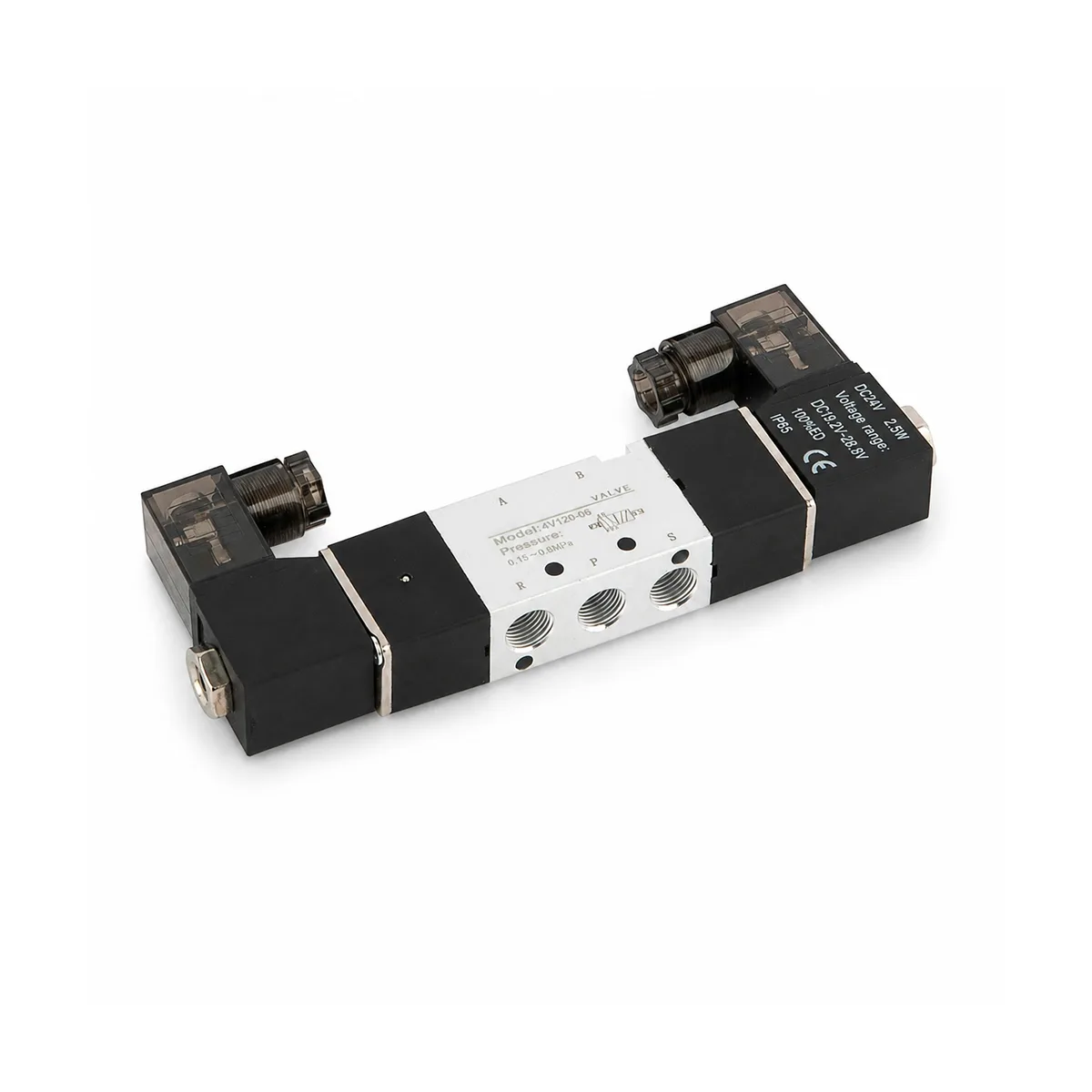

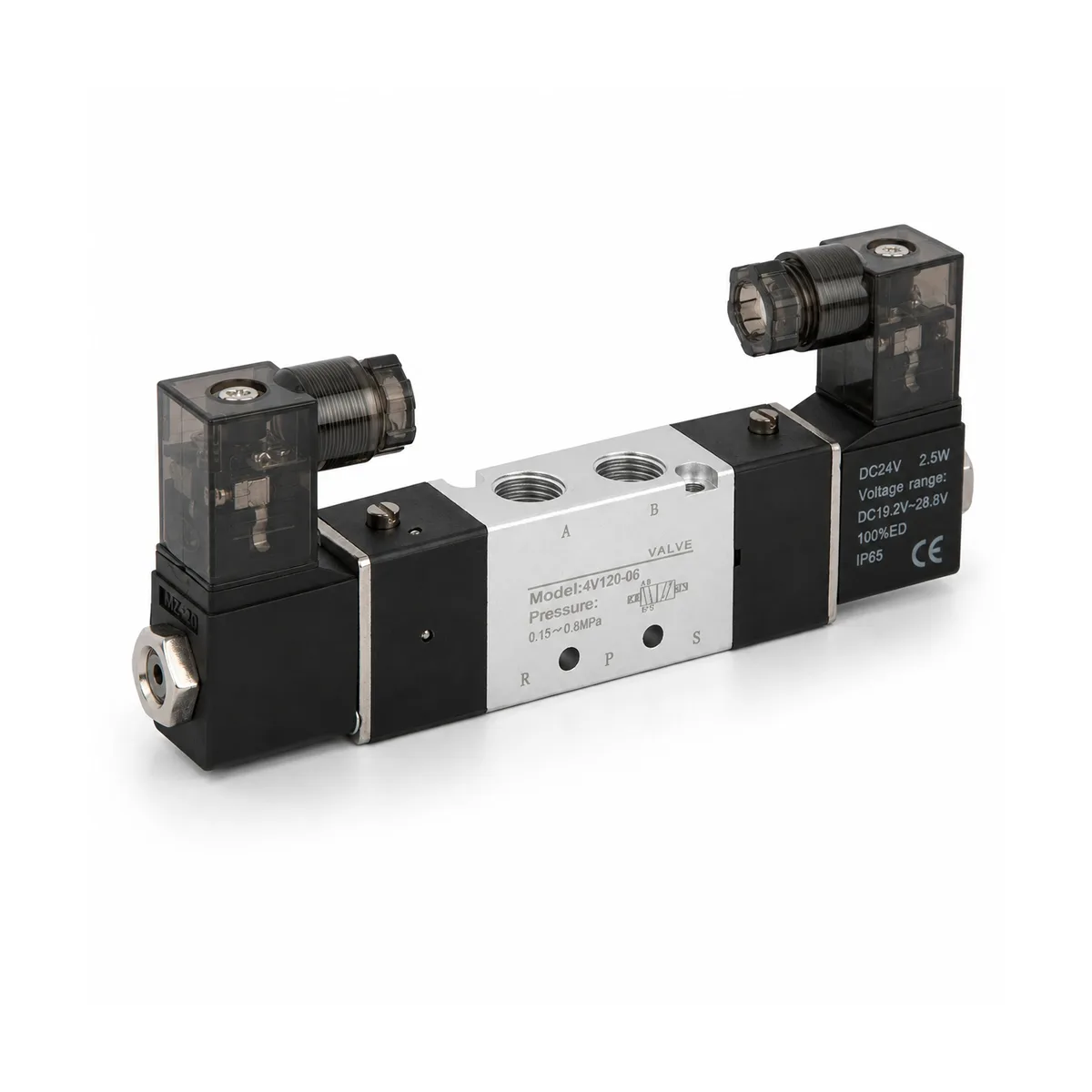

| Product Name | 4V120-06 5/2 Way Double Solenoid Valve |
| Model | 4V120-06 |
| Valve Type | 5/2 way pneumatic solenoid valve |
| Port Function | 5 ports, 2 positions |
| Port Size | G1/8 or 1/8 inch option, confirm thread type before ordering |
| Actuation Type | Double solenoid |
| Working Medium | Clean compressed air |
| Typical Coil Voltage | DC12V, DC24V, AC110V, AC220V options available |
| Electrical Connection | DIN connector, terminal type, or lead wire option depending on coil configuration |
| Typical Application | Double-acting cylinders, compact pneumatic actuators, machine panels, and automation equipment |
| Compatible Series | Compatible with Airtac 4V100 Series |
| Selection Checks | Confirm port size, thread type, coil voltage, wiring type, pilot type, pressure range, flow demand, and installation space before ordering |
Product Features
5/2 Way Directional Air Control
The 4V120-06 is designed for directional compressed air control in pneumatic systems that require one pressure port, two working ports, and two exhaust ports. Its 5 port 2 position structure is commonly used for double-acting cylinder control.
Double Solenoid with Memory Function
The double solenoid structure uses two coils to switch the valve between two working positions. Compared with a single solenoid spring-return valve, it can keep the last switched position after the signal changes, which is useful for pneumatic circuits that need position retention.
G1/8 Port for Compact Pneumatic Systems
With a G1/8 port size, the 4V120-06 is suitable for compact pneumatic equipment, small cylinder control, light-duty automation, valve panels, and space-limited machine installations.
Ideal Replacement for Airtac 4V120-06 Series
When the valve function, port size, thread type, voltage, connector type, pilot type, mounting space, and working pressure match, this valve can be used as a practical replacement for Airtac 4V120-06 Series pneumatic solenoid valves.
Suitable for Small Double-Acting Cylinder Control
The valve is commonly used to control extension and retraction of small double-acting pneumatic cylinders in compact fixtures, pushers, stops, testing equipment, packaging machines, and light automation systems.
Easy for OEM and Distributor Supply
HOMIPNEU supports bulk orders, model confirmation, export packaging, private label requirements, and stable supply for pneumatic valve distributors, machine builders, and automation equipment suppliers.
Applications
Double-Acting Pneumatic Cylinders
Used to control forward and return movement of double-acting cylinders in pushing, clamping, lifting, positioning, indexing, and transfer applications.
Compact Automation Equipment
Suitable for small assembly machines, pneumatic fixtures, testing equipment, positioning units, light-duty production systems, and compact actuator control.
Packaging Machinery
Applied in small pushers, diverters, ejectors, stops, labeling equipment, sealing machines, and auxiliary pneumatic control circuits.
Pneumatic Valve Manifolds and Control Panels
Installed in compact valve banks, pneumatic control cabinets, and machine panels where electrical signals need to control compressed air direction.
Maintenance and Replacement Projects
Suitable for equipment repair, spare parts inventory, distributor stock, and replacement projects when the original valve specifications match.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic solenoid valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, air preparation units, and related compressed air components for industrial automation.
We help customers confirm model details before ordering, including valve function, port size, thread type, coil voltage, wiring type, pilot type, pressure range, flow demand, and installation layout.
For OEM customers and distributors, HOMIPNEU can provide bulk supply, private label packaging, export cartons, and stable sourcing support for pneumatic valve projects.
FAQ
What is the 4V120-06 solenoid valve used for?
The 4V120-06 is used for directional compressed air control in pneumatic systems. It is commonly applied to small double-acting cylinders, pneumatic actuators, compact machine panels, packaging machinery, and OEM automation equipment.
Is the 4V120-06 a 5/2 way valve?
Yes. The 4V120-06 belongs to the 4V100 Series and is generally used as a 5/2 way pneumatic solenoid valve with 5 ports and 2 positions.
What does double solenoid mean?
Double solenoid means the valve uses two coils to switch between two positions. This structure can keep the last switched position and is commonly used in pneumatic circuits that need position memory.
Can the 4V120-06 control a double-acting cylinder?
Yes. A 5/2 way solenoid valve is commonly used to control double-acting cylinders, as long as the port size, flow capacity, voltage, pressure range, thread type, and installation layout match the pneumatic system.
Is this valve interchangeable with Airtac 4V120-06 Series?
It can be used as an interchangeable option when the model function, port size, thread type, voltage, connector type, pilot type, mounting layout, and working conditions match the original Airtac 4V120-06 Series valve.
What should be confirmed before ordering?
Please confirm the model, valve function, port size, thread type, coil voltage, wiring type, internal or external pilot type, working pressure, flow requirement, installation space, order quantity, and packaging requirement.
Does HOMIPNEU support OEM or distributor orders?
Yes. HOMIPNEU supports OEM and ODM orders, bulk supply, private label packaging, export cartons, and model confirmation for pneumatic valves and related air control components.
OEM & ODM Support
HOMIPNEU provides OEM and ODM support for 5/2 way solenoid valves, 5/3 way solenoid valves, 3/2 way solenoid valves, directional control valves, manual valves, pneumatic fittings, cylinders, air hoses, and complete compressed air system components. Customers can provide the model, port size, thread type, coil voltage, pilot type, pressure range, application environment, packaging requirement, and expected quantity for accurate valve selection and supply.
