Specifications
| Parameter | Description |
|---|---|

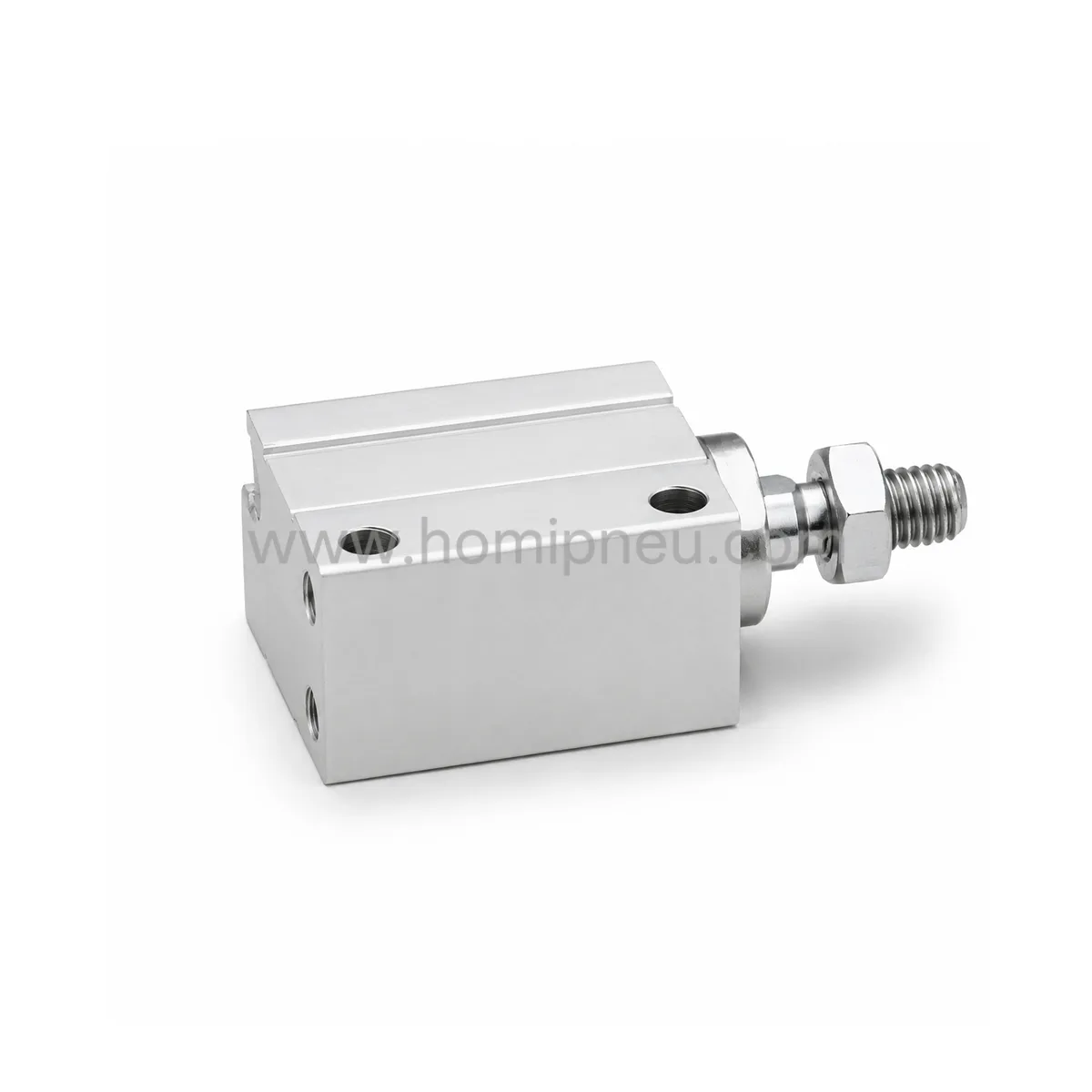

| Product Name | Mini Free Mount Compact Pneumatic Cylinder |
| Series | CDUJB Series |
| Cylinder Type | Compact Free Mount Cylinder |
| Structure Type | Miniature Free Mount Design |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.7 MPa |
| Body Material | Aluminum Alloy |
| Motion Type | Linear Reciprocating Motion |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CDUJ Series |
| Applications | Positioning / Transfer / Compact Automation Systems |

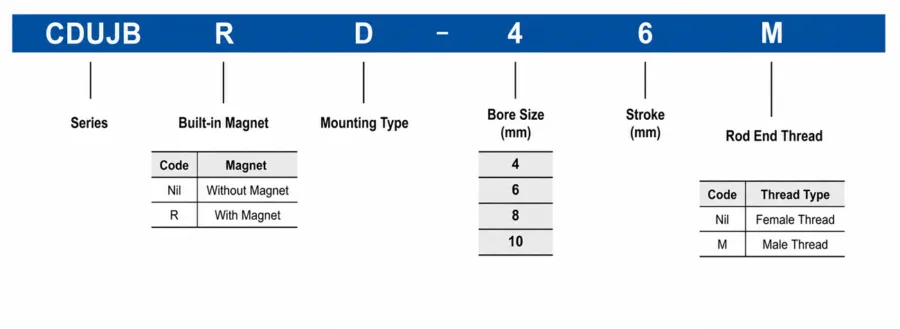

How to order
Product Features
Mini Free Mount Compact Structure
The CDUJB Series uses a miniature free mount design suitable for automation systems requiring reduced installation space.
Compact Space-Saving Design
The compact cylinder body helps simplify equipment layouts in limited installation environments.
Multi-Surface Mounting Capability
Supports installation from multiple mounting surfaces for flexible automation integration.
Stable Pneumatic Linear Motion
Provides smooth reciprocating movement for positioning, pushing, transfer, and compact automation operations.
Durable Aluminum Alloy Construction
Manufactured with lightweight aluminum alloy housing for reliable industrial automation use.
Suitable Replacement for SMC CDUJ Series
Designed for compact free mount pneumatic cylinder applications requiring replacement for SMC CDUJ Series models.
Reliable Compact Automation Performance
Suitable for repeated operation in transfer systems, fixtures, packaging equipment, and compact machinery.
Applications
Compact Automation Equipment
Used in automation systems requiring miniature pneumatic actuation and flexible installation.
Transfer and Positioning Systems
Suitable for pushing, feeding, and positioning operations in compact machinery.

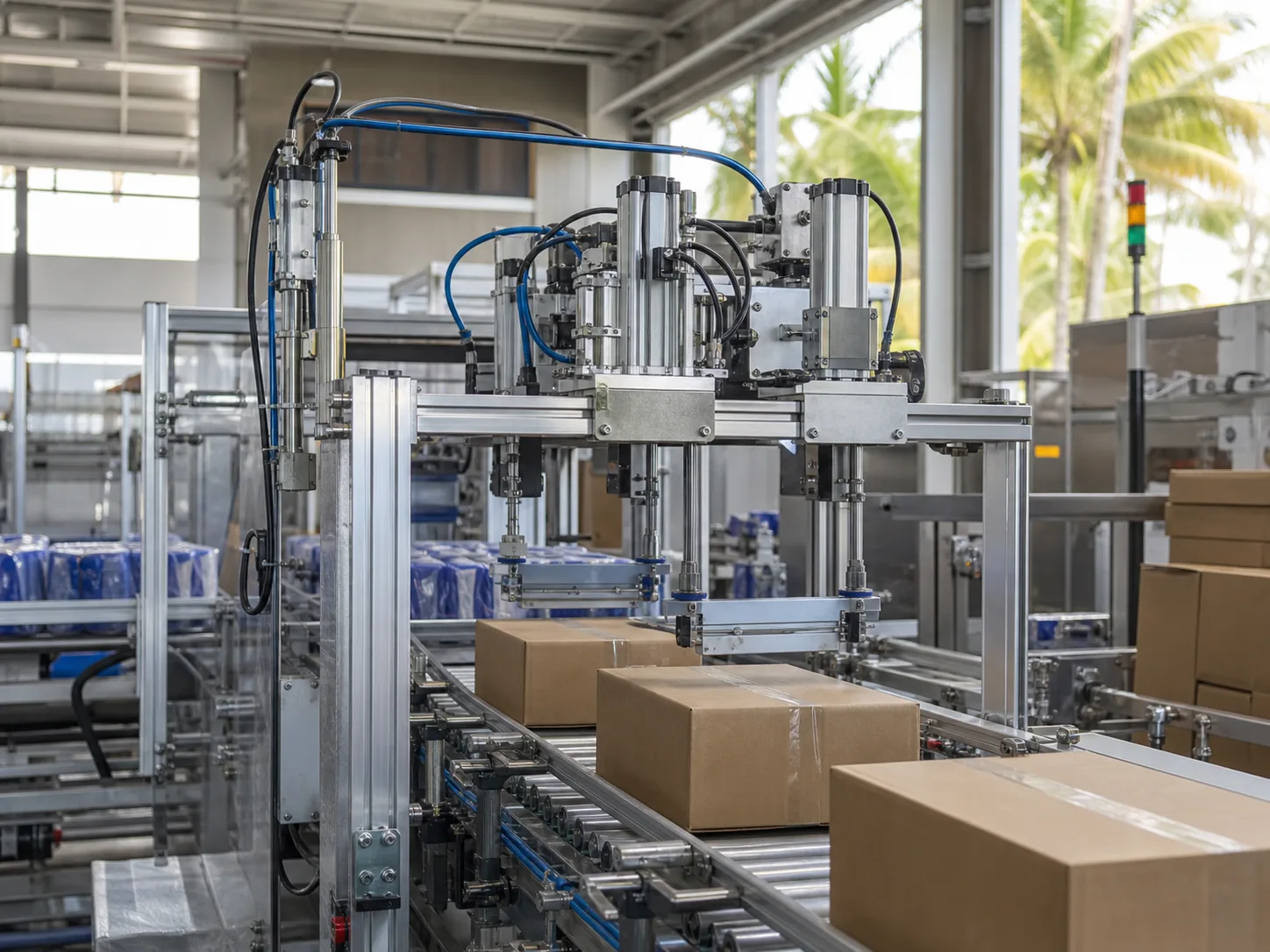

Packaging Machinery
Applied in small packaging and sorting systems requiring compact linear motion.
Fixture and Jig Equipment
Used in industrial fixtures requiring compact and stable pneumatic movement.
Assembly Automation
Suitable for part positioning, loading, alignment, and transfer operations in automated systems.
Why Choose HOMIPNEU
- Stable compact cylinder manufacturing quality
- Mini free mount structure for space-saving equipment
- Flexible multi-surface mounting capability
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for automation equipment manufacturers and system integrators
FAQ
Is the CDUJB Series interchangeable with SMC CDUJ Series?
Yes, the CDUJB Series compact free mount pneumatic cylinder is designed to be interchangeable with SMC CDUJ Series in many industrial automation applications.
What is the CDUJB compact cylinder used for?
It is commonly used for positioning, transfer, pushing, feeding, and compact automation systems requiring miniature pneumatic motion.
What is the advantage of a mini free mount cylinder?
The miniature free mount structure helps reduce installation space while supporting flexible multi-direction mounting.
Is the CDUJB Series suitable for compact machinery?
Yes, the compact miniature design is suitable for equipment with limited installation space.
Can customized cylinder specifications be supported?
Yes, customized bore sizes, stroke lengths, mounting structures, and automation solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CDUJB Series compact pneumatic cylinders, including customized bore sizes, stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial automation integrators.
