Specifications
| Parameter | Description |
|---|---|

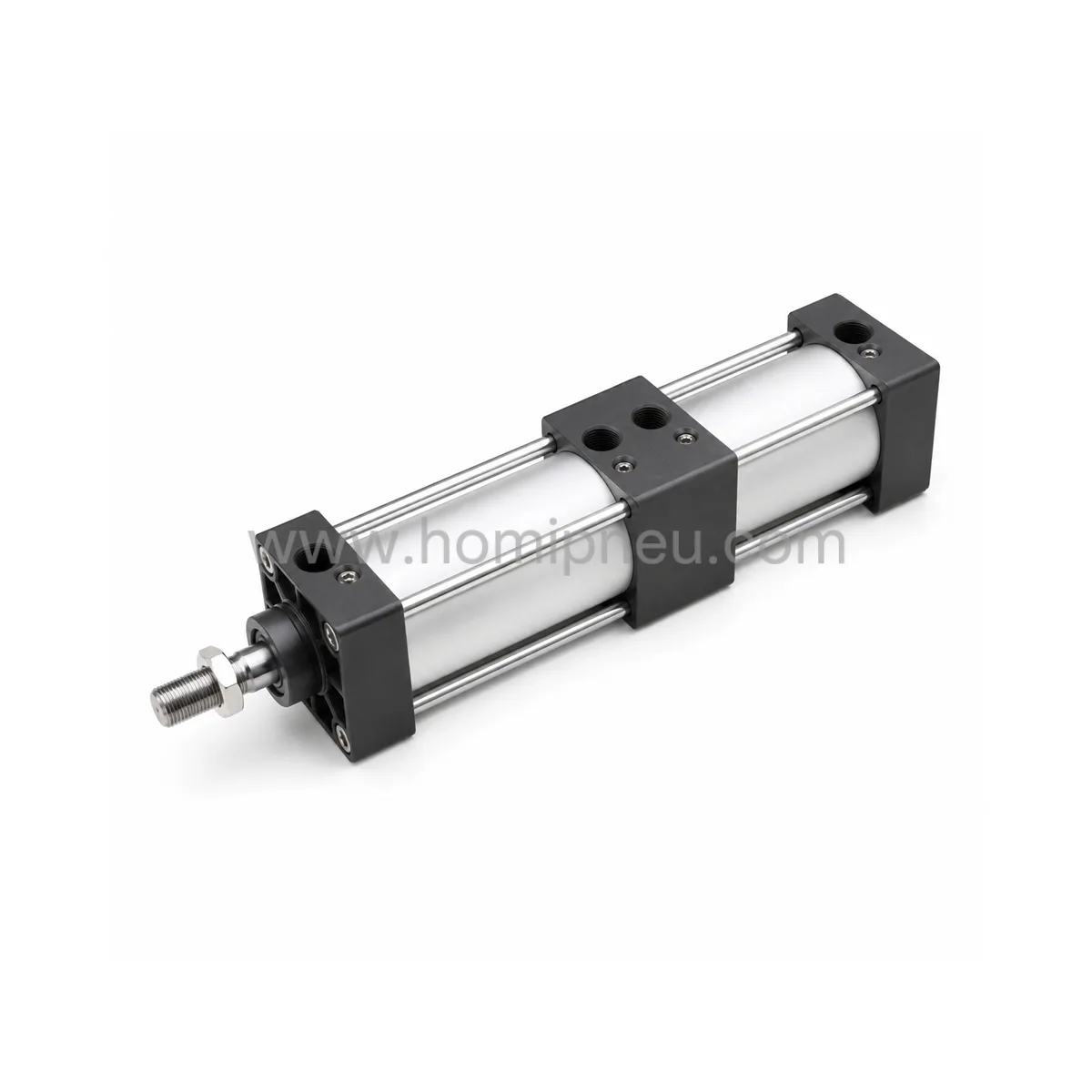

| Product Name | Multi-Position Pneumatic Cylinder |
| Series | SCT Series |
| Cylinder Type | Standard Tie Rod Air Cylinder |
| Motion Type | Multi-Position Linear Motion |
| Action Type | Double Acting |
| Structure Type | Multi-Stage Positioning Structure |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Temperature Range | -20°C~80°C |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac SCT Series |
| Applications | Positioning / Clamping / Transfer Systems |

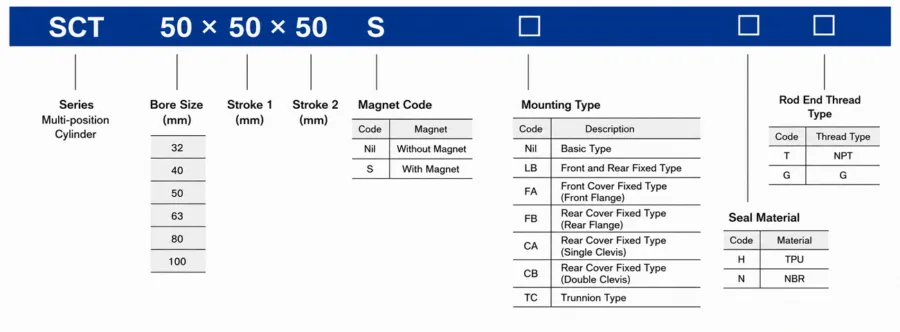

How to order
Product Features
Multi-Position Cylinder Structure
The SCT Series supports multiple stopping positions during cylinder movement for automation systems requiring staged linear positioning.
Stable Double Acting Operation
Provides smooth extension and retraction performance for transfer, pushing, positioning, and holding applications.
Tie Rod Cylinder Design
The tie rod structure improves cylinder body stability for continuous industrial automation use.
Adjustable Multi-Step Motion
Supports multi-stage movement control for equipment requiring different working positions during operation.
Durable Aluminum Alloy Construction
Manufactured with lightweight aluminum alloy housing for reliable industrial pneumatic applications.
Suitable Replacement for Airtac SCT Series
Designed for multi-position pneumatic cylinder applications requiring replacement for Airtac SCT Series models.
Reliable Automation Integration
ISO standard mounting supports installation into fixtures, transfer systems, assembly equipment, and industrial automation machinery.
Applications
Positioning Systems
Used for multi-stage positioning operations in automated machinery and production equipment.
Transfer Equipment
Suitable for pushing, feeding, and transfer applications requiring different motion positions.
Assembly Automation
Applied in assembly systems requiring staged pneumatic movement control.
Clamping and Fixture Systems
Used in fixtures and clamping mechanisms where controlled linear positioning is required.
Industrial Automation Equipment
Suitable for automated transfer lines, packaging systems, and pneumatic motion control applications.
Why Choose HOMIPNEU
- Stable multi-position cylinder manufacturing quality
- Multi-stage linear positioning support
- Tie rod structure for reliable industrial operation
- ISO standard mounting for easier machinery integration
- Support for customized bore sizes and stroke lengths
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the SCT Series interchangeable with Airtac SCT Series?
Yes, the SCT Series pneumatic cylinder is designed to be interchangeable with Airtac SCT Series in many industrial automation applications.
What is the SCT multi-position cylinder used for?
It is commonly used for staged positioning, transfer, clamping, pushing, and automation systems requiring multiple working positions.
What is the advantage of the multi-position structure?
The multi-position structure allows the cylinder rod to stop at different positions during operation for flexible automation control.
What type of cylinder structure is used?
The SCT Series uses a standard tie rod cylinder structure with multi-stage positioning capability.
Can customized bore and stroke options be supported?
Yes, customized bore sizes, stroke lengths, mounting structures, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for SCT Series pneumatic cylinders, including customized bore sizes, stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and system integrators.
