Specifications
| Parameter | Description |
|---|---|

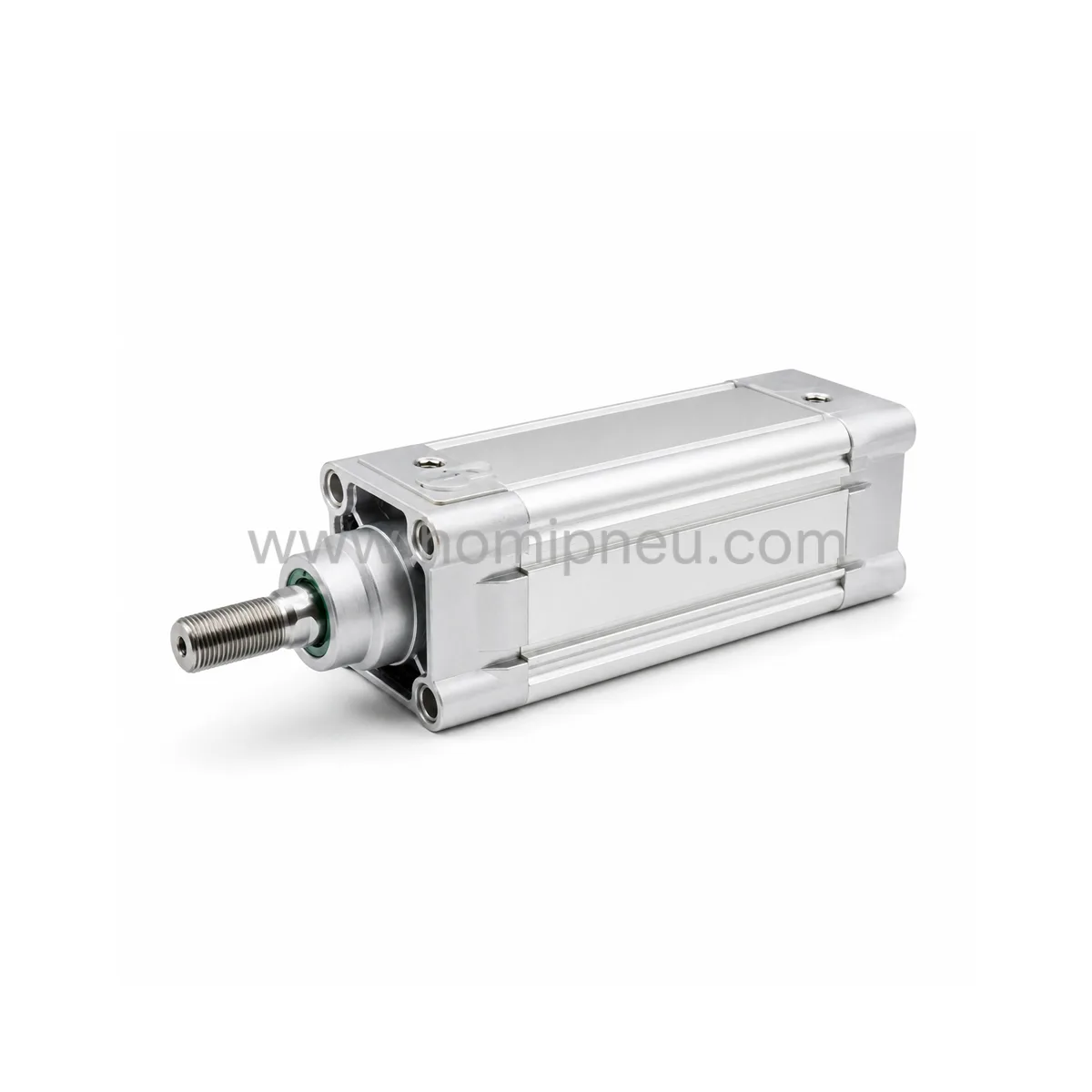

| Product Name | ISO 6431 Standard Pneumatic Cylinder |
| Series | SE Series |
| Cylinder Type | Standard Profile Pneumatic Cylinder |
| Standard | ISO 6431 |
| Structure Type | Profile Barrel Cylinder |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Bore Size Range | 32mm~125mm |
| Body Material | Aluminum Alloy |
| Motion Type | Linear Reciprocating Motion |
| Mounting Type | ISO Standard Mounting |
| Compatible with | FESTO SE Series |
| Applications | Automation / Transfer / Industrial Machinery |

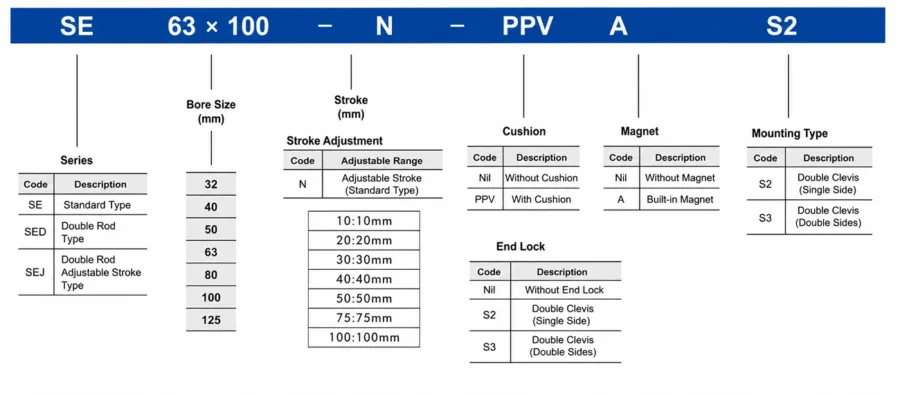

How to order
Product Features
ISO 6431 Standard Design
The SE Series is designed according to ISO 6431 standards for easier replacement and industrial equipment integration.
Profile Barrel Cylinder Structure
The profile barrel body supports stable cylinder strength and convenient sensor installation.
Reliable Double Acting Operation
Provides smooth extension and retraction movement for continuous industrial automation applications.
Wide Bore and Stroke Configurations
Supports multiple bore sizes and stroke ranges suitable for various automation systems.
Adjustable Pneumatic Cushioning
Cylinder end cushioning helps reduce impact and vibration during repeated reciprocating movement.
Suitable Replacement for FESTO SE Series
Designed for ISO standard pneumatic cylinder applications requiring replacement for FESTO SE Series models.
Flexible Automation Integration
ISO standard mounting supports installation into machinery, transfer systems, fixtures, and industrial automation equipment.
Applications
Industrial Automation Equipment
Used for pushing, pulling, lifting, feeding, and transfer operations in automated systems.
Packaging Machinery
Suitable for positioning, sorting, and transfer applications requiring stable pneumatic movement.
Material Handling Systems
Applied in transfer equipment and workpiece movement systems within industrial production lines.
Assembly Automation
Used in assembly machinery for positioning, pressing, and linear movement control.
Manufacturing Machinery
Suitable for industrial equipment requiring reliable ISO standard pneumatic actuation.
Why Choose HOMIPNEU
- Stable ISO cylinder manufacturing quality
- ISO 6431 standard dimensions for easier equipment integration
- Profile barrel structure suitable for industrial automation
- Adjustable cushioning for smoother cylinder operation
- Wide bore and stroke configuration support
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the SE Series interchangeable with FESTO SE Series?
Yes, the SE Series pneumatic cylinder is designed to be interchangeable with FESTO SE Series in many industrial automation applications.
Does the SE Series conform to ISO 6431?
Yes, the SE Series is based on ISO 6431 standard dimensions and mounting interfaces.
What is the SE pneumatic cylinder used for?
It is commonly used for linear pushing, pulling, lifting, transfer, feeding, and positioning operations in industrial automation systems.
What type of cylinder structure does the SE Series use?
The SE Series uses a profile barrel cylinder structure with adjustable pneumatic cushioning.
Can customized cylinder specifications be supported?
Yes, customized bore sizes, stroke lengths, mounting structures, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for SE Series pneumatic cylinders, including customized bore sizes, stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial automation integrators.
