Specifications
| Parameter | Description |
|---|---|

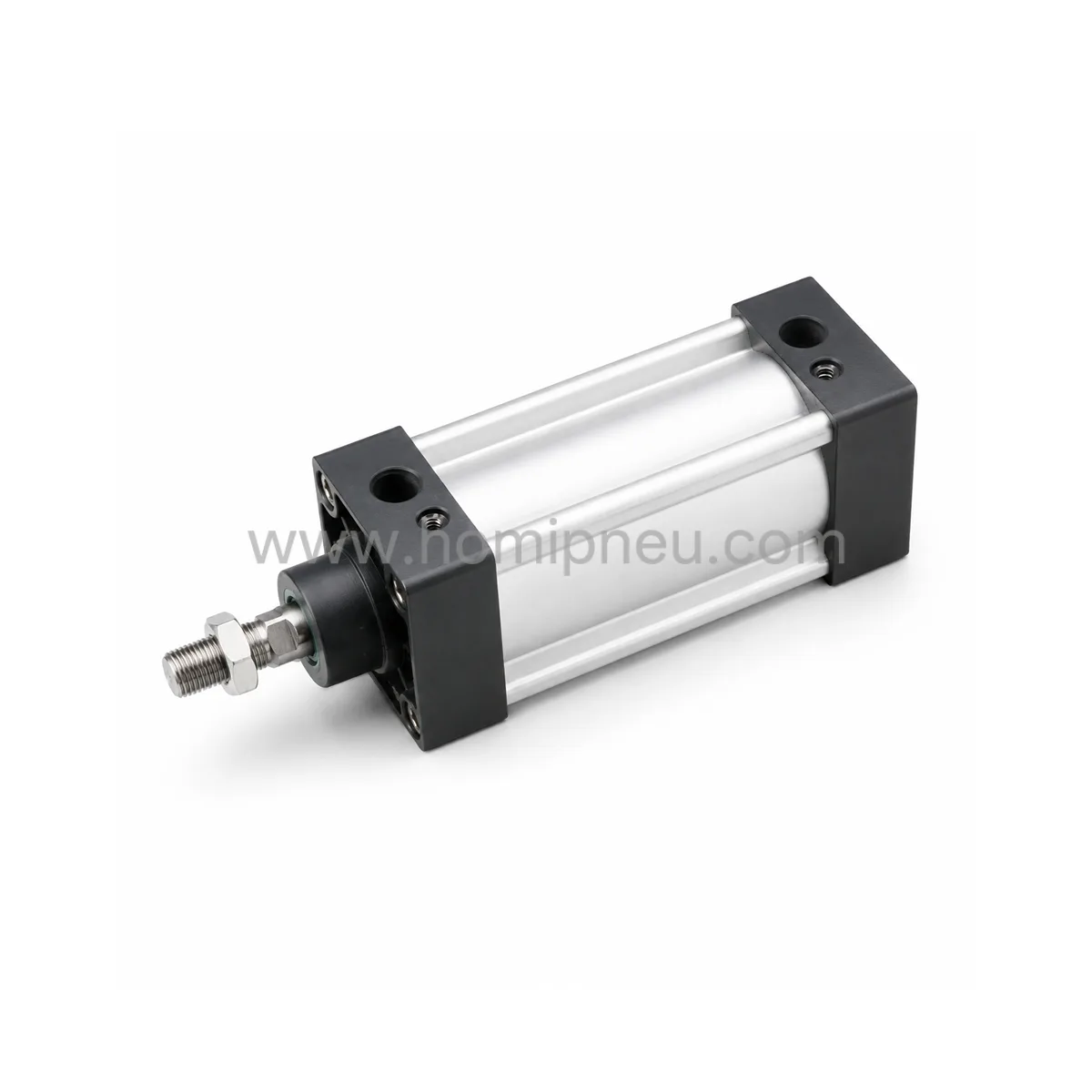

| Product Name | Standard Pneumatic Cylinder |
| Series | SI Series |
| Cylinder Type | Standard Pneumatic Cylinder |
| Structure Type | Tie Rod Cylinder |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Bore Size Range | 32mm~200mm |
| Body Material | Aluminum Alloy |
| Motion Type | Linear Reciprocating Motion |
| Mounting Type | ISO Standard Mounting |
| Applications | Automation / Transfer / Machinery Systems |

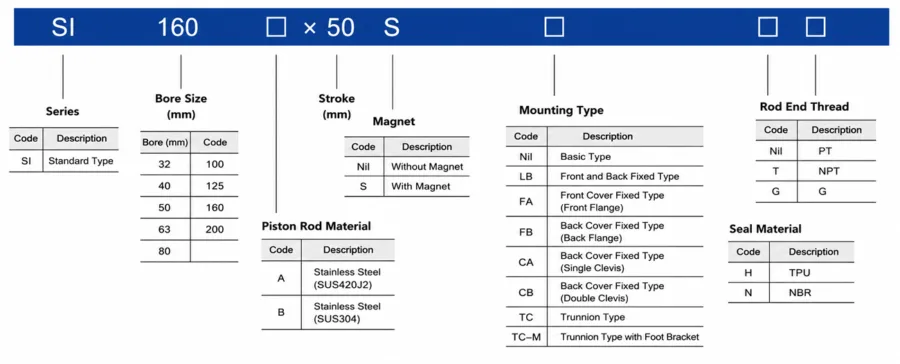

How to order
Product Features
Standard Tie Rod Cylinder Structure
The SI Series uses a standard tie rod cylinder structure suitable for industrial pneumatic linear motion applications.
Reliable Double Acting Operation
Provides smooth extension and retraction movement for continuous industrial automation cycles.
Wide Bore and Stroke Range
Supports multiple bore sizes and stroke configurations for different automation equipment requirements.
Adjustable Cushion Design
Cylinder end cushioning helps reduce impact and vibration during repeated reciprocating movement.
Durable Aluminum Alloy Construction
The aluminum alloy cylinder body supports lightweight installation and reliable industrial operation.
Stable Industrial Motion Performance
Suitable for pushing, pulling, lifting, feeding, and positioning applications in automated systems.
Flexible Equipment Integration
ISO standard mounting supports installation into machinery, transfer systems, fixtures, and automation production lines.
Applications
Industrial Automation Equipment
Used for pushing, pulling, lifting, feeding, and transfer operations in automated systems.
Packaging Machinery
Suitable for packaging, sorting, and positioning applications requiring stable pneumatic movement.
Material Handling Systems
Applied in transfer equipment and workpiece movement systems within industrial production lines.
Assembly Automation
Used in assembly machinery for positioning, pressing, and linear motion control.
Manufacturing Machinery
Suitable for industrial equipment requiring reliable pneumatic actuation.
Why Choose HOMIPNEU
- Stable standard cylinder manufacturing quality
- Reliable tie rod cylinder structure
- Wide bore and stroke configuration support
- ISO standard mounting for easier equipment integration
- Adjustable cushioning for smoother operation
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and automation integrators
FAQ
What is the SI standard pneumatic cylinder used for?
It is commonly used for linear pushing, pulling, lifting, feeding, transfer, and positioning operations in industrial automation systems.
What type of cylinder structure does the SI Series use?
The SI Series uses a standard tie rod cylinder structure for stable double acting pneumatic motion.
Does the SI Series support long stroke applications?
Yes, the SI Series supports multiple stroke configurations suitable for industrial automation equipment.
Is the SI Series suitable for industrial automation equipment?
Yes, the standard cylinder structure is suitable for packaging machinery, transfer systems, assembly automation, and manufacturing equipment.
Can customized cylinder specifications be supported?
Yes, customized bore sizes, stroke lengths, mounting structures, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for SI Series pneumatic cylinders, including customized bore sizes, stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial automation integrators.
