Specifications
| Parameter | Description |
|---|---|

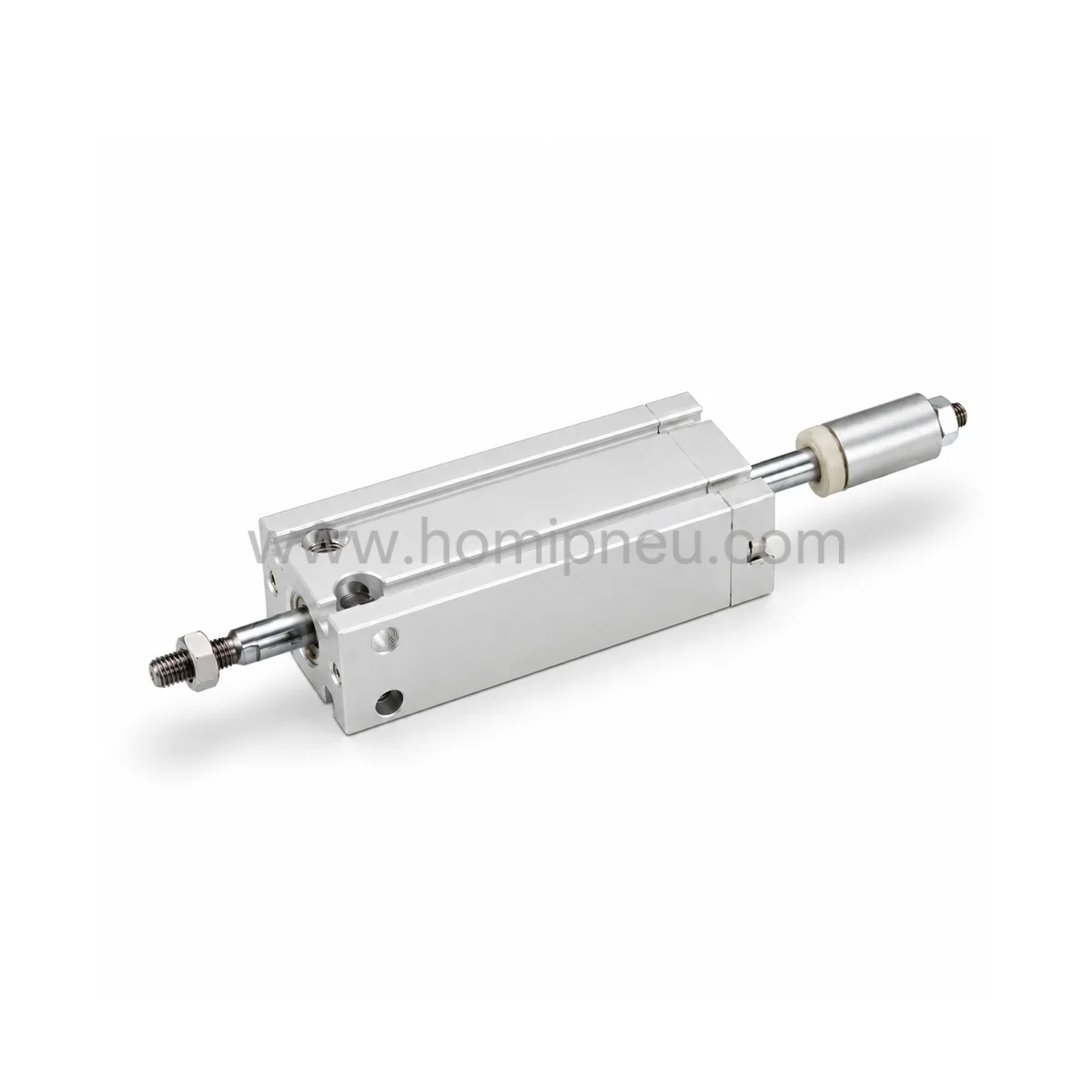

| Product Name | Multi-Position Pneumatic Cylinder |
| Series | MD Series |
| Cylinder Type | Multi-Position Cylinder |
| Motion Type | Multi-Stop Linear Motion |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.7 MPa |
| Body Material | Aluminum Alloy |
| Position Structure | Fixed Multi-Position Design |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MD Series |
| Applications | Positioning / Transfer / Clamping Systems |

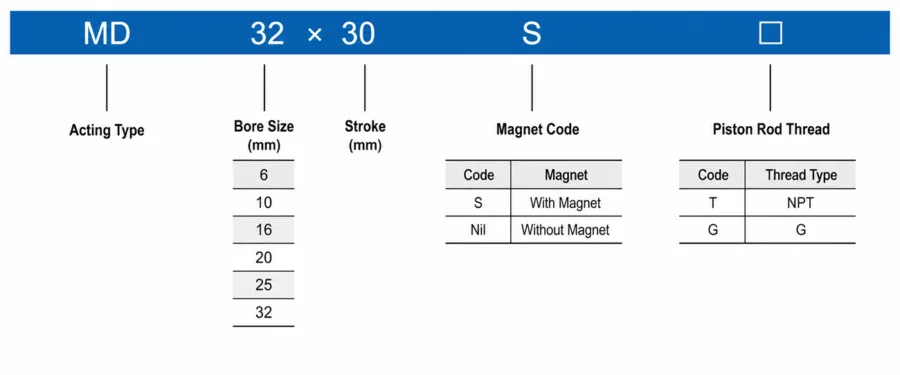

How to order
Product Features
Multi-Position Linear Motion
The MD Series supports repeatable multi-stop positioning for automation systems requiring fixed intermediate travel positions.
Stable Positioning Structure
Designed for reliable positioning control in transfer, feeding, clamping, and sorting applications.
Compact Pneumatic Design
Compact cylinder structure helps simplify automation layouts and reduce installation space.
Smooth Double Acting Operation
Provides stable extension and retraction movement for repeated industrial automation cycles.
Durable Aluminum Alloy Construction
The aluminum alloy cylinder body supports lightweight installation and long-term industrial operation.
Suitable Replacement for SMC MD Series
Designed for multi-position pneumatic cylinder applications requiring replacement for SMC MD Series models.
Flexible Automation Integration
ISO standard mounting supports installation into fixtures, transfer systems, machinery, and automated production equipment.
Applications
Transfer Positioning Systems
Used for multi-stop transfer and positioning operations in automated production lines.
Assembly Automation
Suitable for fixed-position pushing, loading, and alignment applications.
Sorting Equipment
Applied in sorting and indexing systems requiring controlled intermediate stopping positions.
Packaging Machinery
Used in packaging automation systems requiring repeatable positioning movement.
Industrial Automation Equipment
Suitable for compact multi-position pneumatic motion control applications.
Why Choose HOMIPNEU
- Stable multi-position cylinder manufacturing quality
- Repeatable fixed-position motion performance
- Compact structure for automation equipment integration
- ISO standard mounting for easier machine installation
- Support for customized stroke and positioning dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for automation equipment manufacturers and system integrators
FAQ
Is the MD Series interchangeable with SMC MD Series?
Yes, the MD Series multi-position pneumatic cylinder is designed to be interchangeable with SMC MD Series in many industrial automation applications.
What is the MD multi-position cylinder used for?
It is commonly used for fixed-position transfer, clamping, sorting, feeding, and positioning applications in automation systems.
What is the advantage of a multi-position cylinder?
A multi-position cylinder allows repeatable intermediate stopping positions during linear movement, improving positioning flexibility in automation equipment.
Is the MD Series suitable for compact machinery?
Yes, the compact structure makes it suitable for automation equipment with limited installation space.
Can customized positioning configurations be supported?
Yes, customized stroke ranges, positioning structures, mounting dimensions, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MD Series multi-position pneumatic cylinders, including customized stroke ranges, positioning structures, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial automation integrators.
