Specifications
| Parameter | Description |
|---|---|
| Product Name | Compact Pneumatic Cylinder |
| Series | CQSB Series |
| Cylinder Type | Compact Square Body Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting Single Rod |
| Working Medium | Clean Air |
| Operating Pressure | 0.05~1.0 MPa |
| Body Material | Aluminum Alloy |
| Cushion Type | Rubber Cushion / Air Cushion |
| Structure Type | Thin Compact Cylinder |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CQSB Series |
| Applications | Positioning / Transfer / Automation Systems |

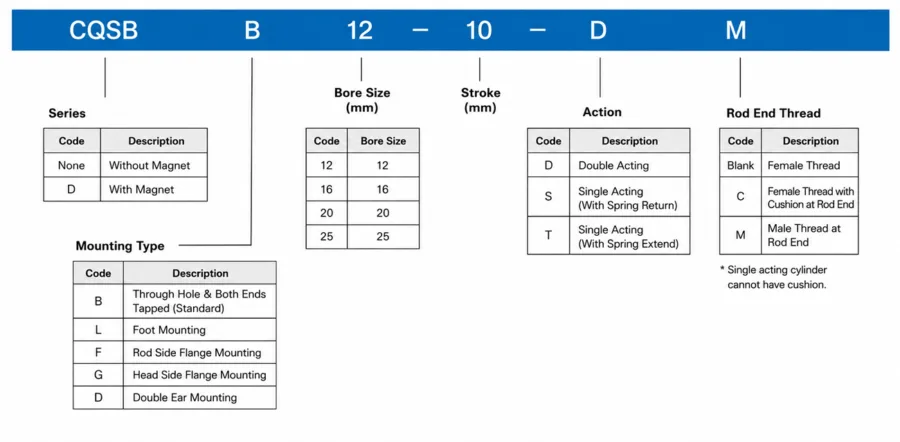

How to order
Product Features
Compact Square Body Structure
The CQSB Series adopts a compact square body design suitable for automation equipment with limited installation space.
Stable Linear Motion Performance
Designed for pushing, positioning, transfer, feeding, and compact pneumatic movement applications.
Lightweight Aluminum Alloy Construction
The aluminum alloy structure helps reduce equipment weight while maintaining reliable industrial operation.
Flexible Auto Switch Installation
Auto switches can be mounted on multiple cylinder surfaces for convenient automation sensor integration.
Reliable Double Acting Operation
Supports repeated forward and backward movement during continuous industrial automation cycles.
Suitable Replacement for SMC CQSB Series
Designed for pneumatic cylinder applications requiring replacement for SMC CQSB Series models.
Easy Equipment Integration
ISO standard mounting supports practical installation into packaging machinery, transfer systems, fixtures, and assembly equipment.
Applications
Automation Equipment
Used for positioning, pushing, feeding, and transfer movement in industrial automation systems.
Packaging Machinery
Suitable for sorting, transfer, and loading operations in packaging equipment.
Assembly Systems
Applied in component positioning and handling operations within assembly automation machinery.
Transfer and Feeding Systems
Used in loading, unloading, and workpiece transfer applications.
Compact Industrial Machinery
Suitable for pneumatic linear motion applications requiring reduced installation space.
Why Choose HOMIPNEU
- Stable compact cylinder manufacturing quality
- Thin body structure for limited installation space
- Smooth linear motion performance
- Lightweight aluminum alloy construction
- Flexible auto switch integration capability
- ISO standard mounting for easier machine installation
- Support for customized stroke and mounting dimensions
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CQSB Series interchangeable with SMC CQSB Series?
Yes, the CQSB compact pneumatic cylinder is designed to be interchangeable with SMC CQSB Series in many industrial automation applications.
What is the CQSB compact cylinder used for?
It is commonly used for pushing, positioning, feeding, transfer, and compact linear motion applications in automation equipment.
What type of structure does the CQSB Series use?
The CQSB Series uses a compact square body pneumatic cylinder structure for space-saving automation applications.
Does the CQSB Series support auto switches?
Yes, auto switches can be mounted on multiple cylinder surfaces for automation sensor integration.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CQSB compact pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and automation system integrators.
