Specifications
| Parameter | Description |
|---|---|

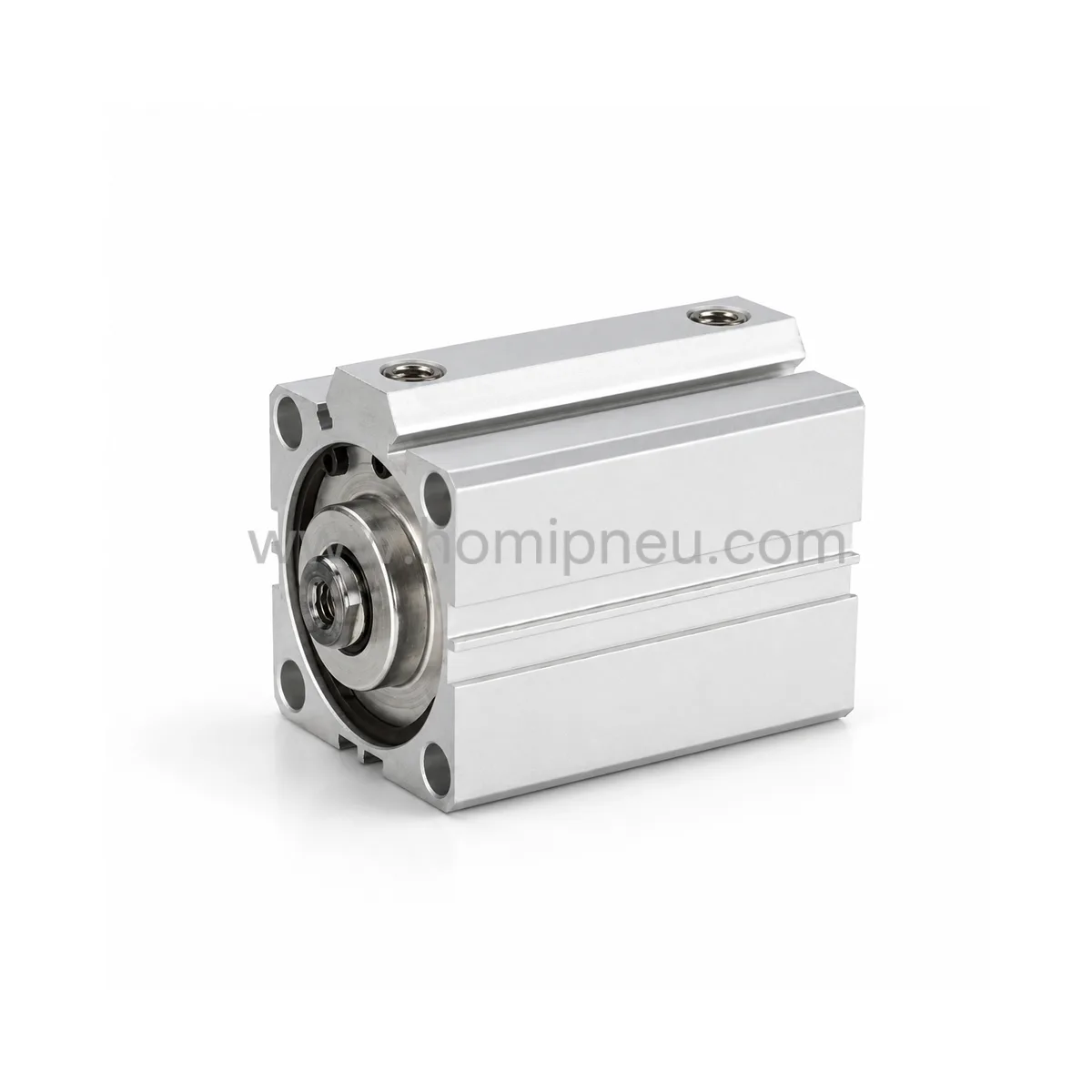

| Product Name | Compact Pneumatic Cylinder |
| Series | SDA Series |
| Cylinder Type | Thin Type Compact Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting / Single Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.9 MPa |
| Body Material | Aluminum Alloy |
| Cushion Type | Fixed Buffer |
| Structure Type | Compact Thin Cylinder |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac SDA Series |
| Applications | Positioning / Transfer / Automation Systems |

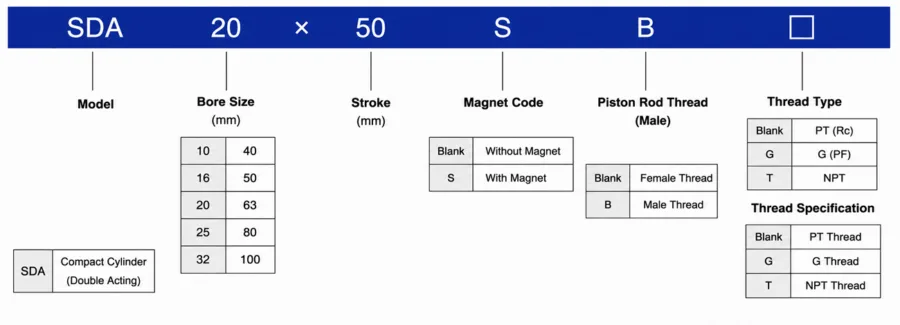

How to order
Product Features
Compact Thin Cylinder Structure
The SDA Series adopts a compact thin body structure suitable for automation equipment with limited installation space.
Stable Linear Motion Performance
Designed for pushing, positioning, transfer, and feeding movement in industrial automation systems.
Lightweight Aluminum Alloy Body
The aluminum alloy cylinder body helps reduce equipment weight while maintaining stable industrial operation.
Reliable Double Acting Operation
Supports repeated forward and backward motion during continuous automation cycles.
Integrated Magnetic Switch Slot
Magnetic switch installation slots help simplify sensor integration in automation equipment.
Suitable Replacement for Airtac SDA Series
Designed for pneumatic cylinder applications requiring replacement for Airtac SDA Series models.
Easy Equipment Integration
ISO standard mounting supports practical installation into packaging machinery, transfer systems, fixtures, and assembly equipment.
Applications
Automation Equipment
Used for pushing, positioning, feeding, and transfer movement in industrial automation systems.
Packaging Machinery
Suitable for sorting, transfer, and loading operations in packaging equipment.
Assembly Systems
Applied in component positioning and handling operations within assembly automation machinery.
Transfer and Feeding Systems
Used in loading, unloading, and workpiece transfer applications.
Compact Industrial Machinery
Suitable for pneumatic linear motion applications requiring reduced installation space.
Why Choose HOMIPNEU
- Stable compact cylinder manufacturing quality
- Thin body structure for limited installation space
- Smooth linear motion performance
- Lightweight aluminum alloy construction
- Integrated sensor slot design for automation integration
- ISO standard mounting for easier machine installation
- Support for customized stroke and mounting dimensions
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the SDA Series interchangeable with Airtac SDA Series?
Yes, the SDA compact pneumatic cylinder is designed to be interchangeable with Airtac SDA Series in many industrial automation applications.
What is the SDA compact cylinder used for?
It is commonly used for pushing, positioning, feeding, transfer, and compact linear motion applications in automation equipment.
What type of structure does the SDA Series use?
The SDA Series uses a compact thin body pneumatic cylinder structure for space-saving automation applications.
Does the SDA Series support sensor installation?
Yes, magnetic switch slots are available for convenient sensor integration.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for SDA compact pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and automation system integrators.
