Specifications
| Parameter | Description |
|---|---|
| Product Name | Compact Pneumatic Cylinder |
| Series | CQ2B Series |
| Cylinder Type | Thin Type Compact Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting / Single Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.05~1.0 MPa |
| Body Material | Aluminum Alloy |
| Cushion Type | Rubber Cushion / Air Cushion |
| Structure Type | Compact Thin Cylinder |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CQ2B Series |
| Applications | Positioning / Transfer / Automation Systems |

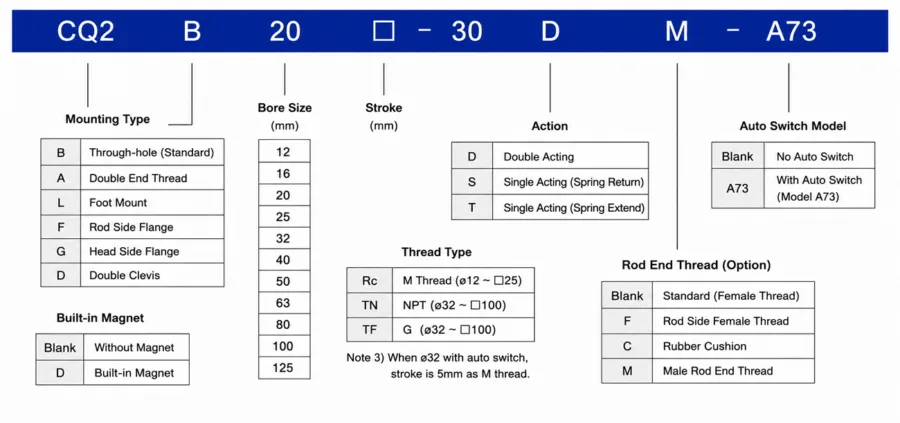

How to order
Product Features
Compact Space-Saving Structure
The CQ2B Series adopts a compact thin body structure suitable for automation equipment with limited installation space.
Stable Linear Motion Performance
Designed for pushing, positioning, transfer, feeding, and compact pneumatic movement applications.
Lightweight Aluminum Alloy Body
The aluminum alloy structure helps reduce equipment weight while maintaining stable industrial operation.
Flexible Mounting Configuration
Supports multi-direction installation and practical integration into automation systems and machinery.
Reliable Double Acting Operation
Supports repeated forward and backward motion during continuous industrial automation cycles.
Suitable Replacement for SMC CQ2B Series
Designed for pneumatic cylinder applications requiring replacement for SMC CQ2B Series models.
Integrated Auto Switch Installation
Supports magnetic switch mounting on multiple cylinder surfaces for automation sensor integration.
Applications
Automation Equipment
Used for positioning, pushing, feeding, and transfer movement in industrial automation systems.
Packaging Machinery
Suitable for sorting, transfer, and loading operations in packaging equipment.
Assembly Systems
Applied in component positioning and handling operations within assembly automation machinery.
Transfer and Feeding Systems
Used in loading, unloading, and workpiece transfer applications.
Compact Industrial Machinery
Suitable for pneumatic linear motion applications requiring reduced installation space.
Why Choose HOMIPNEU
- Stable compact cylinder manufacturing quality
- Thin body structure for limited installation space
- Smooth linear motion performance
- Lightweight aluminum alloy construction
- Flexible sensor integration capability
- ISO standard mounting for easier machine installation
- Support for customized stroke and mounting dimensions
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CQ2B Series interchangeable with SMC CQ2B Series?
Yes, the CQ2B compact pneumatic cylinder is designed to be interchangeable with SMC CQ2B Series in many industrial automation applications.
What is the CQ2B compact cylinder used for?
It is commonly used for pushing, positioning, feeding, transfer, and compact linear motion applications in automation equipment.
What type of structure does the CQ2B Series use?
The CQ2B Series uses a compact thin body pneumatic cylinder structure for space-saving automation applications.
Does the CQ2B Series support auto switches?
Yes, magnetic auto switches can be mounted on multiple cylinder surfaces for automation sensor integration.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CQ2B compact pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and automation system integrators.
