Specifications
| Parameter | Description |
|---|---|

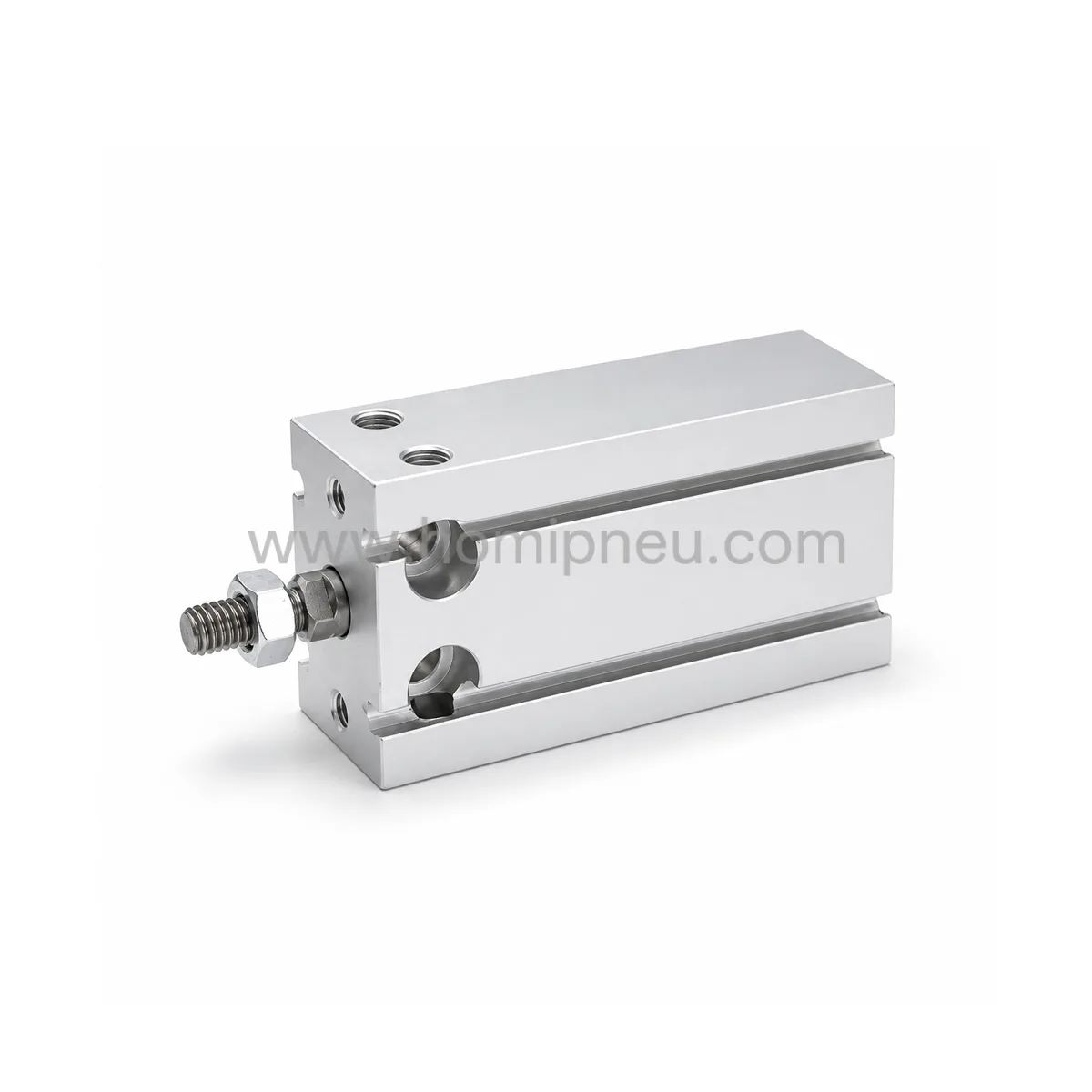

| Product Name | Free Mount Pneumatic Cylinder |
| Series | CDU Series |
| Cylinder Type | Compact Free Mount Cylinder |
| Mounting Structure | Multi-Surface Direct Mounting |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.05~0.7 MPa |
| Body Material | Aluminum Alloy |
| Motion Type | Linear Reciprocating Motion |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CDU Series |
| Applications | Positioning / Transfer / Compact Automation Systems |

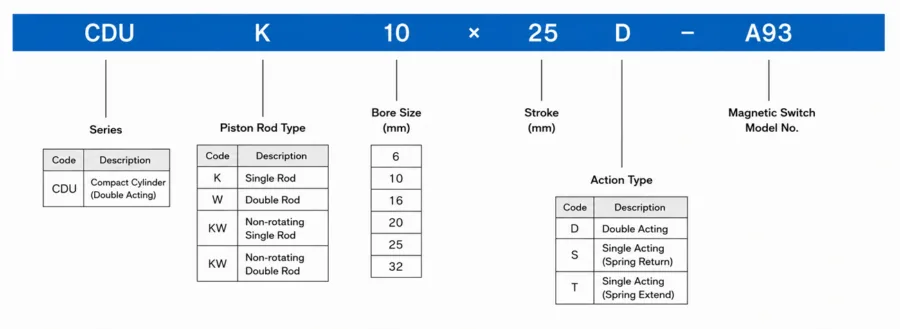

How to order
Product Features
Free Mount Compact Structure
The CDU Series uses a compact square body design that supports direct installation from multiple mounting surfaces.
Space-Saving Cylinder Design
Designed for automation equipment requiring reduced installation space and flexible mounting positions.
Multi-Surface Installation Capability
Supports mounting from several directions for easier integration into compact machinery and transfer systems.
Stable Pneumatic Linear Motion
Provides smooth and repeatable reciprocating movement for industrial automation applications.
Durable Aluminum Alloy Construction
The aluminum alloy body supports lightweight installation and reliable operation in continuous production environments.
Suitable Replacement for SMC CDU Series
Designed for compact free mount pneumatic cylinder applications requiring replacement for SMC CDU Series models.
Flexible Automation Integration
ISO standard mounting helps simplify installation into fixtures, robotic units, assembly systems, and compact transfer equipment.
Applications
Compact Automation Equipment
Used in machinery requiring space-saving pneumatic actuation and flexible mounting configurations.
Transfer and Feeding Systems
Suitable for pushing, feeding, positioning, and transfer operations in automated production lines.
Assembly Automation
Applied in part positioning, loading, and alignment systems within compact assembly equipment.
Fixture and Jig Systems
Used in industrial fixtures requiring compact linear motion and multiple mounting options.
Packaging Machinery
Suitable for compact packaging equipment requiring reliable pneumatic movement control.
Why Choose HOMIPNEU
- Stable compact cylinder manufacturing quality
- Multi-surface mounting for flexible installation
- Compact structure suitable for limited equipment space
- ISO standard mounting for easier machinery integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CDU Series interchangeable with SMC CDU Series?
Yes, the CDU Series free mount pneumatic cylinder is designed to be interchangeable with SMC CDU Series in many industrial automation applications.
What is the CDU free mount cylinder used for?
It is commonly used for positioning, transfer, pushing, feeding, and compact automation systems requiring flexible installation.
What is the advantage of a free mount cylinder?
The free mount structure allows direct installation from multiple mounting surfaces, helping reduce equipment space requirements.
Is the CDU Series suitable for compact machinery?
Yes, the compact square body structure is designed for automation equipment with limited installation space.
Can customized cylinder specifications be supported?
Yes, customized bore sizes, stroke lengths, mounting dimensions, and automation solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CDU Series free mount pneumatic cylinders, including customized bore sizes, stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and system integrators.
