Specifications
| Parameter | Description |
|---|---|
| Product Name | Compact Plate Pneumatic Cylinder |
| Series | MUB Series |
| Alternative Model | MU Series |
| Cylinder Type | Plate Air Cylinder |
| Motion Type | Linear Motion |
| Action Type | Double Acting |
| Rod Type | Single Rod |
| Structure Type | Oval Piston Compact Structure |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.7 MPa |
| Body Material | Aluminum Alloy |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MU Series |
| Applications | Transfer / Positioning / Compact Automation Systems |

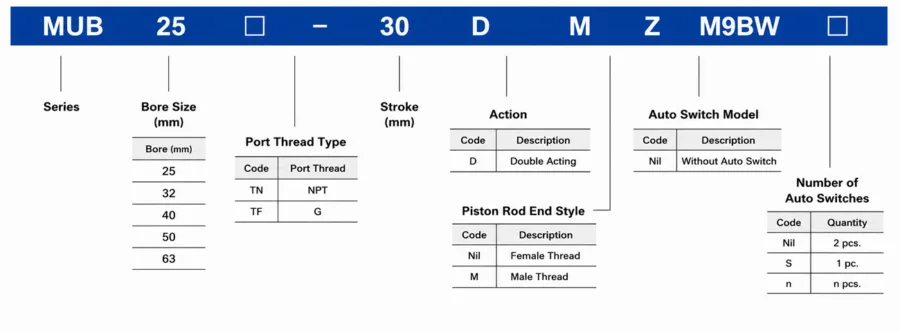

How to order
Product Features
Compact Plate Cylinder Design
The MUB Series uses a slim plate cylinder structure with an oval piston design to help reduce installation space in automation equipment.
Space-Saving Linear Motion
Suitable for compact machinery requiring stable pneumatic linear movement in limited mounting areas.
Stable Double Acting Operation
Provides smooth extension and retraction performance for transfer, pushing, and positioning applications.
Multi-Direction Mounting Structure
The compact body supports flexible installation into automation systems and industrial machinery.
Durable Aluminum Alloy Construction
Manufactured with lightweight aluminum alloy housing for reliable continuous industrial operation.
Suitable Replacement for SMC MU Series
Designed for compact pneumatic cylinder applications requiring replacement for SMC MU Series models.
Reliable Automation Integration
ISO standard mounting supports practical integration into fixtures, transfer systems, assembly equipment, and automated production lines.
Applications
Compact Automation Equipment
Used in automation systems requiring stable linear motion in limited installation spaces.
Transfer and Feeding Systems
Suitable for workpiece transfer, feeding, and pushing applications.
Assembly Machinery
Applied in positioning and movement tasks within automated assembly equipment.
Fixture and Clamping Systems
Used in industrial fixtures requiring compact pneumatic actuation.
Packaging and Material Handling
Suitable for compact transfer and positioning functions in packaging machinery and production lines.
Why Choose HOMIPNEU
- Stable compact cylinder manufacturing quality
- Slim plate structure for space-saving installation
- Smooth linear motion performance
- ISO standard mounting for easier machinery integration
- Support for customized bore sizes and stroke lengths
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the MUB Series interchangeable with SMC MU Series?
Yes, the MUB Series compact plate pneumatic cylinder is designed to be interchangeable with SMC MU Series in many industrial automation applications.
What is the MUB plate cylinder used for?
It is commonly used for transfer, positioning, pushing, feeding, and compact automation systems requiring limited installation space.
What is the advantage of the oval piston structure?
The oval piston structure helps reduce cylinder thickness and supports compact equipment design.
Does the MUB Series support multi-direction mounting?
Yes, the plate cylinder structure supports flexible mounting directions for easier automation integration.
Can customized stroke and mounting solutions be supported?
Yes, customized stroke lengths, mounting structures, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MUB Series compact plate pneumatic cylinders, including customized bore sizes, stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and automation system integrators.
