Specifications
| Parameter | Description |
|---|---|
| Product Name | End Lock Pneumatic Cylinder |
| Series | MDBB Series |
| Cylinder Type | Standard Tie Rod Air Cylinder |
| Action Type | Double Acting |
| Rod Type | Single Rod |
| Lock Type | End Lock Structure |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MDBB Series |
| Applications | Clamping / Positioning / Holding / Transfer Systems |

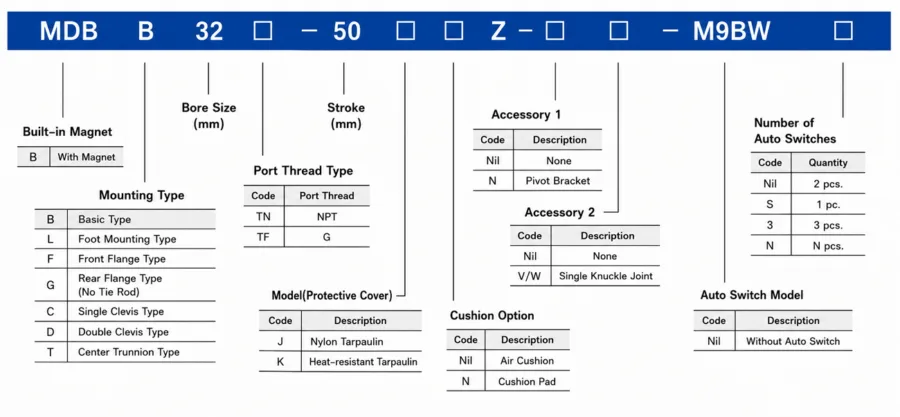

How to order
Product Features
End Lock Cylinder Structure
The MDBB Series is designed with an end lock function to help maintain cylinder position in automation systems requiring holding support.
Standard Tie Rod Design
The tie rod cylinder structure provides strong body stability for industrial pneumatic applications.
Double Acting Linear Motion
Supports stable extension and retraction movement for positioning, transfer, and clamping operations.
Reliable Holding Performance
Suitable for equipment where workpiece position or actuator stroke needs to be maintained during operation.
Durable Aluminum Alloy Body
Manufactured with aluminum alloy components for reliable operation in continuous industrial environments.
Suitable Replacement for SMC MDBB Series
Designed for pneumatic cylinder applications requiring replacement for SMC MDBB Series models.
Easy Equipment Integration
ISO standard mounting supports installation into machinery, fixtures, automated production lines, and pneumatic control systems.
Applications
Clamping Equipment
Used for workpiece clamping and holding in automated machinery.
Positioning Systems
Suitable for linear positioning applications where stroke holding is required.
Transfer Equipment
Applied in loading, unloading, pushing, and transfer operations.
Assembly Automation
Used in assembly lines requiring stable pneumatic actuation and position control.
Industrial Machinery
Suitable for automation equipment, fixtures, and pneumatic drive systems.
Why Choose HOMIPNEU
- Stable standard cylinder manufacturing quality
- End lock structure for position holding applications
- ISO standard mounting for easier machine integration
- Support for customized bore, stroke, and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for automation equipment manufacturers and pneumatic distributors
FAQ
Is the MDBB Series interchangeable with SMC MDBB Series?
Yes, the MDBB Series pneumatic cylinder is designed to be interchangeable with SMC MDBB Series in many industrial automation applications.
What is the MDBB pneumatic cylinder used for?
It is used for clamping, holding, positioning, transfer, pushing, and linear actuation in pneumatic automation systems.
What is the function of the end lock structure?
The end lock structure helps maintain cylinder position when holding support is required during equipment operation.
Is the MDBB Series a double acting cylinder?
Yes, it is commonly used as a double acting single rod pneumatic cylinder for industrial automation.
Can customized bore and stroke sizes be supplied?
Yes, customized bore sizes, stroke lengths, mounting accessories, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MDBB Series pneumatic cylinders, including customized bore sizes, stroke lengths, mounting accessories, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and system integrators.
