Specifications
| Parameter | Description |
|---|---|
| Product Name | Rotary Clamp Cylinder |
| Series | MKB Series |
| Cylinder Type | Pneumatic Rotary Clamp Cylinder |
| Motion Type | Swing Rotation + Linear Clamp Stroke |
| Rotation Angle | 90° |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~0.7 MPa |
| Body Material | Aluminum Alloy |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MKB Series |
| Applications | Welding Fixtures / Assembly / Holding Systems |

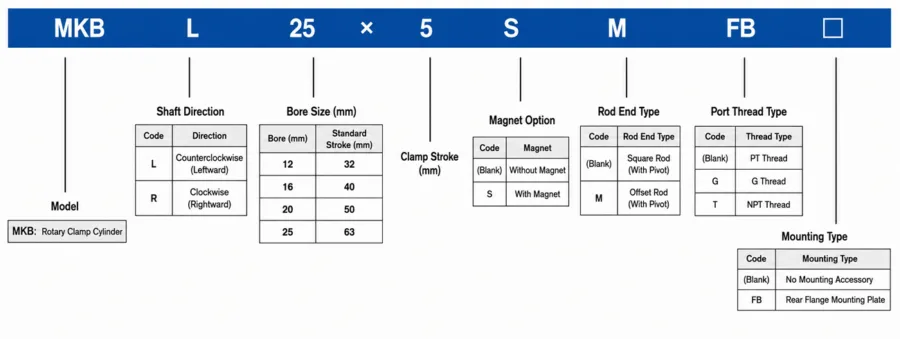

How to order
Product Features
Rotary Clamping Motion
The MKB Series combines swing rotation and linear clamping stroke, making it suitable for workpiece holding in automated fixtures.
Compact Clamp Cylinder Design
The compact body structure helps reduce installation space in welding fixtures, assembly equipment, and transfer systems.
Stable Workpiece Holding
Provides reliable pneumatic clamping force for repeated positioning and holding operations in industrial automation.
Durable Aluminum Alloy Body
Manufactured with aluminum alloy housing for lightweight installation and long-term industrial use.
ISO Standard Mounting
ISO standard mounting supports easier integration into fixtures, machinery, and automated clamping systems.
Suitable Replacement for SMC MKB Series
Designed for pneumatic rotary clamping applications requiring replacement for SMC MKB Series models.
Automation Fixture Integration
Suitable for positioning, holding, welding, loading, and assembly processes where compact pneumatic clamping is required.
Applications
Welding Fixtures
Used for holding workpieces securely during welding and positioning operations.
Assembly Automation
Suitable for clamping parts during automated assembly, pressing, inspection, and transfer processes.
Machine Tool Loading
Applied in loading and unloading systems where compact rotary clamping is required.
Positioning Fixtures
Used in jigs and fixtures requiring repeatable pneumatic holding force.
Industrial Automation Equipment
Suitable for automated production lines requiring stable workpiece clamping and release movement.
Why Choose HOMIPNEU
- Stable rotary clamp cylinder manufacturing quality
- Compact structure for fixture and machinery integration
- ISO standard mounting for practical installation
- Smooth swing rotation and clamping movement
- Support for customized clamp arms and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for automation equipment manufacturers and fixture builders
FAQ
Is the MKB Series interchangeable with SMC MKB Series?
Yes, the MKB Series rotary clamp cylinder is designed to be interchangeable with SMC MKB Series in many fixture and automation applications.
What is the MKB rotary clamp cylinder used for?
It is used for welding fixtures, assembly automation, workpiece holding, positioning systems, and machine loading equipment.
What motion does the MKB Series provide?
It provides rotary swing motion combined with a linear clamping stroke for compact pneumatic holding applications.
What mounting type is used?
The MKB Series uses ISO standard mounting for easier integration into industrial fixtures and automated equipment.
Can customized clamp arms be supplied?
Yes, customized clamp arms, mounting structures, and application-specific pneumatic clamping solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MKB Series rotary clamp cylinders, including customized clamp arms, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and fixture builders.
