Specifications
| Parameter | Description |
|---|---|

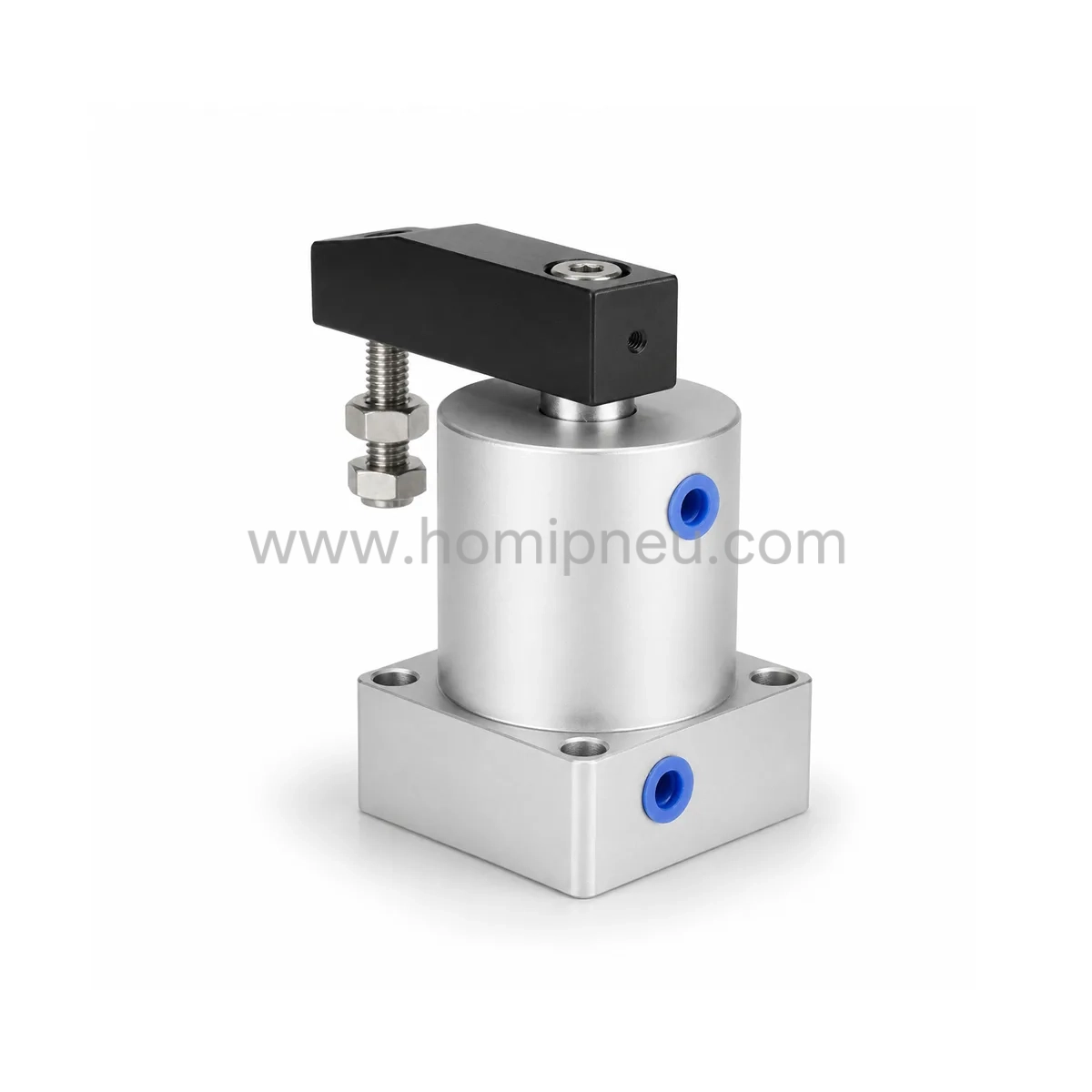

| Product Name | Rotary Clamp Cylinder |
| Series | ACK Series |
| Cylinder Type | Pneumatic Rotary Clamp Cylinder |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~0.95 MPa |
| Rotation Angle | 90° / 180° |
| Rotation Direction | Left / Right Rotation |
| Body Material | Aluminum Alloy |
| Structure Type | Rotary Swing Clamp Structure |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac ACK Series |
| Applications | Fixture Clamping / Machining / Welding / Assembly |

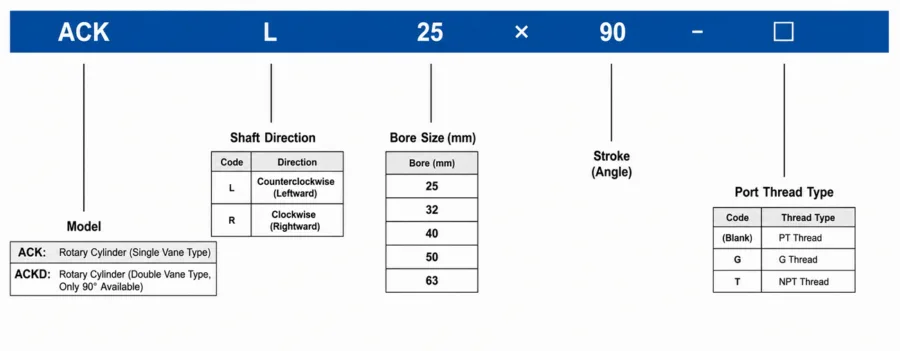

How to order
Product Features
Rotary Swing and Clamping Motion
The ACK Series combines rotary swing movement with downward clamping action, allowing the clamp arm to move away during loading and return for secure workpiece holding.
90° and 180° Rotation Options
Available with multiple rotary angle configurations to support different fixture layouts and automation requirements.
Compact Fixture-Friendly Structure
The compact body design helps simplify installation into machining fixtures, welding jigs, and automated production equipment.
Stable Clamping Performance
Provides repeatable pneumatic clamping force for stable workpiece positioning in industrial automation systems.
High Guide Accuracy Structure
The internal guide slot structure supports stable movement and improved clamping precision during repeated operations.
Suitable Replacement for Airtac ACK Series
Designed for fixture clamping applications requiring replacement for Airtac ACK Series models.
Durable Aluminum Alloy Body
The lightweight aluminum alloy housing supports reliable long-term industrial operation and reduced fixture weight.
Applications
Machining Fixtures
Used for workpiece holding in CNC machining, drilling, milling, and tapping operations.
Welding Automation
Suitable for positioning and clamping workpieces in welding fixture systems.
Assembly Equipment
Applied in assembly automation systems requiring stable workpiece positioning before fastening or processing.
Inspection Fixtures
Used for holding and positioning parts during inspection and measurement processes.
Automated Production Lines
Suitable for fixture automation systems requiring compact pneumatic clamping movement.
Why Choose HOMIPNEU
- Stable rotary clamp cylinder manufacturing quality
- Compact structure for fixture automation integration
- ISO standard mounting for easier installation
- 90° and 180° rotary angle configurations available
- Support for customized clamp arms and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the ACK Series interchangeable with Airtac ACK Series?
Yes, the ACK rotary clamp cylinder is designed to be interchangeable with Airtac ACK Series in many industrial automation applications.
What is the ACK rotary clamp cylinder used for?
It is commonly used for machining fixtures, welding fixtures, assembly equipment, inspection stations, and automated production systems.
What rotary angles are available?
The ACK Series commonly supports 90° and 180° rotary angle configurations.
Can left and right rotation types be selected?
Yes, both left rotation and right rotation configurations are available depending on fixture requirements.
Can customized clamp arm configurations be supported?
Yes, customized clamp arm structures, mounting dimensions, and fixture integration solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for ACK rotary clamp cylinders, including customized clamp arms, mounting dimensions, logo branding, packaging solutions, and pneumatic automation support for distributors, machinery manufacturers, and fixture automation integrators.
