Specifications
| Parameter | Description |
|---|---|

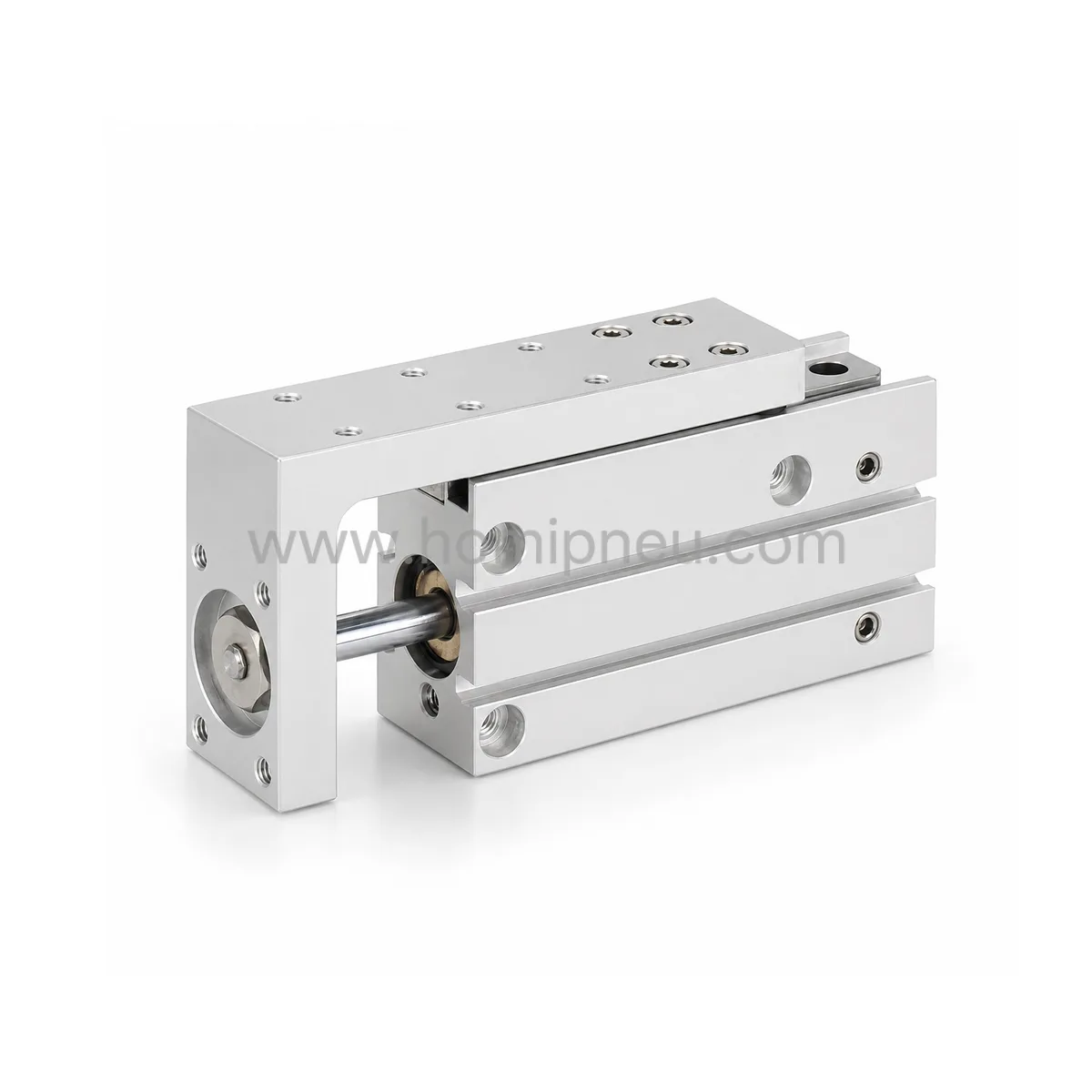

| Product Name | Compact Slide Table Cylinder |
| Series | MXH Series |
| Cylinder Type | Pneumatic Slide Table Cylinder |
| Motion Type | Linear Motion |
| Guide Type | Precision Linear Guide |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~0.7 MPa |
| Body Material | Aluminum Alloy |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MXH Series |
| Applications | Assembly / Transfer / Positioning Systems |

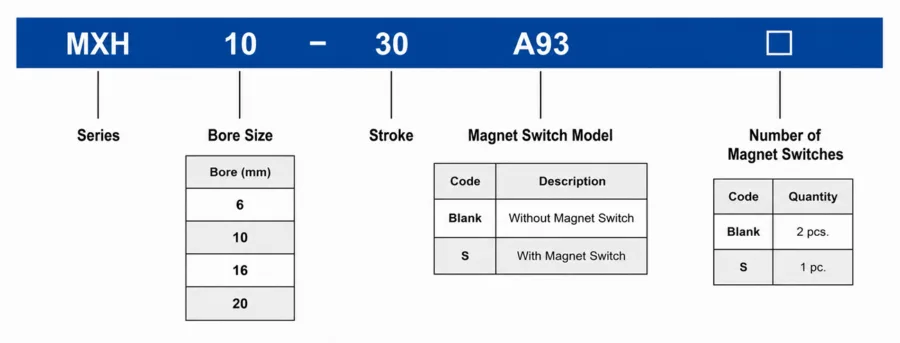

How to order
Product Features
Compact Slide Table Structure
The MXH Series integrates a pneumatic cylinder and precision guide structure into a compact body for space-saving automation layouts.
Precision Linear Motion
Designed for stable forward and backward movement in positioning, transfer, and assembly equipment.
High Rigidity Guide Design
The guide table structure supports improved load handling and smooth linear operation in repeated automation cycles.
Durable Aluminum Alloy Body
The aluminum alloy housing provides lightweight strength for continuous industrial use.
Easy Equipment Integration
ISO standard mounting supports practical installation into fixtures, machinery, and automated production systems.
Suitable Replacement for SMC MXH Series
Designed for pneumatic slide table applications requiring replacement for SMC MXH Series models.
Reliable Positioning Performance
Suitable for repeated pushing, transferring, clamping assistance, and precision positioning operations.
Applications
Assembly Automation
Used for part positioning, pushing, feeding, and transfer in automated assembly equipment.
Pick-and-Place Support Systems
Suitable for short-stroke linear motion in compact automation mechanisms.
Packaging Machinery
Applied in positioning, sorting, and transfer stations requiring stable slide movement.
Fixture and Jig Systems
Used in industrial fixtures where compact guided linear motion is required.
Material Transfer Equipment
Suitable for loading, unloading, and workpiece movement in production lines.
Why Choose HOMIPNEU
- Stable compact slide cylinder manufacturing quality
- Precision guide structure for reliable linear motion
- Compact body design for limited installation space
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for automation equipment manufacturers and system integrators
FAQ
Is the MXH Series interchangeable with SMC MXH Series?
Yes, the MXH Series compact slide table cylinder is designed to be interchangeable with SMC MXH Series in many industrial automation applications.
What is the MXH compact slide table cylinder used for?
It is used for linear positioning, transfer, pushing, feeding, assembly automation, and compact guided motion systems.
What type of motion does the MXH Series provide?
The MXH Series provides guided linear motion through a compact pneumatic slide table structure.
Is it suitable for precision automation equipment?
Yes, the compact guide table design makes it suitable for positioning and transfer tasks in automated equipment.
Can customized stroke or mounting options be supplied?
Yes, customized stroke lengths, mounting dimensions, and application-specific slide table solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MXH Series compact slide table cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and system integrators.
