All Stainless Steel Pneumatic Quick-Clamp Angle Seat Valve

Note: Quick connectors can be customized according to customer requirements.

Product Features

All Stainless Steel Construction
The valve combines a stainless steel pneumatic actuator with a stainless steel angle seat body. The all-metal external construction is suitable for process equipment, washdown environments, humid installations, and applications where a plastic actuator housing is not preferred.

Pneumatic 2/2 Way On-Off Control
A pneumatic piston actuator opens or closes the two-port process passage. This structure is suitable for repeated automatic switching of compatible liquids, gases, and steam in industrial equipment.

Quick-Clamp Pipeline Connection
The clamp connection supports convenient valve installation, removal, inspection, and pipeline maintenance. Customers should confirm the tube diameter, ferrule diameter, gasket, clamp type, and applicable connection standard before ordering.

DN10 to DN80 Size Range
The product family covers DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, and DN80, with corresponding tube diameters from approximately 12.7 mm to 89 mm.

316L-Marked Stainless Steel Body
The displayed DN25 sample is marked 316L, making it relevant for projects requiring a stainless steel process body. The material grade for other sizes and configurations should be confirmed separately rather than assuming every supplied version is identical.

Customizable Quick Connectors
The clamp connection dimensions can be customized according to the customer’s pipeline and equipment requirements, supporting OEM machinery and non-standard process systems.

Conventional and Anti-Water-Hammer Flow Options

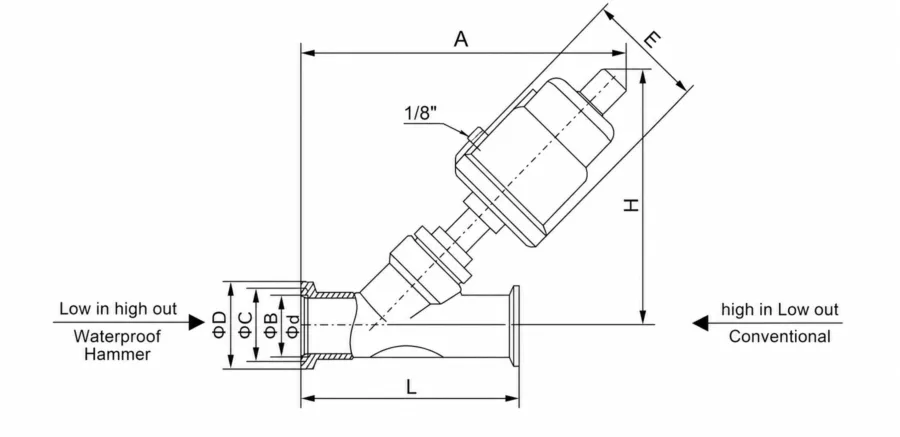

The dimensional drawing identifies high inlet and low outlet as the conventional flow arrangement. Low inlet and high outlet is shown as the arrangement intended to reduce water-hammer effects and may require a larger actuator for some nominal sizes.

Stainless steel pneumatic angle seat valves are commonly available with clamp connections and are used for liquid, gas and steam service, but the final medium suitability depends on the actual body material, seat seal, pressure and temperature rating.

Applications

Steam and Hot-Water Systems
Suitable for automated steam and hot-water switching after confirming the seat seal, stainless steel grade, process pressure, medium temperature and actuator configuration.

Cleaning and Washing Equipment
Used in industrial washing machines, cleaning systems, bottle-washing equipment, sterilization support systems and automated water circuits.

Filling and Packaging Machinery
Suitable for controlling water, air, steam, cleaning fluids and compatible process media in filling equipment, beverage machinery and packaging lines.

Compressed Air and Gas Pipelines
Applied to compressed-air and compatible industrial gas systems where a pneumatic pilot signal operates the main process valve.

Process and Washdown Equipment
The stainless steel actuator and valve body are suitable for process skids, textile machinery, temperature-control equipment and installations exposed to moisture or regular external cleaning.

Official pneumatic angle seat valve documentation supports clamp-connected stainless steel configurations for liquids, gases and steam; the precise operating limits must still be checked against the supplied model.

Why Choose HOMIPNEU

HOMIPNEU supplies all-stainless-steel angle seat valves, plastic actuator angle seat valves, quick-clamp valves, threaded valves, weld-end valves, flanged process valves, steam solenoid valves and pneumatic control components.

We help customers confirm nominal size, tube diameter, ferrule dimensions, clamp standard, stainless steel grade, actuator size, control function, seat seal, pilot pressure, working medium, process pressure, temperature and flow direction.

For OEM customers and distributors, HOMIPNEU supports customized clamp connections, bulk supply, private label packaging, export cartons, dimensional confirmation and product-selection support.

FAQ

What is an all stainless steel pneumatic quick-clamp angle seat valve used for?
It is used for pneumatic on-off control of air, water, steam, gases and compatible process fluids in automated pipeline systems.

Is this a 2/2 way valve?
Yes. A standard pneumatic angle seat shut-off valve has two process ports and two operating states: open and closed. Pneumatic 2/2-way angle seat valves are commonly offered with clamp, threaded or weld-end bodies.

What parts are made from stainless steel?

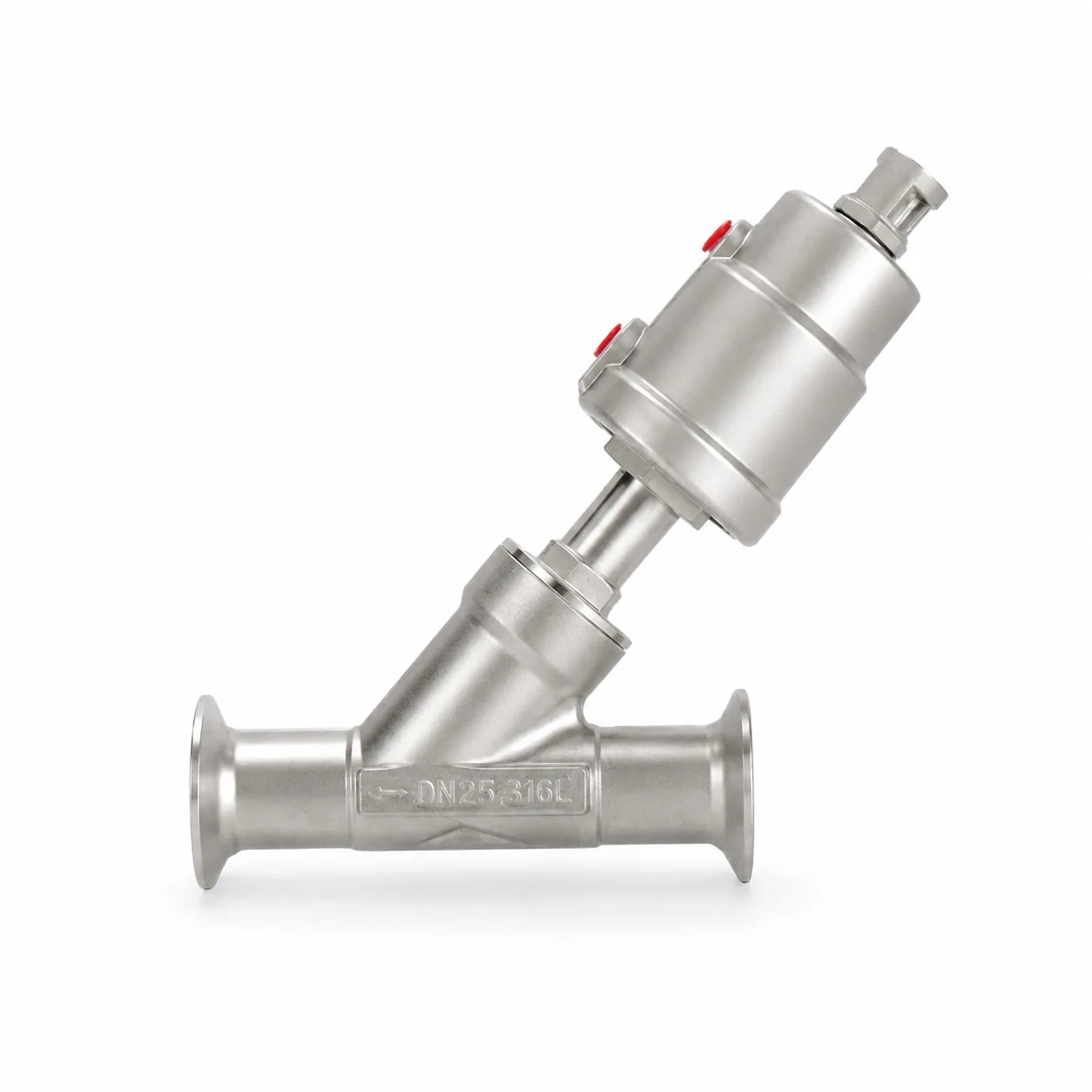

The displayed product has a stainless steel pneumatic actuator and stainless steel angle seat body. The valve body shown in the main product image is marked DN25 and 316L.

Is every model made from 316L stainless steel?
The displayed sample is marked 316L, but the current page does not establish 316L as the fixed material for every size and configuration. Confirm the required stainless steel grade before ordering.

What sizes are available?
The current range covers DN10 through DN80, with tube diameters from approximately 12.7 mm to 89 mm.

Can the quick-clamp connection be customized?
Yes. The product page states that quick connectors can be customized according to customer requirements.

What is the pneumatic pilot connection size?
The dimensional drawing shows a 1/8-inch actuator-air connection. The actual thread standard should be confirmed before ordering.

Can this valve be used for steam?
Stainless steel clamp-connected pneumatic angle seat valves are available for steam applications, but the supplied seat seal, process pressure, steam temperature, stainless steel grade and actuator configuration must match the operating conditions.

Is the valve normally closed or normally open?
The current product page does not define one fixed control function. Normally closed, normally open and double-acting configurations are available in industrial pneumatic seat-valve designs, so the required function should be confirmed when ordering.

What is the anti-water-hammer flow direction?
The dimensional drawing identifies low inlet and high outlet as the arrangement intended to reduce water-hammer effects. The actuator size and installation direction should be selected together.

What should be confirmed before ordering?
Confirm the DN size, tube diameter, ferrule and clamp standard, stainless steel grade, seat seal, actuator function, actuator size, pilot pressure, medium, process pressure, temperature and flow direction.

Does HOMIPNEU support OEM and distributor orders?
Yes. HOMIPNEU supports OEM and ODM supply, customized quick connections, bulk orders, private labeling, export packaging and specification confirmation.

OEM & ODM Support

HOMIPNEU provides OEM and ODM support for all-stainless-steel quick-clamp angle seat valves, threaded angle seat valves, weld-end valves, flanged valves, plastic actuator process valves, steam valves, pneumatic control valves and related automation components. Customers can provide the DN size, tube diameter, clamp standard, stainless steel grade, actuator configuration, control function, seal, medium, pressure, temperature, packaging requirements and expected quantity for accurate selection and supply.
