Stainless Steel Valve – Hongmi Pneumatic Co., Ltd

Stainless Steel Pneumatic Weld-End Angle Seat Valve

Specifications Parameter Description Product Name All Stainless Steel Pneumatic Weld-End Angle Seat Valve Valve Type Pneumatically actuated angle seat valve Connection Type Weld-end connection Body and Actuator Design All stainless steel construction Available Sizes DN10 to DN100 Welding Tube Range Approximately Φ13 to Φ108, depending on selected model Working Media Compressed air-controlled process media such as water, steam, neutral gas, and compatible industrial fluids Actuation Method Pneumatic actuator Installation Type Inline welded pipeline installation Flow Direction Confirm the required flow direction and control function before ordering Welding Customization Outer diameter, inner diameter, and valve body length can be customized Typical Applications Process equipment, steam pipelines, water systems, filling equipment, cleaning systems, and industrial automation Selection Checks Confirm nominal diameter, welding dimensions, medium, temperature, pressure, seal material, actuator size, control function, and installation direction before ordering Model Selection and Dimensions Model Health tube L d D A H E Actuator Waterproof hammer DN10/Φ13 12.7 120 10 14 180 155 62 Φ50 Φ50 DN15/Φ19 19.05 124 15 20 185 160 62 Φ50 Φ50 DN20/Φ25 25.4 122 20 26 185 160 62 Φ50…

Views: 23 2026-07-15

All Stainless Steel Pneumatic Quick-Clamp Angle Seat Valve

Specifications Parameter Specification Product Name All Stainless Steel Pneumatic Quick-Clamp Angle Seat Valve Valve Type Pneumatically operated angle seat shut-off valve Valve Function 2 ports, 2 positions Operation Type Pneumatic piston actuator Actuator Construction Stainless steel actuator housing Valve Body Stainless steel angle seat body Displayed Sample Material 316L stainless steel Process Connection Quick-clamp connection Nominal Size Range DN10 to DN80 Tube Diameter Range 12.7 to 89 mm Clamp Diameter Range 25.4 to 106 mm, depending on model Pilot Connection 1/8 inch shown in the dimensional drawing Control Function Confirm normally closed, normally open or double acting before ordering Working Medium Air, water, steam, gases and compatible process fluids Flow Direction Conventional or anti-water-hammer installation Customized Connection Quick connectors can be customized according to customer requirements Typical Applications Cleaning systems, steam lines, water equipment, filling machinery and process automation Selection Checks Confirm DN size, tube diameter, clamp standard, stainless steel grade, seat seal, actuator function, pilot pressure, medium, process pressure, temperature and flow direction Dimensions Model L d C D A H E Actuator Waterproof Hammer DN10/Φ12.7 120 10 20…

Views: 20 2026-07-15

All Stainless Steel Pneumatic Flanged Angle Seat Valve

Specifications Parameter Specification Product Name All Stainless Steel Pneumatic Flanged Angle Seat Valve Valve Type Pneumatically operated angle seat shut-off valve Valve Function 2 ports, 2 positions Operation Type Pneumatic piston actuator Actuator Construction Stainless steel actuator housing Valve Body Stainless steel angle seat body Displayed Sample Material 304 stainless steel Process Connection Flanged connection Nominal Size Range DN15 to DN100 Standard Flange Options HG5010-58, PN10, PN16 Customized Flange Options PN25, GB/T 9113, HG20593, ISO, DIN, JIS and other standards Pilot Connection 1/8 inch shown in the dimensional drawing Control Function Normally closed, normally open or double acting; confirm before ordering Working Medium Air, water, steam, gases and compatible process fluids Flow Direction Conventional or anti-water-hammer installation Typical Applications Steam lines, water systems, cleaning equipment, heating systems and process machinery Selection Checks Confirm DN size, flange standard, pressure class, material, seat seal, control function, pilot pressure, medium, pressure, temperature and flow direction The HOMIPNEU page confirms the size range, available flange standards, dimensional data and 1/8-inch actuator-air connection. Pneumatically operated angle seat valves generally use a two-way body and piston…

Views: 17 2026-07-15

All Stainless Steel Pneumatic Threaded Angle Seat Valve

Specifications Parameter Specification Product Name All Stainless Steel Pneumatic Threaded Angle Seat Valve Valve Type Pneumatically operated angle seat shut-off valve Valve Function 2 ports, 2 positions Operation Type Pneumatic piston actuator Actuator Construction Stainless steel actuator housing Valve Body Stainless steel angle seat body Material Grade Confirm exact stainless steel grade before ordering Process Connection Female threaded connection Nominal Size Range DN15 to DN100 Port Size Range 1/2″ to 4″ Pilot Connection 1/8″ shown in the dimensional drawing Control Function Double-acting configuration shown; confirm required actuator function Working Medium Air, water, steam, gases and compatible process fluids Flow Direction Conventional or water-hammer-reducing installation Typical Applications Steam systems, water pipelines, cleaning equipment and process machinery Selection Checks Confirm DN size, thread standard, stainless steel grade, seat seal, actuator function, pilot pressure, medium, process pressure, temperature and flow direction Dimensions Model L T A H D E Actuator Waterproof Hammer DN15 80 11 135 135 1/2″ 62 Φ50 Φ50 DN20 72 14 140 140 3/4″ 62 Φ50 Φ50 DN25 88 15 145 145 1″ 62 Φ50 Φ63 DN32 105 17.5* 195…

Views: 20 2026-07-15

2S160-15D 2/2 Way Stainless Steel Solenoid Valve

Specifications Item Specification Model 2S160-15D Common Reference Model 2S160-15 Valve Type Stainless Steel Fluid Control Solenoid Valve Function 2/2 Way Position and Port Number 2 Port 2 Position Normal State Normally Closed Series 2S Series Port Size 1/2″ Orifice Size 16mm Working Medium Air, Water, Oil, Gas, Liquid, Vacuum and Compatible Neutral Fluids Operation Type Solenoid Operated / Direct Lift Diaphragm Type Body Material Stainless Steel Seal Material NBR / VITON Optional CV Value 4.8 Working Pressure Depends on medium, voltage and seal configuration Proof Pressure 1.2MPa Working Temperature -10°C to 80°C with NBR seal / -15°C to 120°C with VITON seal Voltage Options DC12V, DC24V, AC24V, AC110V, AC220V Electrical Entry DIN Connector / Lead Wire Type Structure Direct Lift Diaphragm Structure Flow Direction Follow the arrow direction on valve body Mounting Type Threaded Pipeline Connection Main Application Air, water, oil, gas and general pipeline on/off control Product Features 2/2 Way Normally Closed Design The 2S160-15D solenoid valve uses a 2-port, 2-position normally closed structure. When the coil is not energized, the valve remains closed; when power is applied, the…

Views: 41 2026-07-08

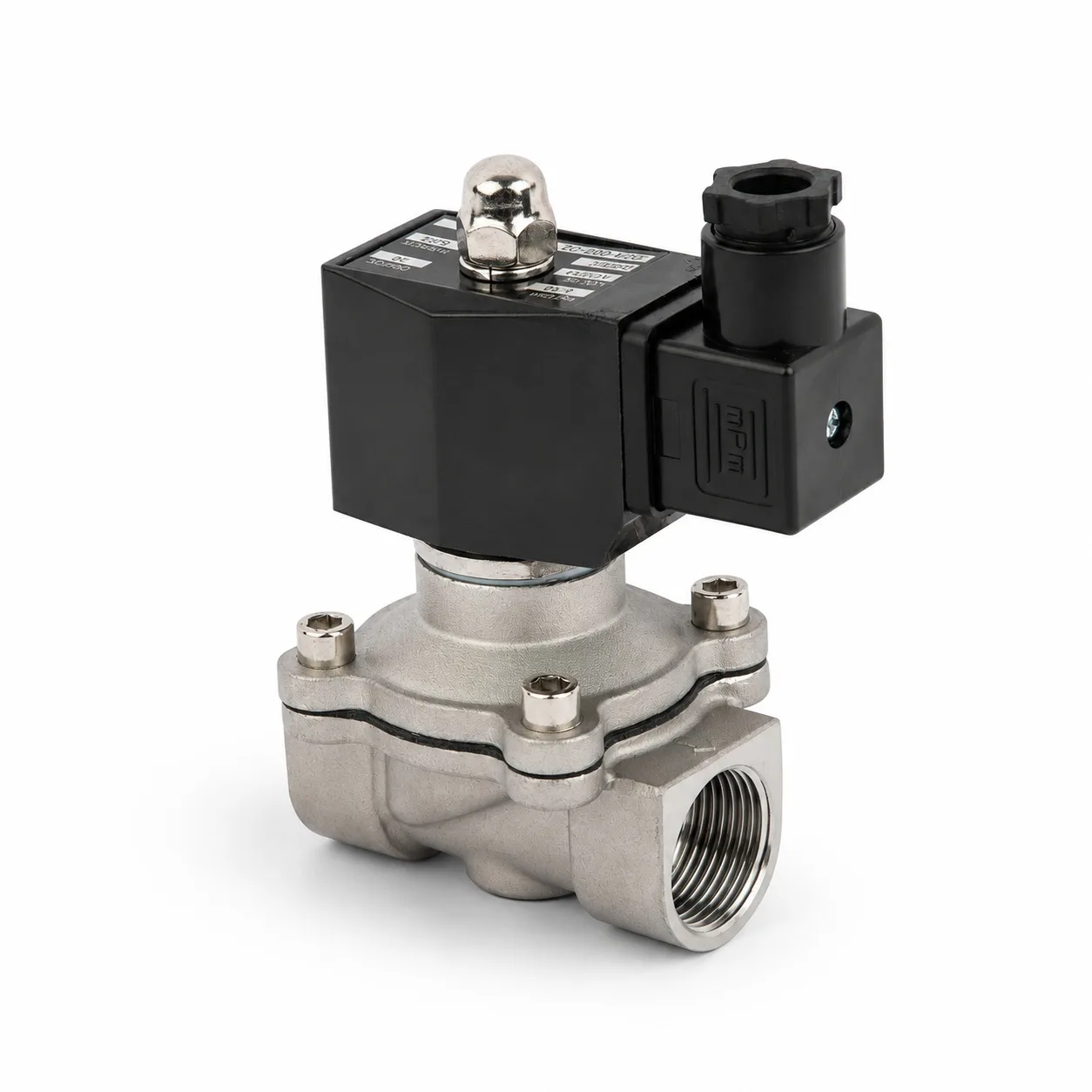

2S200-20G 2/2 Way Stainless Steel Solenoid Valve

Specifications Item Specification Model 2S200-20G Common Reference Model 2S200-20 Valve Type Stainless Steel Fluid Control Solenoid Valve Function 2/2 Way Position and Port Number 2 Port 2 Position Normal State Normally Closed Series 2S Series Port Size 3/4″ Orifice Size 20mm Working Medium Air, Water, Oil, Gas and Compatible Neutral Fluids Operation Type Solenoid Operated / Direct Lift Diaphragm Type Body Material Stainless Steel Seal Material NBR / VITON Optional CV Value 7.6 Working Pressure Depends on medium, voltage and seal configuration Proof Pressure 1.2MPa Working Temperature -5°C to 80°C Voltage Options DC12V, DC24V, AC24V, AC110V, AC220V Electrical Entry Lead Wire / Connector Type Structure Direct Lift Diaphragm Structure Flow Direction Follow the arrow direction on valve body Mounting Type Threaded Pipeline Connection Main Application Air, water, oil, gas and general pipeline on/off control Product Features 2/2 Way Normally Closed Design The 2S200-20G solenoid valve uses a 2-port, 2-position normally closed structure. When the coil is not energized, the valve remains closed; when power is applied, the valve opens to allow medium flow. 3/4 Port for Medium-Flow Pipeline Systems With…

Views: 30 2026-07-08

Stainless Steel Pneumatic Weld-End Angle Seat Valve

All Stainless Steel Pneumatic Quick-Clamp Angle Seat Valve

All Stainless Steel Pneumatic Flanged Angle Seat Valve

All Stainless Steel Pneumatic Threaded Angle Seat Valve

2S160-15D 2/2 Way Stainless Steel Solenoid Valve

2S200-20G 2/2 Way Stainless Steel Solenoid Valve
