Specifications
| Item | Specification |
|---|---|
| Model | 2S200-20G |
| Common Reference Model | 2S200-20 |

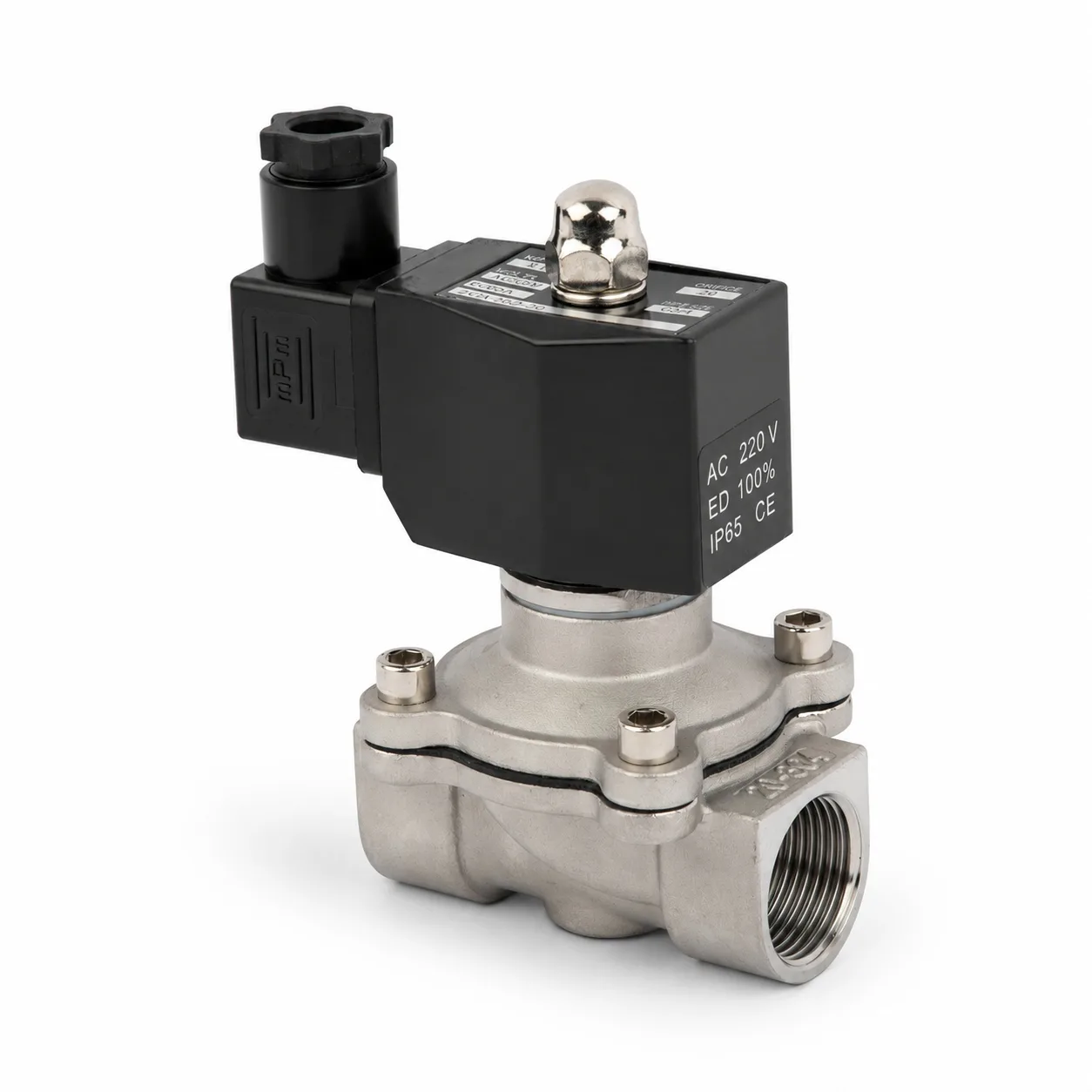

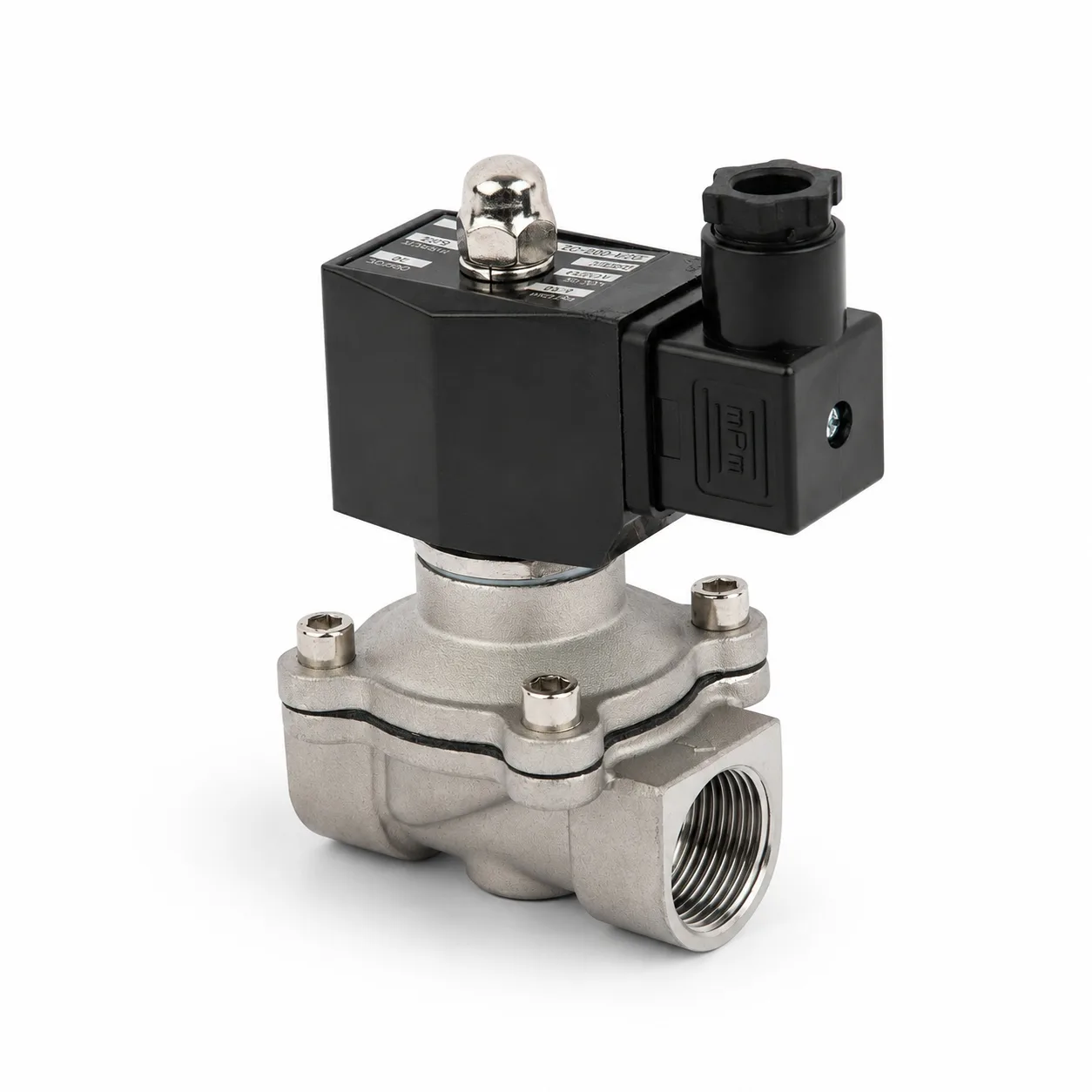

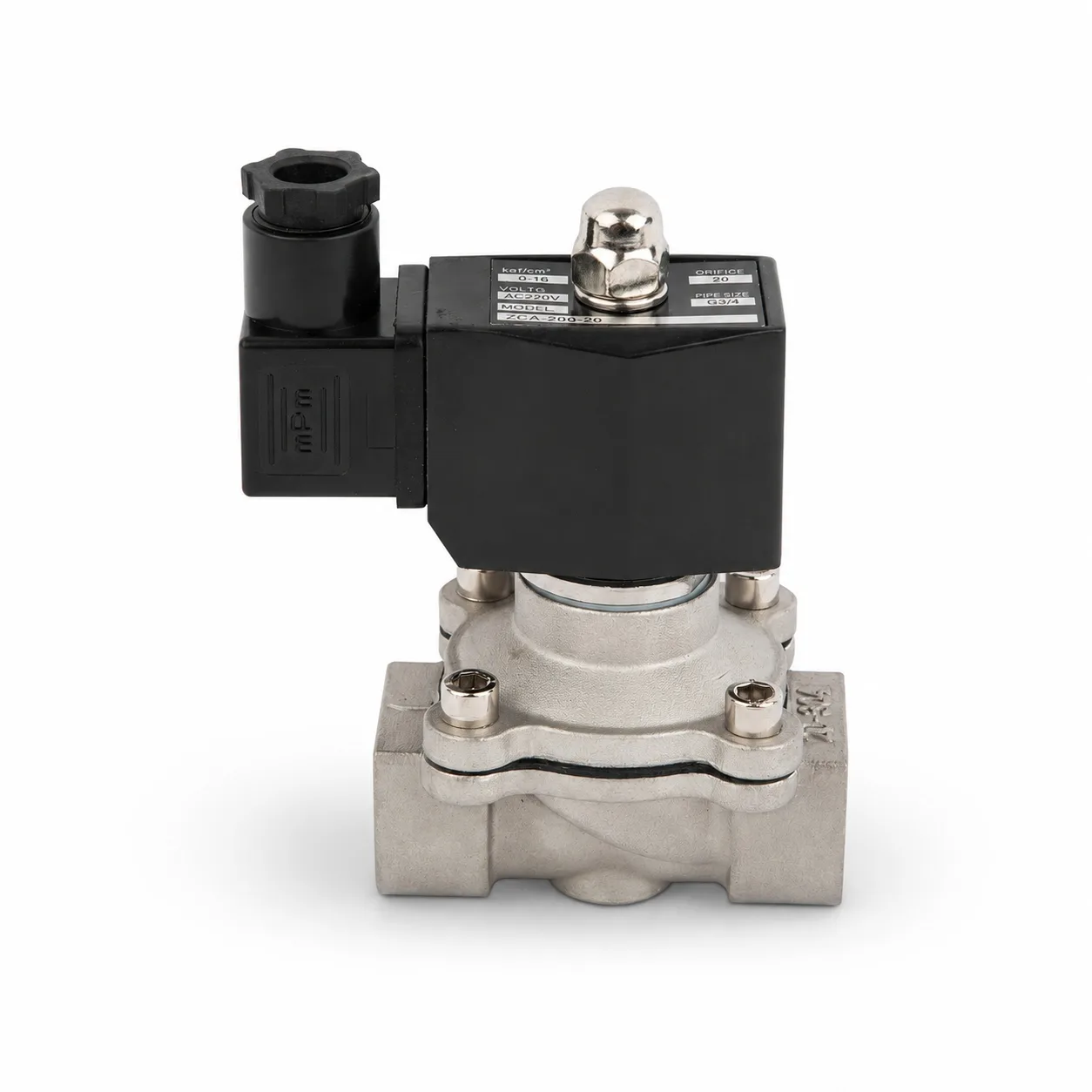

| Valve Type | Stainless Steel Fluid Control Solenoid Valve |
| Function | 2/2 Way |
| Position and Port Number | 2 Port 2 Position |
| Normal State | Normally Closed |
| Series | 2S Series |
| Port Size | 3/4″ |
| Orifice Size | 20mm |
| Working Medium | Air, Water, Oil, Gas and Compatible Neutral Fluids |
| Operation Type | Solenoid Operated / Direct Lift Diaphragm Type |
| Body Material | Stainless Steel |
| Seal Material | NBR / VITON Optional |
| CV Value | 7.6 |
| Working Pressure | Depends on medium, voltage and seal configuration |
| Proof Pressure | 1.2MPa |
| Working Temperature | -5°C to 80°C |
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V |
| Electrical Entry | Lead Wire / Connector Type |
| Structure | Direct Lift Diaphragm Structure |
| Flow Direction | Follow the arrow direction on valve body |
| Mounting Type | Threaded Pipeline Connection |
| Main Application | Air, water, oil, gas and general pipeline on/off control |
Product Features
2/2 Way Normally Closed Design
The 2S200-20G solenoid valve uses a 2-port, 2-position normally closed structure. When the coil is not energized, the valve remains closed; when power is applied, the valve opens to allow medium flow.
3/4 Port for Medium-Flow Pipeline Systems
With a 3/4″ port size and 20mm orifice, the 2S200-20G is suitable for medium-flow pipeline systems that need reliable electrical on/off control.
Stainless Steel Valve Body
The stainless steel body provides better corrosion resistance than standard brass body valves, making it suitable for air, water, oil, gas, and compatible neutral fluid applications where cleaner or more durable material is required.
Normally Closed Safety Function
The normally closed design helps shut off the pipeline automatically when power is removed. This is useful for systems where the default state needs to remain closed for safety or process control.
Direct Lift Diaphragm Structure
The direct lift diaphragm structure supports stable opening and closing performance in fluid control applications. It helps provide reliable sealing and consistent response during repeated operation.
Suitable for Air, Water, Oil and Gas Control
The 2S200-20G can be used for compatible air, water, oil, gas, and other neutral media under proper pressure, temperature, and seal material conditions.
Multiple Voltage Options Available
The 2S200-20G can be supplied with common voltage options such as DC12V, DC24V, AC24V, AC110V, and AC220V to match different automation control systems.
Practical Choice for Automated Fluid On/Off Control
The valve is suitable for equipment that requires electric signal control of pipeline flow, including water systems, gas lines, oil circuits, cleaning equipment, filling machines, and industrial automation equipment.
Applications
The 2S200-20G normally closed stainless steel solenoid valve is widely used in air pipelines, water supply systems, oil circuits, gas control lines, cleaning equipment, filling machines, food and beverage equipment, water treatment systems, laboratory devices, HVAC auxiliary systems, and general automation fluid control systems.
It is especially suitable for applications where the pipeline medium needs to be opened or closed by an electrical signal. For pneumatic cylinder direction control, a 5/2 way pneumatic solenoid valve such as 4V210-08 or 4V310-10 is usually more suitable.
Why Choose HOMIPNEU
HOMIPNEU supplies solenoid valves, pneumatic valves, manual valves, cylinders, fittings, and air source treatment components for industrial automation and fluid control systems. The 2S200-20G stainless steel solenoid valve is designed for stable pipeline on/off control, practical installation, and reliable operation in air, water, oil, gas, and compatible fluid systems.
We support model selection, voltage options, seal material options, thread options, batch supply, packaging, labeling, and customized requirements for OEM machinery builders, pneumatic distributors, maintenance users, and industrial equipment suppliers.
FAQ
What is the 2S200-20G solenoid valve used for?
The 2S200-20G is mainly used for electrical on/off control of air, water, oil, gas, and other compatible neutral fluids.
Is 2S200-20G a pneumatic directional valve?
No. The 2S200-20G is a fluid control solenoid valve for pipeline on/off control. It is not a 5/2 way pneumatic cylinder directional valve.
Is 2S200-20G normally closed?
Yes. It is commonly used as a normally closed valve, meaning the valve stays closed when the coil is not energized and opens when power is applied.
What is the port size of 2S200-20G?
The standard port size is 3/4″, suitable for medium-flow fluid control pipelines.
What does the “G” mean in 2S200-20G?
The “G” usually refers to the thread or connection version. Final thread type should be confirmed according to the actual product marking and customer requirement.
Can 2S200-20G be used for water?
Yes. It can be used for water if the pressure, temperature, seal material, and fluid compatibility match the system requirements.
Can 2S200-20G be used for oil or gas?
Yes. It can be used for compatible oil and neutral gas applications, but final selection should confirm working pressure, temperature, seal material, and safety requirements.
What is the difference between 2S200-20G and ZCA-200-20?
Both are 3/4″ fluid control solenoid valves, but 2S200-20G uses a stainless steel body, while ZCA-200-20 is commonly supplied with a brass body. Stainless steel is usually selected when better corrosion resistance or cleaner material is required.
OEM & ODM Support
HOMIPNEU provides OEM & ODM support for 2S Series stainless steel solenoid valves, including voltage options, seal material options, thread options, labeling, packaging, and batch supply for automation equipment manufacturers, pneumatic distributors, maintenance users, and industrial fluid control system suppliers.
