Specifications
| Parameter | Description |
|---|---|
| Product Name | Plastic Actuator Pneumatic Quick-Clamp Angle Seat Valve |
| Valve Type | Pneumatically operated angle seat shut-off valve |
| Valve Function | 2 ports, 2 positions |
| Operation Type | Pneumatic piston actuator |
| Actuator Housing | Engineering plastic |
| Valve Body | Stainless steel; product image shows a DN25 body marked 316L |
| Connection Type | Quick-clamp connection |
| Nominal Size Range | DN10 to DN80 |
| Tube Diameter Range | 12.7 to 89 mm |
| Clamp Diameter Range | Approximately 25.4 to 106 mm, depending on size |
| Pilot Connection | 1/4 inch shown in the dimensional drawing |
| Control Function | Normally closed, normally open, or double acting; confirm before ordering |
| Working Medium | Air, water, steam, gases, and compatible process fluids |
| Flow Direction | Conventional high-inlet/low-outlet or water-hammer-reducing low-inlet/high-outlet arrangement |
| Clamp Standard | Confirm ferrule diameter and connection standard before ordering |
| Typical Application | Steam systems, water pipelines, cleaning equipment, filling machinery, and process automation |
| Selection Checks | Confirm DN size, tube diameter, clamp standard, body material, seat seal, control function, pilot pressure, medium, pressure, temperature, and flow direction |

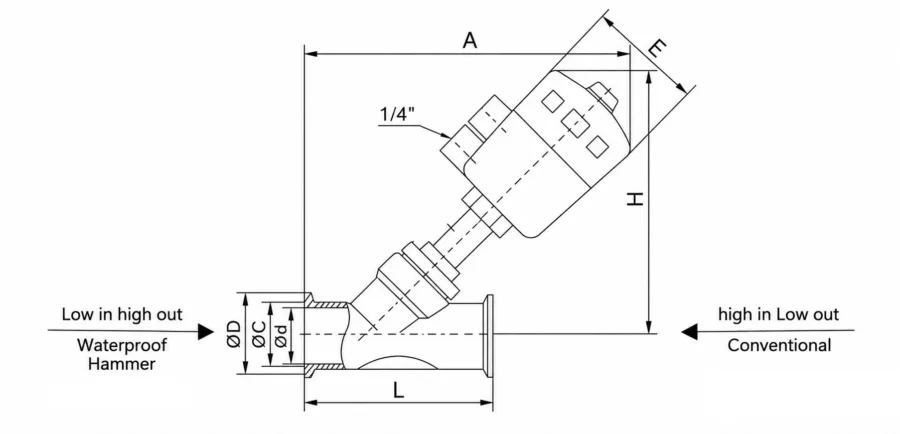

Dimensions
| Model | L | d | C | D | A | H | E | Actuator | Waterproof hammer |
| DN10/ 12.7 | 120 | 10 | 20 | 25.4 | 180 | 155 | 64 | Φ50 | Φ50 |
| DN15/¢19 | 132 | 16 | 20 | 50.5 | 180 | 160 | 64 | Φ50 | Φ50 |
| DN20/+25 | 132 | 21 | 25 | 50.5 | 185 | 160 | 64 | Φ50 | Φ50 |
| DN25/+32 | 142 | 26 | 31 | 50.5 | 200/230 | 170/205 | 64/80 | Φ50/+63 | Φ63 |
| DN32/+38 | 152 | 33 | 39 | 50.5 | 240 | 210 | 80 | Φ63 | Φ80 |
| DN40/+45 | 182 | 41 | 46 | 64 | 250 | 215 | 80 | Φ63 | Φ80 |
| DN40/+51 | 182 | 46 | 52 | 64 | 250 | 215 | 80 | Φ63 | Φ80 |
| DN50/+57 | 202 | 50 | 55 | 64 | 260/280 | 220/230 | 80/100 | Φ63/Φ80 | Φ100 |
| DN50/+63 | 202 | 58 | 64 | 77.5 | 285 | 235 | 100 | Φ80 | Φ100 |
| DN65/Φ76 | 230 | 70 | 77 | 91 | 320 | 270 | 100 | Φ80 | Φ100 |
| DN80/¢89 | 250 | 83 | 90 | 106 | 360 | 310 | 126 | Φ100 | Φ125 |
Quick connector can be customized according to user requirements
Product Features
Pneumatic 2/2 Way On-Off Control
The valve uses a pneumatic piston actuator to open or close the two-port process flow path. It is suitable for automated systems that require repeated fluid switching without manual valve operation.
Quick-Clamp Process Connection
The clamp-style connection supports convenient installation, removal, inspection, and pipeline maintenance. The matching ferrule diameter, gasket, clamp, and connection standard should be confirmed before ordering.
Plastic Pneumatic Actuator
The engineering plastic actuator reduces actuator weight and provides a compact operating structure. Plastic piston actuators are also used on established industrial angle seat valve designs for liquid, gas, and steam control.
Stainless Steel Angle Seat Body

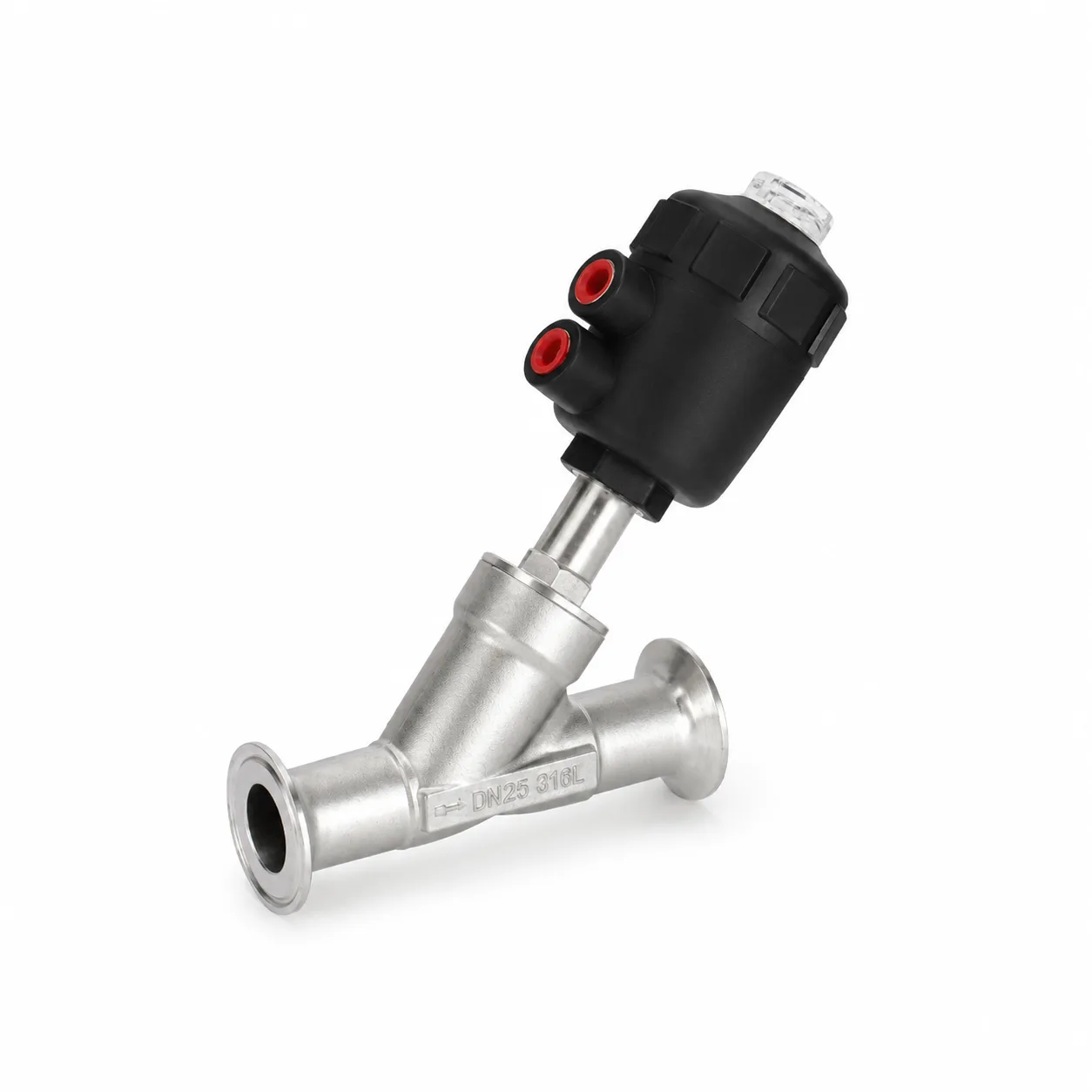

The product image shows a stainless steel valve body marked DN25 and 316L. Other sizes or supplied versions should be confirmed separately rather than assuming every model uses the same stainless steel grade.
DN10 to DN80 Size Range
The product family covers tube diameters from approximately 12.7 mm to 89 mm. Multiple ferrule and actuator sizes allow selection for both compact equipment and larger process pipelines.
Conventional and Water-Hammer-Reducing Flow Options
The dimensional drawing identifies high-inlet/low-outlet as the conventional flow arrangement and low-inlet/high-outlet as the water-hammer-reducing arrangement. Installation must follow the selected valve configuration and approved flow direction.
Pneumatic angle seat valves are commonly supplied with threaded, welded, or clamp connections, and their flow-optimized bodies are designed for on-off control with relatively high flow capacity.
Applications
Steam and Hot-Water Systems
Suitable for automated steam and hot-water switching after confirming the valve-body material, seat seal, operating pressure, temperature, actuator limits, and installation direction.
Cleaning and Washing Equipment
Used in industrial washing machines, cleaning systems, bottle-washing equipment, sterilization support systems, and automated water circuits.
Filling and Packaging Machinery
Suitable for controlling air, water, cleaning fluids, and compatible process media in filling machines, beverage equipment, and packaging lines.
Compressed Air and Gas Pipelines
Applied to compressed-air lines and compatible gas systems where a pneumatic signal operates the main process valve.
Process Automation Equipment
Used in textile machinery, temperature-control systems, water-treatment equipment, process skids, and general automated fluid-handling systems.
Clamp-connected pneumatic angle seat valves are available commercially for liquids, gases, and steam, but the exact medium suitability depends on the supplied body, seat seal, pressure, and temperature rating.
Why Choose HOMIPNEU
HOMIPNEU supplies pneumatic angle seat valves, threaded process valves, quick-clamp valves, steam solenoid valves, pneumatic control valves, directional valves, fittings, cylinders, air hoses, and air preparation components.
We help customers confirm nominal size, tube diameter, clamp standard, actuator configuration, control function, valve-body material, seat seal, pilot pressure, working medium, operating pressure, temperature, and installation direction.
For OEM customers and distributors, HOMIPNEU supports bulk supply, customized clamp connections, private label packaging, export cartons, and product-selection support.
FAQ
What is a pneumatic quick-clamp angle seat valve used for?
It is used for pneumatic on-off control of air, water, steam, gas, and compatible process fluids in automated pipeline systems.
Is this a 2/2 way valve?
Yes. The angle seat valve has two process connections and two operating states: open and closed.
Is the valve electrically operated?
The main valve is operated by compressed pilot air. An external solenoid valve can be used when an electrical signal is required to control the pneumatic actuator.
What sizes are available?
The current page lists DN10 through DN80, with tube diameters from approximately 12.7 mm to 89 mm.
Is the valve body made from 316L stainless steel?
The displayed DN25 product body is marked 316L. The material grade for other models and order configurations should be confirmed before purchase.
What is the pilot-air connection size?
The dimensional drawing shows a 1/4-inch actuator connection. The exact thread standard should still be confirmed for the supplied version.
Can this valve be used for steam?
Pneumatic stainless steel angle seat valves are commonly available for steam service, but the actual seat seal, pressure rating, temperature rating, actuator configuration, and body material must match the steam conditions.
What is the water-hammer-reducing flow direction?
The page drawing identifies low-inlet/high-outlet installation as the water-hammer-reducing arrangement. The correct direction must match the selected control function and installation instructions.
Can the quick-clamp connector be customized?
Yes. The current product page states that the quick connector can be customized according to customer requirements.
What should be confirmed before ordering?
Confirm the DN size, tube diameter, clamp and ferrule standard, body material, seat seal, control function, pilot pressure, working medium, process pressure, temperature, flow direction, and required quantity.
Does HOMIPNEU support OEM and distributor orders?
Yes. HOMIPNEU supports OEM and ODM supply, customized connections, bulk orders, private labeling, export packaging, and configuration confirmation.
OEM & ODM Support
HOMIPNEU provides OEM and ODM support for plastic actuator quick-clamp angle seat valves, threaded angle seat valves, stainless steel process valves, steam valves, pneumatic control valves, solenoid valves, fittings, cylinders, and related automation components. Customers can provide the DN size, tube diameter, clamp standard, actuator type, control function, material, seal, medium, pressure, temperature, packaging requirements, and expected quantity for accurate selection and supply.
