Specifications
| Parameter | Description |
|---|---|

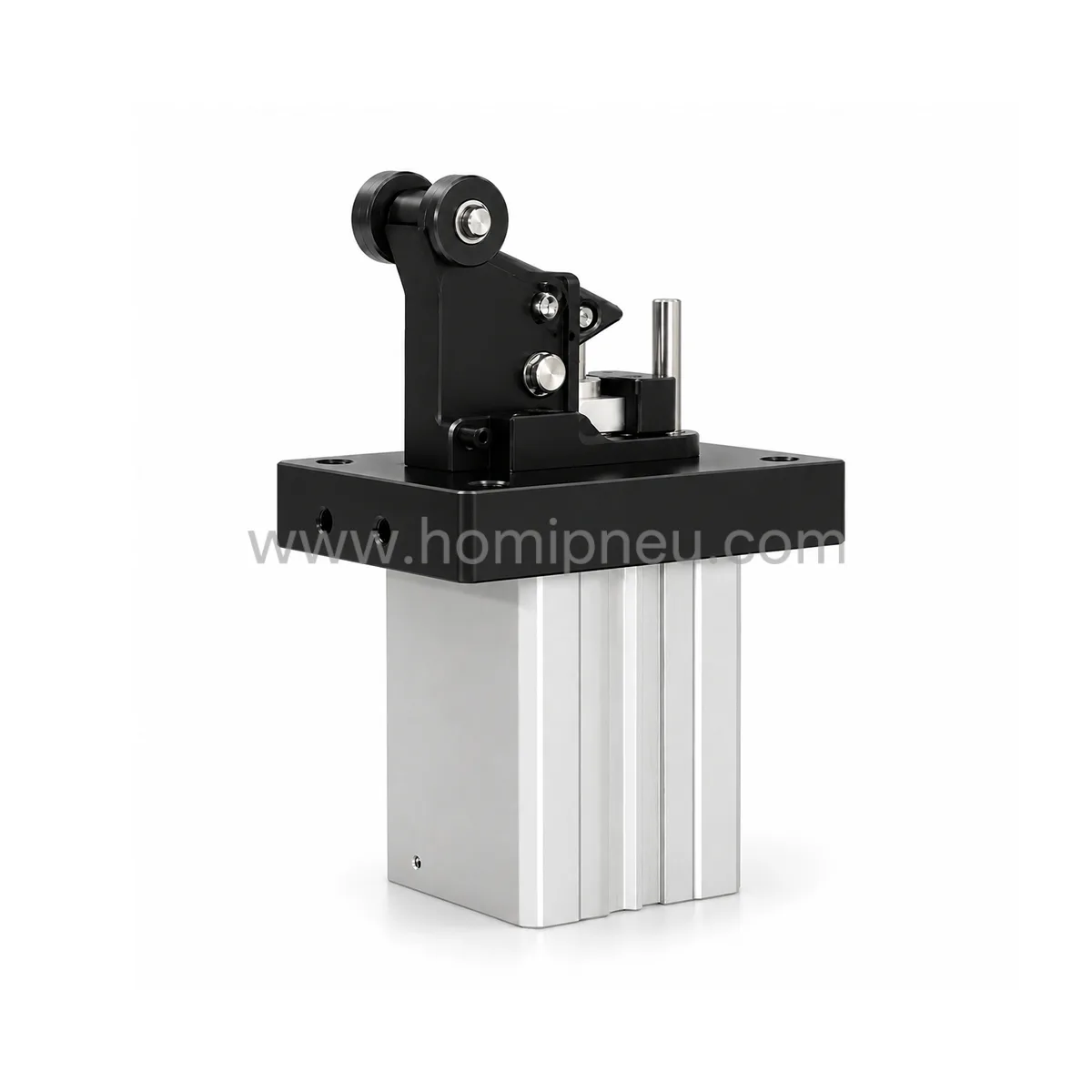

| Product Name | Pneumatic Stopper Cylinder |
| Series | TWH Series |
| Related Model | TWM Series |
| Cylinder Type | Stopper Cylinder |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Bore Size | 20 / 25 / 32 / 40 / 50 / 63 / 80 mm |
| Stroke | Application Dependent |
| Body Material | Aluminum Alloy |
| Structure Type | Lever Type / Roller Type Stopper Structure |
| Shock Absorption | Hydraulic Buffer / Shockless Stopper Structure |
| Self-Locking Function | Available on selected lever roller types |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac TWH/TWM Series |
| Applications | Conveyor Line / Pallet Stopper / Transfer System |

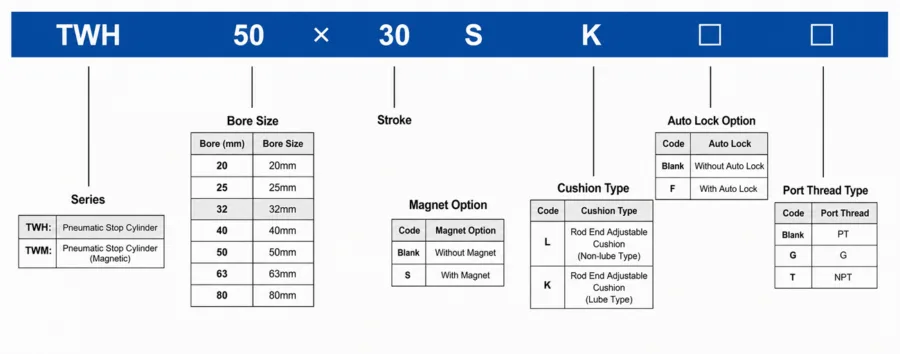

How to order
Product Features
Conveyor Stopper Cylinder Design
The TWH Series is designed for stopping pallets, fixtures, and workpieces on conveyor lines and automated transfer systems.
Shockless Stopping Performance
The stopper structure helps reduce impact during workpiece stopping, making it suitable for automated lines requiring stable positioning.
Heavy-Duty Impact Resistance
A widened piston rod structure helps improve resistance to side impact and repeated stopping loads in conveyor applications.
Hydraulic Buffer Option
Selected configurations can use hydraulic buffering to absorb impact energy during high-frequency transfer line operation.
Self-Locking Stopper Structure
Lever roller types can be equipped with a self-locking structure to reduce rebound after the workpiece is stopped.
Suitable Replacement for Airtac TWH/TWM Series
Designed for pneumatic stopper cylinder applications requiring replacement for Airtac TWH/TWM Series models.
Industrial Transfer Line Integration
ISO standard mounting supports practical installation into conveyor machinery, pallet transfer systems, and automated production lines.
Applications
Conveyor Stopper Systems
Used to stop pallets, carriers, and workpieces on automated conveyor lines.
Pallet Transfer Lines
Suitable for positioning pallets before assembly, inspection, loading, or unloading stations.
Automated Assembly Equipment
Applied in production lines where accurate stopping and positioning are required.
Packaging and Sorting Machinery
Used in automated packaging, sorting, and material transfer systems.
Industrial Handling Systems
Suitable for machinery requiring repeated stopping, buffering, and workpiece positioning.
Why Choose HOMIPNEU
- Stable manufacturing quality for pneumatic stopper cylinders
- Practical design for conveyor and pallet transfer applications
- Shockless stopper structures for reduced workpiece impact
- Support for heavy-duty and self-locking configurations
- ISO standard mounting for easier machine integration
- Custom bore, stroke, and stopper structure support
- Reliable supply for automation equipment manufacturers
- Export packaging and branding support
FAQ
Is the TWH Series interchangeable with Airtac TWH/TWM Series?
Yes, for this product page, TWH and TWM are treated as the same model range. The TWH Series can be used as an interchangeable stopper cylinder solution for Airtac TWH/TWM Series applications.
What is a TWH stopper cylinder used for?
It is used to stop, position, and buffer pallets or workpieces on conveyor lines, transfer equipment, and automated assembly systems.
What is the difference between TWH and TWM?
TWH is commonly used as a stopper cylinder series, while TWM is often associated with heavier-duty stopper cylinder configurations. For this page, both are treated as the same related model range.
Does the TWH Series support self-locking function?
Selected lever roller stopper structures can support a self-locking function to help prevent rebound after the stopped object contacts the stopper.
Can customized stopper cylinder specifications be supplied?
Yes, bore size, stroke, mounting dimensions, stopper structure, buffer type, and application-specific configurations can be customized.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for TWH Series stopper cylinders, including customized bore size, stroke length, stopper structure, buffer configuration, logo marking, packaging solutions, and pneumatic automation support for distributors, machinery manufacturers, and conveyor system integrators.
