Specifications
| Parameter | Description |
|---|---|
| Product Name | Pneumatic Stopper Cylinder |
| Series | RSDQB Series |
| Cylinder Type | Compact Stopper Cylinder |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Bore Size Range | 12mm~50mm |
| Stroke Range | 10mm~30mm |
| Body Material | Aluminum Alloy |
| Structure Type | Fixed Height Stopper Structure |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC RSDQB Series |
| Applications | Conveyor Lines / Transfer Systems / Positioning Equipment |

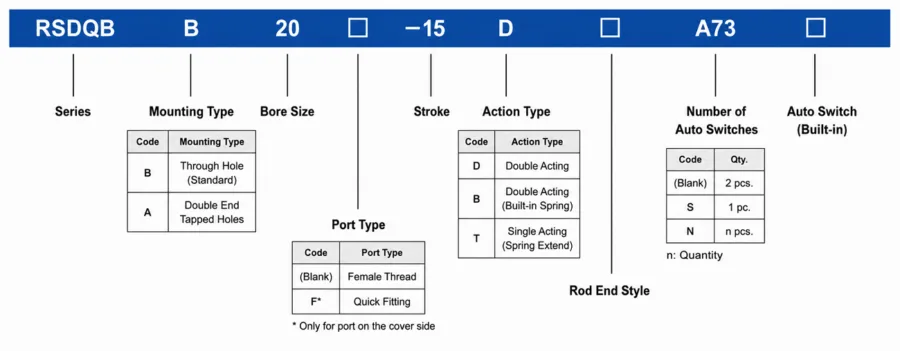

How to order
Product Features
Compact Stopper Cylinder Structure
The RSDQB Series is designed for stopping, positioning, and separating workpieces in conveyor and transfer systems.
Stable Conveyor Stopping Performance
Provides reliable pneumatic stopping action for automated material transfer and positioning applications.
Fixed Height Stopper Design
The fixed stopper structure helps maintain stable stopping position during repeated automation cycles.
Durable Aluminum Alloy Housing
Manufactured with aluminum alloy construction for lightweight installation and continuous industrial operation.
Compact Installation Size
Suitable for automation systems and conveyor equipment with limited mounting space.
Suitable Replacement for SMC RSDQB Series
Designed for pneumatic stopper applications requiring replacement for SMC RSDQB Series models.
Automation Equipment Integration
ISO standard mounting supports convenient integration into conveyor systems, transfer units, and automated production equipment.
Applications
Conveyor Line Stopping Systems
Used for stopping and positioning workpieces on conveyor transfer lines.
Material Transfer Equipment
Suitable for separating and controlling product movement in automated transfer systems.
Assembly Automation
Applied in assembly lines requiring pneumatic positioning and workpiece control.
Packaging Machinery
Used in automated packaging systems for product stopping and alignment operations.
Industrial Automation Systems
Suitable for transfer equipment, loading systems, and automated material handling applications.
Why Choose HOMIPNEU
- Stable stopper cylinder manufacturing quality
- Compact structure for conveyor equipment integration
- Reliable stopping and positioning performance
- ISO standard mounting for practical installation
- Support for customized mounting dimensions and stopper configurations
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for conveyor system manufacturers and automation integrators
FAQ
Is the RSDQB Series interchangeable with SMC RSDQB Series?
Yes, the RSDQB Series stopper cylinder is designed to be interchangeable with SMC RSDQB Series in many conveyor and transfer system applications.
What is the RSDQB stopper cylinder used for?
It is used for stopping, positioning, separating, and controlling workpieces in conveyor systems and automation equipment.
What type of stopper structure is used?
The RSDQB Series uses a fixed height stopper structure for stable stopping and positioning performance.
What bore sizes are available?
Common bore sizes range from 12mm to 50mm depending on application requirements.
Can customized stopper solutions be supported?
Yes, customized mounting structures, stopper configurations, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for RSDQB pneumatic stopper cylinders, including customized mounting dimensions, stopper structures, logo marking, export packaging, and automation support for conveyor system manufacturers, distributors, and industrial integrators.
