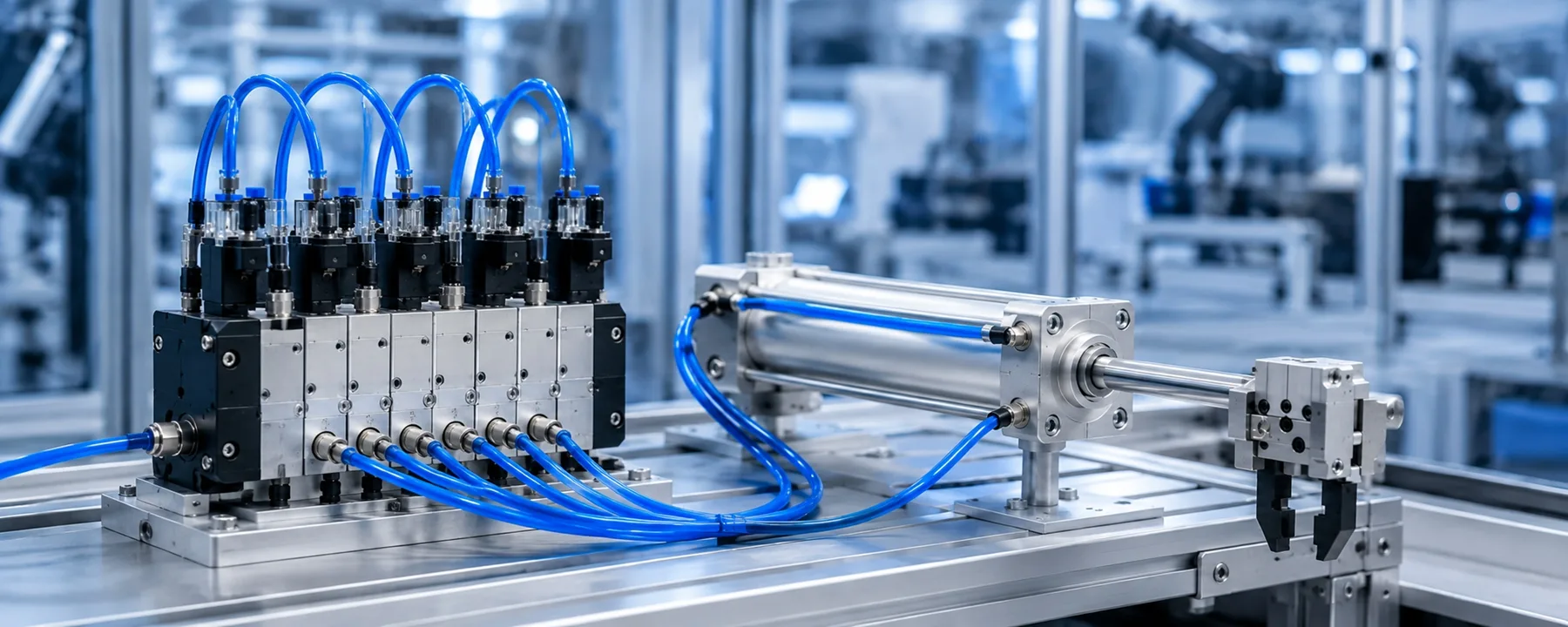

5/2 Way Solenoid Valves for Pneumatic Cylinder Control

Introduction

5/2 way solenoid valves are widely used wherever a double-acting pneumatic cylinder needs to extend and retract under electrical control. They are common in packaging machines, clamping fixtures, assembly equipment, textile machines, labeling systems, and many other automation lines. A small valve may sit inside a cabinet or on a manifold, but it controls the timing and direction of the actuator.

When a cylinder moves slowly, stops halfway, or behaves inconsistently, the valve is one of the first components technicians check. The issue may come from the valve itself, but it may also come from low pilot pressure, undersized tubing, blocked exhaust, incorrect wiring, or a poor air supply. Understanding how a 5/2 way valve works makes troubleshooting and selection much easier.

HOMIPNEU supplies several 5/2 way pneumatic valve options, including compact SY series valves and AirTAC type 4V series valves. Products such as the SY3120-5LZD-M5 solenoid valve, SY5120-5LZD piloted solenoid valve, and AirTAC type 4V pneumatic air valve are typical choices for cylinder control.

What Does 5/2 Way Mean?

A 5/2 way valve has five ports and two positions. The five ports normally include one pressure inlet, two working ports connected to the cylinder, and two exhaust ports. The two positions decide which cylinder port receives air and which side exhausts.

In one position, compressed air flows to one side of the cylinder and pushes the piston forward. In the other position, air flows to the opposite side and the cylinder retracts. This makes the valve suitable for double-acting cylinders, where air pressure is used in both directions.

The port numbers may vary by standard, but the function is the same. The inlet supplies air, A and B connect to the cylinder, and exhaust ports release air from the non-pressurized side. If the exhaust is blocked or restricted too much, cylinder movement becomes slow or unstable.

Single Solenoid vs Double Solenoid

A single solenoid 5/2 valve uses one coil and a spring return or air return mechanism. When the coil is energized, the valve shifts. When power is removed, it returns to the original position. This is useful when the machine should return to a default state after signal loss.

A double solenoid 5/2 valve uses two coils. One coil shifts the valve one way, and the other coil shifts it back. The valve may hold its last position after the signal is removed, depending on the design. This can be useful where the actuator should maintain its last command, but it must be considered carefully in safety-related circuits.

For machine builders, the choice depends on control logic and fail-safe behavior. A clamping cylinder may need a different default response from a reject cylinder or a positioning cylinder. The valve selection should match what the machine should do during emergency stop, power loss, and restart.

Pilot Operated Structure and Pressure Requirements

Many 5/2 way solenoid valves are pilot operated. The coil opens a small pilot passage, and air pressure shifts the main spool. This design allows a relatively small coil to control a larger flow path. It is efficient and common in industrial pneumatic systems.

The important detail is minimum operating pressure. If the air pressure is below the valve's required range, the spool may not shift reliably. A valve may click electrically but fail to switch airflow. Technicians sometimes mistake this for a coil problem when the real issue is insufficient pilot pressure.

For low-pressure applications, direct acting or specially designed low-pressure valves may be needed. Before choosing a valve, check the operating pressure range against the actual machine pressure, not only the compressor rating.

Port Size and Cylinder Speed

Port size affects how quickly air can enter and leave the cylinder. A small M5 valve may be excellent for compact actuators but too restrictive for a larger bore cylinder moving at high speed. A G1/4 or larger valve may be more suitable when the cylinder requires more air volume.

Cylinder speed also depends on tube size, fitting size, flow control valves, silencer resistance, and exhaust path. If a larger valve is connected with small tubing, the system may still be slow. If a silencer is clogged with oil mist or dust, exhaust flow may be restricted.

For OEM design, select the valve together with the cylinder bore, stroke, required cycle time, and tube layout. Testing under real machine conditions is better than judging by valve port size alone.

Choosing Between SY Series and 4V Series

SY series valves are often selected for compact pneumatic systems that need fast response and a clean manifold layout. They are available in different body sizes, such as SY3000, SY5000, SY7000, and SY9000, allowing the same design concept to cover different flow requirements.

The SY7120-5LZD-02 SMC type solenoid valve is suitable where a 5/2 way directional valve is needed for stable compressed air control. Larger SY models such as SY9120-5DZD-03 are used when more flow capacity is required.

4V series valves are widely used as AirTAC type directional control valves. They are familiar to many maintenance teams and are common in packaging and general automation equipment. The 4V220-08 pneumatic solenoid valve is one example used for actuator control.

Wiring and Voltage Details

A 5/2 way valve must match the control system voltage. DC24V is common in PLC-controlled automation, while AC110V and AC220V may be used in other machines. DC12V may appear in compact devices or mobile equipment. Using the wrong coil voltage can burn the coil or prevent the valve from switching.

Connector type should also be confirmed. Some valves use DIN connectors, some use lead wires, and some need LED indicators or surge suppression. On machines with many valves, connector consistency makes assembly and maintenance easier.

For double solenoid valves, wiring should be checked carefully so the correct coil controls the correct direction. During commissioning, label valve outputs and cylinder movements. This reduces confusion when troubleshooting later.

Common Mistakes in 5/2 Valve Selection

One common mistake is choosing a valve only by thread size. Two valves with the same port size may have different flow capacity, response time, pressure range, and mounting style. Another mistake is ignoring exhaust flow. A cylinder cannot move quickly if air cannot leave the opposite side.

Another issue is poor air quality. Moisture, particles, and oil contamination can affect the valve spool and seals. An air source treatment unit should be installed upstream where needed. Clean, dry air helps the valve last longer and switch more consistently.

Some systems also use valves too close to moving parts without proper tube support. Vibration and tube pulling can stress fittings and valve ports. A clean layout with suitable pneumatic fittings helps protect the valve assembly.

Practical Selection Tips

Start by identifying the cylinder type. If it is double-acting, a 5/2 way valve is usually the standard choice. Then check cylinder bore, stroke, cycle speed, available pressure, control voltage, port size, and installation space.

For compact cylinders or grippers, a small SY valve may be enough. For larger cylinders or faster cycles, choose a larger valve body with higher flow. For machines that use many cylinders, consider manifold mounting to simplify piping and wiring.

For replacement projects, match the old valve's function before matching appearance. A valve can look similar but have different coil voltage, port thread, or actuation type. Check the nameplate, circuit diagram, and port markings before ordering.

Related Pneumatic Products

5/2 way solenoid valves usually work with double-acting pneumatic cylinders, PU tubes, flow control valves, silencers, manifolds, and air fittings. HOMIPNEU's solenoid valve range includes SY series, 4V series, 5/3 way valves, compact 3V valves, and fluid control valves for different systems.

For a complete pneumatic circuit, buyers should also check air preparation components and tube connections. A good valve cannot perform well if the air supply is dirty or the tubing restricts flow.

FAQ

What is a 5/2 way solenoid valve used for?

A 5/2 way solenoid valve is mainly used to control double-acting pneumatic cylinders. It directs compressed air to one side of the cylinder while exhausting the other side.

Can a 5/2 valve control a single-acting cylinder?

It can sometimes be adapted, but a 3/2 way valve is usually a better and simpler choice for single-acting cylinders.

Why does my 5/2 solenoid valve click but not switch air?

Possible causes include low pilot pressure, blocked pilot passages, wrong voltage, spool contamination, or incorrect piping. Check pressure and air quality before replacing the coil.

Should I choose single solenoid or double solenoid?

Choose single solenoid when a spring-return default position is required. Choose double solenoid when the valve needs two electrical commands and may hold the last position.

Does port size decide cylinder speed?

Port size affects speed, but it is not the only factor. Tube size, fittings, exhaust silencers, flow controls, cylinder bore, and air supply pressure also matter.

Conclusion

5/2 way solenoid valves are the standard choice for double-acting pneumatic cylinder control. Good selection means checking valve function, flow, pressure, voltage, installation space, and fail-safe behavior. When the valve, cylinder, tube, and fittings are matched correctly, the machine moves faster, leaks less, and becomes easier to maintain.
