Specifications
| Parameter | Description |
|---|---|
| Product Name | Rotary Pneumatic Cylinder |
| Series | SRC Series |
| Cylinder Type | Rotary Clamping Cylinder |
| Rotation Angle | 90° |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Body Material | Aluminum Alloy |
| Motion Type | Rotary Clamping Motion |
| Mounting Type | ISO Standard Mounting |
| Structure Type | Rotary Swing Clamp Structure |
| Applications | Clamping / Positioning / Fixture Automation |

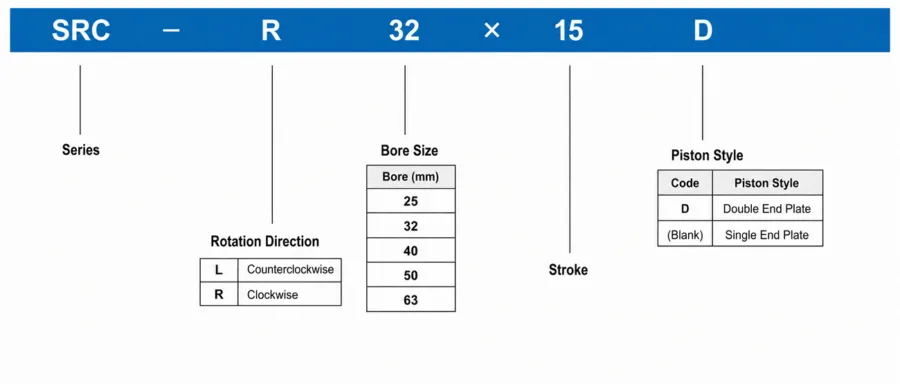

How to order
Product Features
Rotary Clamping Motion
The SRC Series is designed for rotary clamping movement in automated fixtures, positioning devices, and transfer equipment.
Compact Cylinder Structure
The compact body design helps reduce installation space while supporting stable pneumatic clamping operation.
Stable Swing Clamp Performance
Provides controlled rotary movement for workpiece holding, alignment, and fixture automation.
Durable Aluminum Alloy Body
The aluminum alloy housing supports lightweight installation and reliable long-term use in industrial environments.
Automation-Friendly Installation
ISO standard mounting supports practical integration into jigs, fixtures, machine tools, and automated production equipment.
Reliable Pneumatic Control
Suitable for repeated clamping, releasing, positioning, and holding tasks in industrial automation systems.
Applications
Fixture Clamping Systems
Used for workpiece clamping and release in automated fixtures and tooling systems.
Machine Tool Automation
Suitable for CNC loading, unloading, positioning, and workpiece holding applications.
Transfer Equipment
Applied in transfer systems requiring compact rotary clamping movement.
Assembly Automation
Used for part holding, positioning, and process fixture control in assembly lines.
Industrial Handling Systems
Suitable for automated clamping, alignment, and material handling applications.
Why Choose HOMIPNEU
- Stable rotary pneumatic cylinder manufacturing quality
- Compact structure for fixture and machine tool integration
- ISO standard mounting for easier equipment installation
- Aluminum alloy body for lightweight industrial use
- Support for customized clamping directions and mounting dimensions
- Reliable supply for bulk industrial orders
- Suitable for automation equipment manufacturers and system integrators
- Practical support for pneumatic clamping applications
FAQ
What is the SRC rotary pneumatic cylinder used for?
The SRC Series is used for rotary clamping, positioning, fixture control, machine tool automation, and workpiece holding applications.
Does this page include compatible brand wording?
No. Since no confirmed fully identical priority-brand SRC Series match was verified, compatible, replacement, and interchangeable wording is not used.
What type of motion does the SRC Series provide?
It provides rotary clamping motion, commonly used where a workpiece needs to be clamped after a swing or rotary movement.
Is ISO standard mounting included?
Yes, the specification table includes ISO Standard Mounting for easier integration into industrial automation equipment.
Can customized clamping configurations be supported?
Yes, customized clamping directions, mounting dimensions, and application-specific pneumatic solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for SRC Series rotary pneumatic cylinders, including customized clamping directions, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and system integrators.
