Specifications
| Parameter | Description |
|---|---|
| Product Name | Pneumatic Lever Clamp Cylinder |
| Series | JGL / ALC Series |
| Cylinder Type | Press Down Clamp Cylinder |
| Motion Type | Lever Press Down Motion |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Bore Size Range | 25mm~100mm |
| Body Material | Aluminum Alloy |
| Structure Type | Lever Clamping Structure |
| Magnetic Ring | JGL: With Magnet / ALC: Without Magnet |
| Mounting Type | ISO Standard Mounting |
| Applications | Fixtures / Welding / Holding Systems |

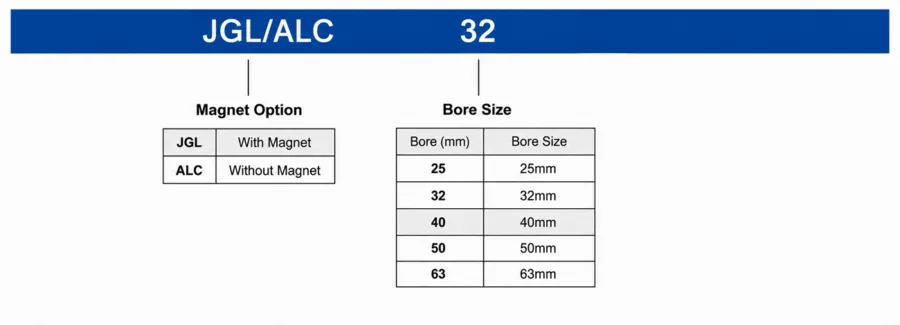

How to order
Product Features

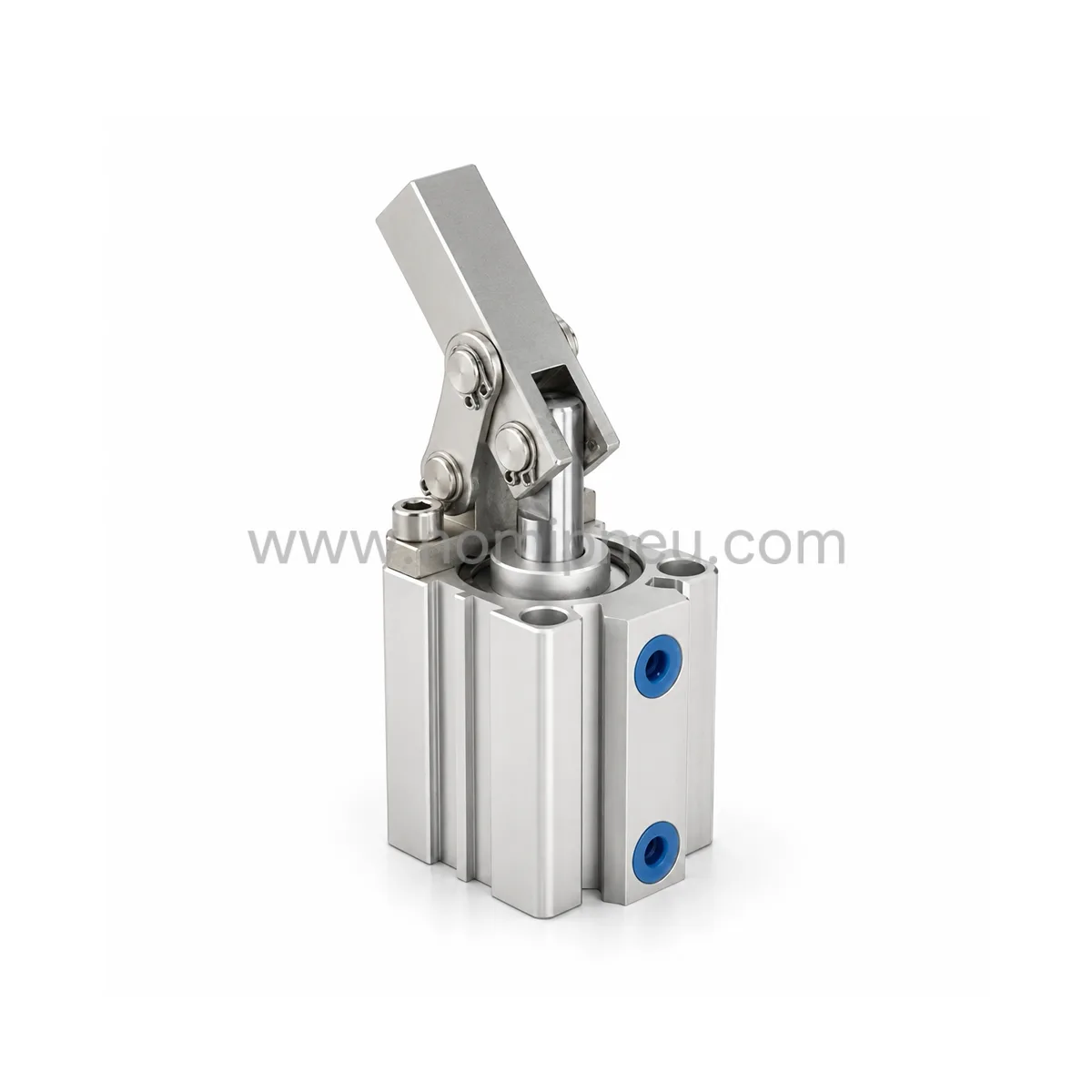

Lever Press Down Clamping Structure
The JGL / ALC Series uses a lever clamping mechanism designed for stable workpiece holding and fixture automation applications.
JGL with Magnetic Ring Design
The JGL version includes a magnetic ring structure suitable for auto switch sensing and pneumatic position detection applications.
ALC without Magnetic Ring
The ALC version is designed without a magnetic ring for standard pneumatic clamping and holding applications.
Stable Pneumatic Clamping Motion
Provides smooth press-down movement for repeated clamping and release operations in industrial automation systems.
Compact Fixture Integration
The compact body structure helps simplify installation into fixtures, assembly equipment, and transfer systems.
Durable Aluminum Alloy Housing
Manufactured with aluminum alloy construction for lightweight durability and long-term industrial operation.
ISO Standard Mounting
ISO standard mounting supports practical installation into automation equipment and industrial fixture systems.
Applications
Welding Fixtures
Used for stable workpiece holding during welding and positioning operations.
Assembly Automation
Suitable for part fixing, positioning, and clamping in automated assembly equipment.
Transfer and Positioning Systems
Applied in transfer lines and positioning fixtures requiring pneumatic holding movement.
Machine Loading Equipment
Used for automated loading, unloading, and fixture holding operations.
Industrial Automation Systems
Suitable for clamping and holding applications in automated production environments.
Why Choose HOMIPNEU
- Stable pneumatic clamp cylinder manufacturing quality
- JGL with magnet and ALC without magnet configurations available
- Compact structure for fixture integration
- Smooth and repeatable clamping movement
- ISO standard mounting for practical installation
- Support for customized clamp arm configurations
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and fixture builders
FAQ
What is the difference between JGL and ALC Series?
The JGL Series includes a magnetic ring for auto switch sensing applications, while the ALC Series is designed without a magnetic ring for standard pneumatic clamping systems.
What is the JGL pneumatic clamp cylinder used for?
It is commonly used in welding fixtures, assembly automation, positioning systems, machine loading equipment, and industrial holding applications.
What type of motion does the JGL / ALC Series provide?
The series provides lever press-down clamping motion for stable workpiece holding and fixture positioning.
What mounting type is used?
The JGL / ALC Series uses ISO standard mounting for easier installation into industrial fixtures and automation equipment.
Can customized clamping solutions be supported?
Yes, customized clamp arms, mounting structures, and application-specific pneumatic clamping solutions can be supported.
