Specifications
| Parameter | Description |
|---|---|
| Product Name | Pneumatic Rotary Actuator |
| Series | RTP Series |
| Actuator Type | Rotary Actuator |
| Rotation Angle | 90° / 180° |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Rotation Structure | Vane Type |
| Mounting Type | Multi-Surface Mounting |
| Positioning Type | Rotary Motion Control |
| Applications | Positioning / Transfer / Automation Systems |

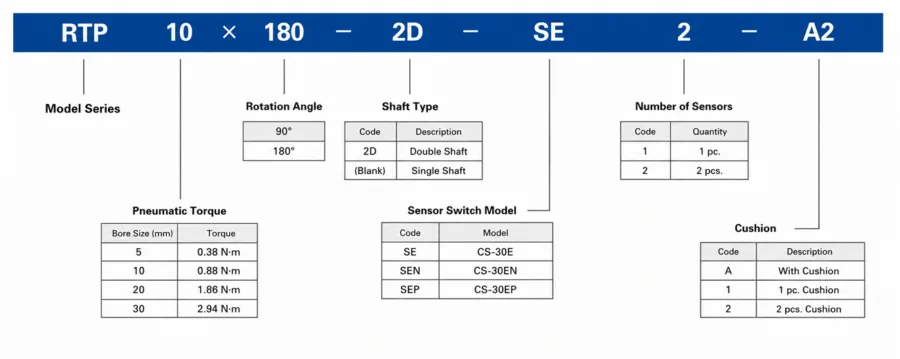

How to order
Product Features
Compact Rotary Structure
The RTP Series adopts a compact vane-type rotary actuator structure suitable for industrial automation systems with limited installation space.
Stable Rotary Motion Performance
Provides smooth and repeatable rotary movement for positioning, transfer, and directional control applications.
Vane Type Rotary Mechanism
The vane rotary structure supports stable torque transmission and efficient pneumatic rotary operation.
Durable Aluminum Alloy Housing
Manufactured with lightweight aluminum alloy construction for continuous industrial automation environments.
Flexible Installation Configuration
Supports multi-direction mounting for easier integration into transfer systems and automation machinery.
Suitable for Industrial Rotary Automation Applications
Designed for automated rotary positioning, directional transfer, and motion control systems.
Reliable Pneumatic Operation
Suitable for repeated rotary movement tasks in automated production and assembly equipment.
Applications
Rotary Positioning Systems
Used for accurate rotary positioning and directional movement in automated production equipment.
Assembly Automation
Suitable for workpiece turning, transfer, and positioning operations in assembly machinery.
Packaging Machinery
Applied in packaging automation systems requiring stable rotary motion control.
Transfer and Sorting Equipment
Used in transfer systems and sorting machinery requiring compact pneumatic rotary actuation.
Industrial Automation Equipment
Suitable for automation systems requiring compact and stable rotary movement control.
Why Choose HOMIPNEU
- Stable pneumatic rotary actuator manufacturing quality
- Compact structure suitable for automation equipment integration
- Smooth and repeatable rotary movement performance
- Support for customized rotation angles and mounting structures
- Reliable delivery for industrial bulk orders
- OEM branding and export packaging support
- Experienced support for pneumatic automation applications
- Suitable for machinery manufacturers and automation integrators
FAQ
What is the RTP pneumatic rotary actuator used for?
The RTP Series is commonly used for rotary positioning, directional transfer, assembly automation, packaging machinery, and industrial motion control applications.
What rotation angles are available?
Common rotation angles include 90° and 180° depending on application requirements.
What type of rotary mechanism does the RTP Series use?
The RTP Series uses a vane type rotary mechanism for stable pneumatic rotary movement and torque output.
Can the RTP Series be used in compact automation equipment?
Yes, the compact structure makes it suitable for automation systems with limited installation space.
Can customized rotary actuator solutions be supported?
Yes, customized rotation angles, mounting configurations, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for pneumatic rotary actuators, including customized rotation angles, mounting structures, logo printing, packaging solutions, and pneumatic automation support for industrial distributors, machinery manufacturers, and automation system integrators.
