Specifications
| Parameter | Description |
|---|---|

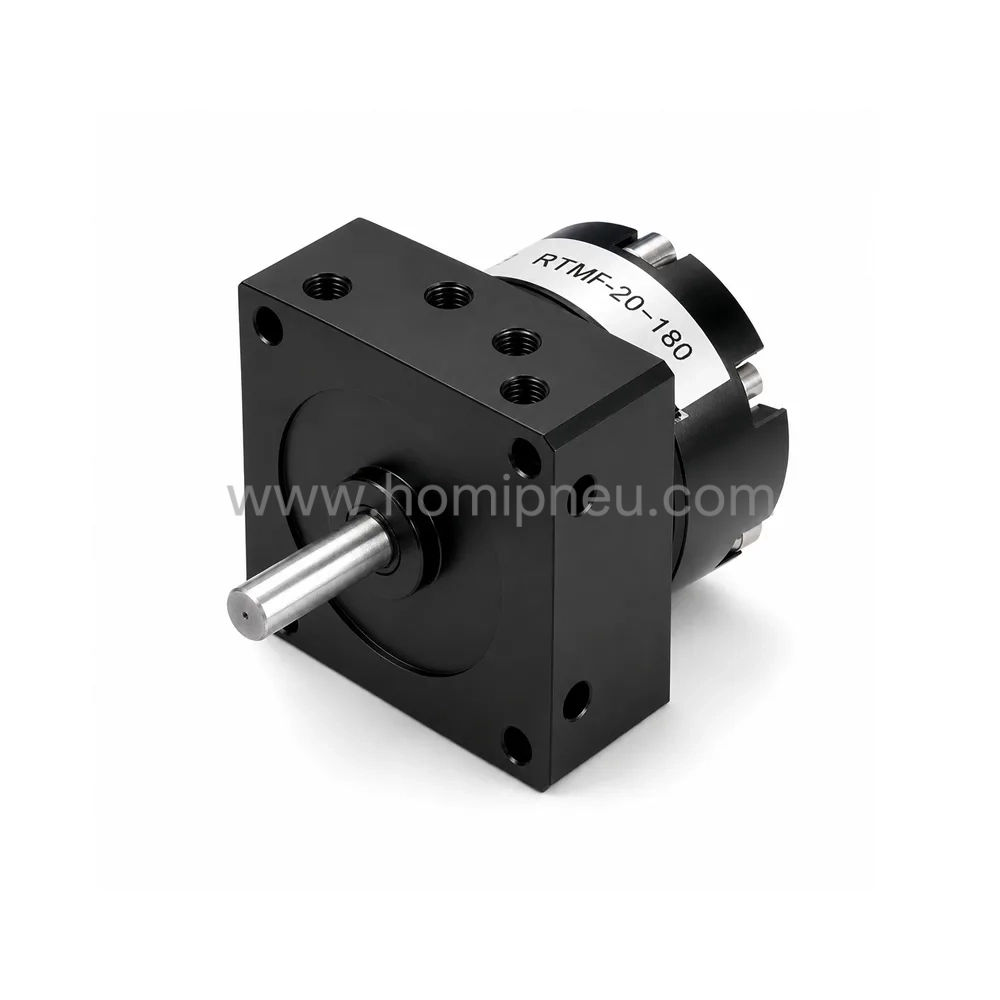

| Product Name | Pneumatic Rotary Actuator |
| Series | RTMF Series |
| Actuation Type | Double Acting Rotary Actuator |
| Structure Type | Vane Rotary Structure |
| Rotation Angle | 90° / 180° / 270° |
| Working Medium | Air |
| Operating Pressure | 0.15~0.7 MPa |
| Body Material | Aluminum Alloy |
| Ambient Temperature | 0~50°C |
| Mounting Type | Flange Mounting |
| Applications | Positioning / Clamping / Transfer Systems |

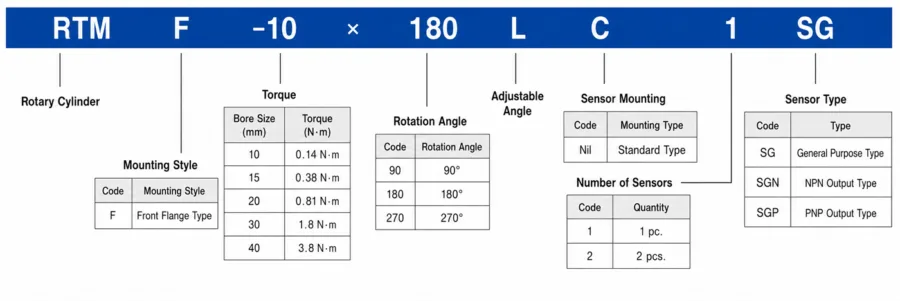

How to order
Product Features
Compact Rotary Structure
Designed with a compact vane rotary mechanism for space-saving pneumatic motion control.
Stable Rotary Motion
Provides smooth angular movement and reliable positioning performance during operation.
Reliable Torque Output
Delivers stable rotary force for continuous industrial automation applications.
Flange Mounting Design
Features flange mounting structure for convenient installation and equipment integration.
Durable Aluminum Alloy Body
Manufactured with durable aluminum alloy construction for long service life and dependable performance.
Multiple Rotation Angle Options
Available with 90°, 180°, and 270° rotation configurations for different automation requirements.
Suitable for Continuous Automation
Designed for transfer systems, positioning devices, and industrial rotary motion control applications.
Applications
Industrial Automation Systems
Used for rotary positioning and angular motion control in automated machinery systems.
Clamping Equipment
Suitable for fixture rotation and pneumatic clamping applications.
Material Handling Equipment
Provides stable angular positioning for transfer and handling systems.
Packaging Machinery
Used for rotary motion control in packaging automation equipment.
Assembly Automation
Supports repeated rotary positioning in industrial assembly systems.
Why Choose HOMIPNEU
- Compact vane rotary actuator structure
- Smooth rotary motion and stable torque output
- Multiple rotation angle configurations
- Durable aluminum alloy body construction
- Flange mounting for easy equipment integration
- Suitable for continuous industrial automation
- OEM & ODM customization services
- Professional pneumatic actuator manufacturing support
FAQ
What applications are suitable for RTMF pneumatic rotary actuators?
They are commonly used in positioning systems, transfer equipment, clamping devices, packaging machinery, and industrial automation applications.
What rotation angles are available?
Standard rotation angle options include 90°, 180°, and 270° depending on model configuration.
What type of mounting structure is used?
The RTMF Series uses a flange mounting structure for stable installation and easier industrial equipment integration.
What type of actuator structure is used?
The RTMF Series uses a vane rotary actuator structure for compact rotary motion control and stable torque output.
Can OEM and ODM customization be supported?
Yes, OEM and ODM services are available, including customized rotation angles, mounting structures, logo branding, and packaging solutions.
OEM & ODM Support
HOMIPNEU provides professional OEM and ODM manufacturing services for pneumatic rotary actuators, including customized rotation angles, mounting structures, logo branding, packaging solutions, and industrial automation support for distributors, machinery manufacturers, and pneumatic system integrators.
