Specifications
| Parameter | Description |
|---|---|

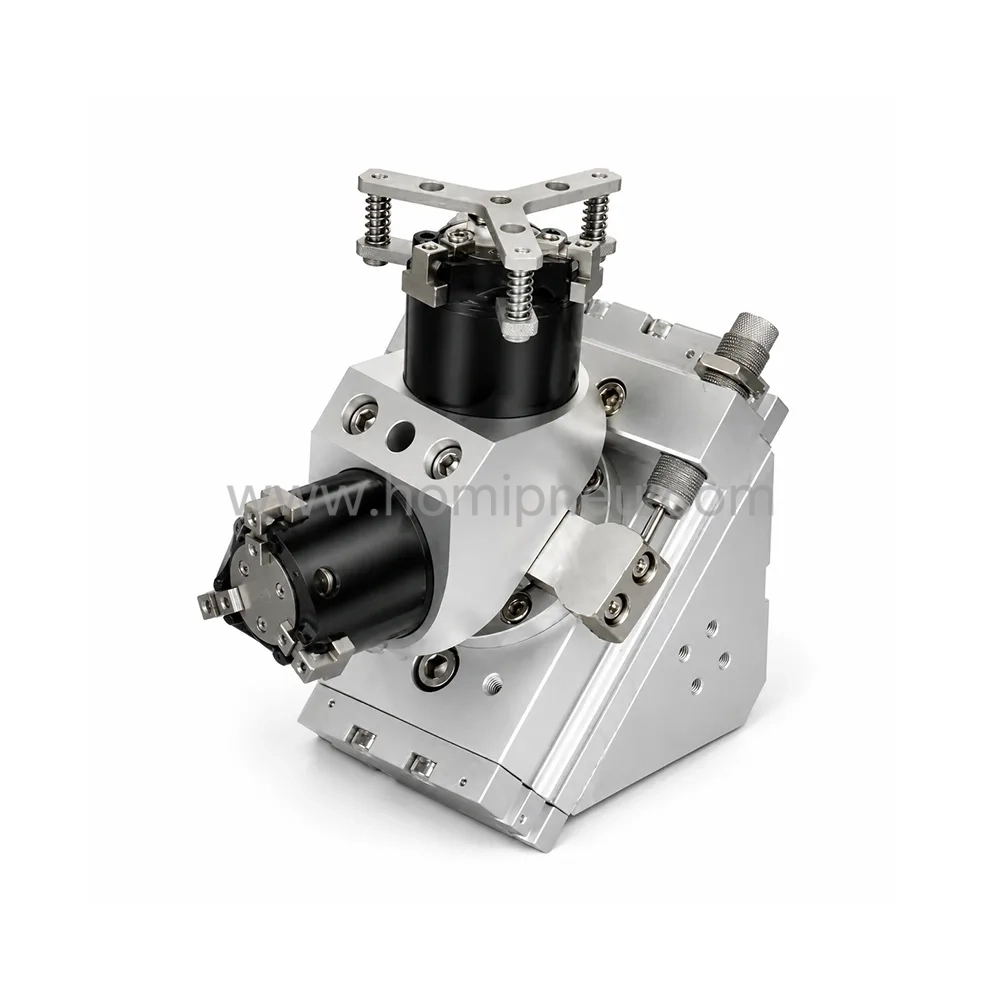

| Product Name | Pneumatic Rotating Clamping Cylinder |
| Series | RML Series |
| Cylinder Type | Rotating Clamp Cylinder |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Clamp Motion | Rotary and Clamping Motion |
| Mounting Type | Multi-Surface Mounting |
| Structure Type | Compact Pneumatic Clamp Structure |
| Applications | Clamping / Fixture / Positioning Systems |

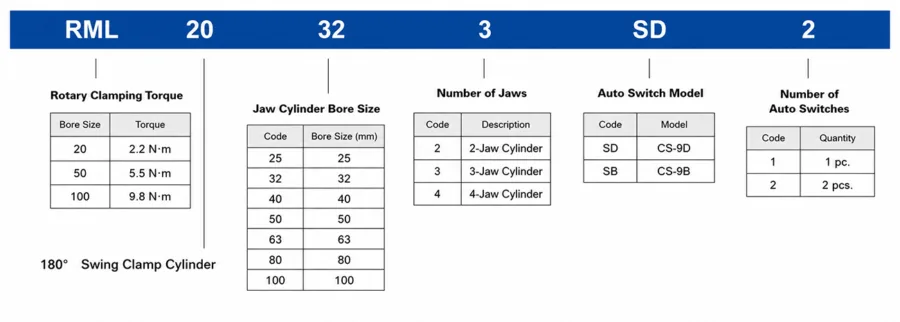

How to order
Product Features
Compact Rotating Clamp Structure
The RML Series adopts a compact rotating clamp structure suitable for fixture systems and automation equipment with limited installation space.
Stable Clamping Performance
Provides stable clamping force and repeatable positioning performance for automated production applications.
Integrated Rotary and Clamping Motion
Combines rotary motion and clamping action for efficient workpiece positioning and holding operations.
Durable Aluminum Alloy Housing
Manufactured with lightweight aluminum alloy construction for continuous industrial automation environments.
Flexible Equipment Integration
Supports multi-direction mounting for easier integration into welding fixtures, assembly systems, and transfer equipment.
Suitable for Industrial Fixture Applications
Designed for industrial clamping and positioning systems requiring compact pneumatic rotary actuation.
Reliable Pneumatic Operation
Suitable for repeated clamping and releasing operations in automated manufacturing environments.
Applications
Welding Fixture Systems
Used for stable workpiece clamping and positioning in automated welding applications.
Assembly Automation
Suitable for component fixing and positioning operations in assembly machinery.
Transfer and Positioning Equipment
Applied in transfer systems requiring repeatable pneumatic clamping control.
Industrial Jigs and Fixtures
Used in industrial fixture systems requiring compact rotary clamping operation.
Automated Production Lines
Suitable for automation equipment requiring stable pneumatic clamping and positioning performance.
Why Choose HOMIPNEU
- Stable pneumatic clamp cylinder manufacturing quality
- Compact structure suitable for fixture automation systems
- Smooth and repeatable clamping operation
- Support for customized clamp structures and mounting dimensions
- Reliable delivery for industrial bulk orders
- OEM branding and export packaging support
- Experienced support for pneumatic automation applications
- Suitable for machinery manufacturers and automation integrators
FAQ
What is the RML rotating clamping cylinder used for?
The RML Series is commonly used for welding fixtures, assembly automation, transfer systems, industrial jigs, and automated clamping applications.
How does a rotating clamping cylinder work?
The cylinder performs rotary movement to clear the work area before applying clamping force for secure workpiece holding.
Can the RML Series be used in compact fixture systems?
Yes, the compact structure makes it suitable for automation equipment and fixture systems with limited installation space.
What working pressure range is supported?
The typical operating pressure range is approximately 0.1~1.0 MPa depending on application requirements.
Can customized rotating clamp solutions be supported?
Yes, customized mounting configurations, clamp arm structures, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for pneumatic rotating clamping cylinders, including customized clamp arm structures, mounting dimensions, logo printing, packaging solutions, and pneumatic automation support for industrial distributors, machinery manufacturers, and automation system integrators.
