Specifications
| Parameter | Description |
|---|---|

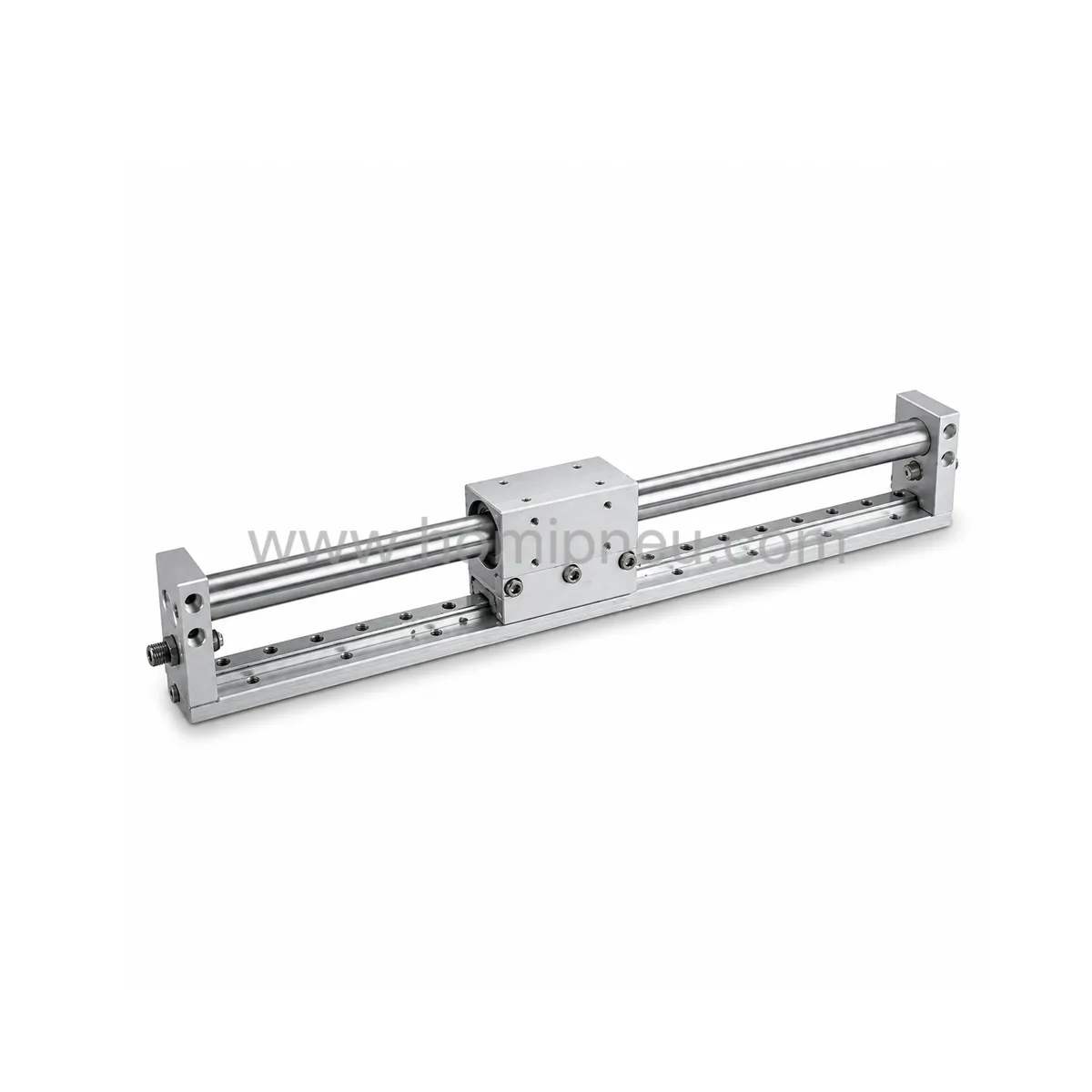

| Product Name | Magnetically Coupled Rodless Cylinder |
| Series | RMH Series |
| Cylinder Type | Magnetic Rodless Pneumatic Cylinder |
| Motion Type | Long Stroke Linear Motion |
| Drive Structure | Magnetic Coupling Drive |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.12~0.7 MPa |
| Body Material | Aluminum Alloy |
| Structure Type | Magnetically Coupled Rodless Structure |
| Cushion Type | Adjustable Pneumatic Cushion |
| Mounting Type | ISO Standard Mounting |
| Compatible with | Airtac RMH Series |
| Applications | Transfer / Positioning / Sliding Systems |

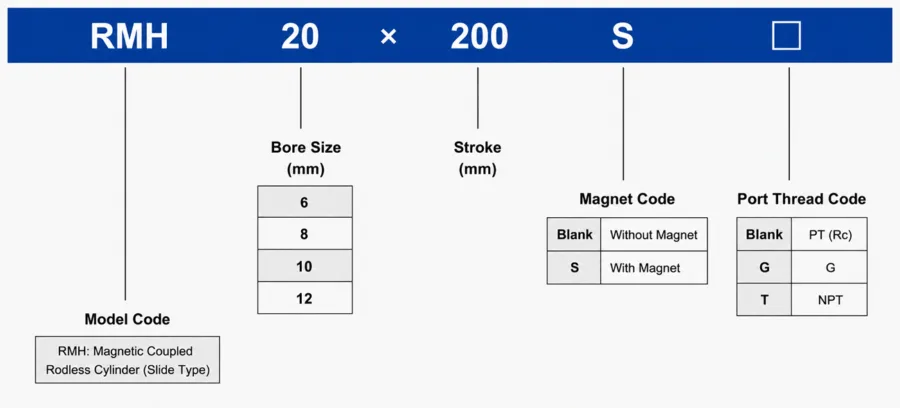

How to order
Product Features
Magnetically Coupled Rodless Structure
The RMH Series uses magnetic coupling technology to transfer piston movement externally without using a traditional piston rod.
Compact Long Stroke Design
Suitable for applications requiring long linear movement while reducing machine installation space.
Stable Linear Motion Performance
Provides smooth and repeatable linear movement for transfer, positioning, and automation operations.
Space-Saving Automation Structure
The rodless structure helps reduce total equipment length compared with conventional rod cylinders.
Sealed Magnetic Coupling Design
The enclosed magnetic coupling structure helps reduce dust intrusion and supports cleaner operating environments.
Suitable Replacement for Airtac RMH Series
Designed for rodless pneumatic cylinder applications requiring replacement for Airtac RMH Series models.
Easy Automation Equipment Integration
ISO standard mounting supports installation into transfer systems, packaging machinery, positioning units, and industrial automation equipment.
Applications
Transfer Systems
Used for long-stroke transfer and sliding movement in automated production lines.
Positioning Equipment
Suitable for stable linear positioning applications in industrial automation systems.
Packaging Machinery
Applied in packaging systems requiring compact long-stroke pneumatic motion.
Material Handling Systems
Used for pushing, pulling, sliding, and transfer movement in automated handling equipment.
Compact Automation Equipment
Suitable for machinery requiring space-saving linear motion solutions.
Why Choose HOMIPNEU
- Stable rodless cylinder manufacturing quality
- Compact structure for long-stroke applications
- Magnetic coupling design for space-saving installation
- Smooth and repeatable linear movement
- ISO standard mounting for easier equipment integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the RMH Series interchangeable with Airtac RMH Series?
Yes, the RMH rodless cylinder is designed to be interchangeable with Airtac RMH Series in many industrial automation applications.
What is the RMH rodless cylinder used for?
It is commonly used for transfer, positioning, pushing, pulling, sliding, and long-stroke automation applications.
What type of drive structure does the RMH Series use?
The RMH Series uses a magnetically coupled rodless structure for external carriage movement without a traditional piston rod.
Why use a rodless cylinder instead of a standard cylinder?
Rodless cylinders help reduce installation space while supporting longer stroke movement compared with traditional rod-type cylinders.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for RMH Series rodless pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial system integrators.
