Specifications
| Parameter | Description |
|---|---|

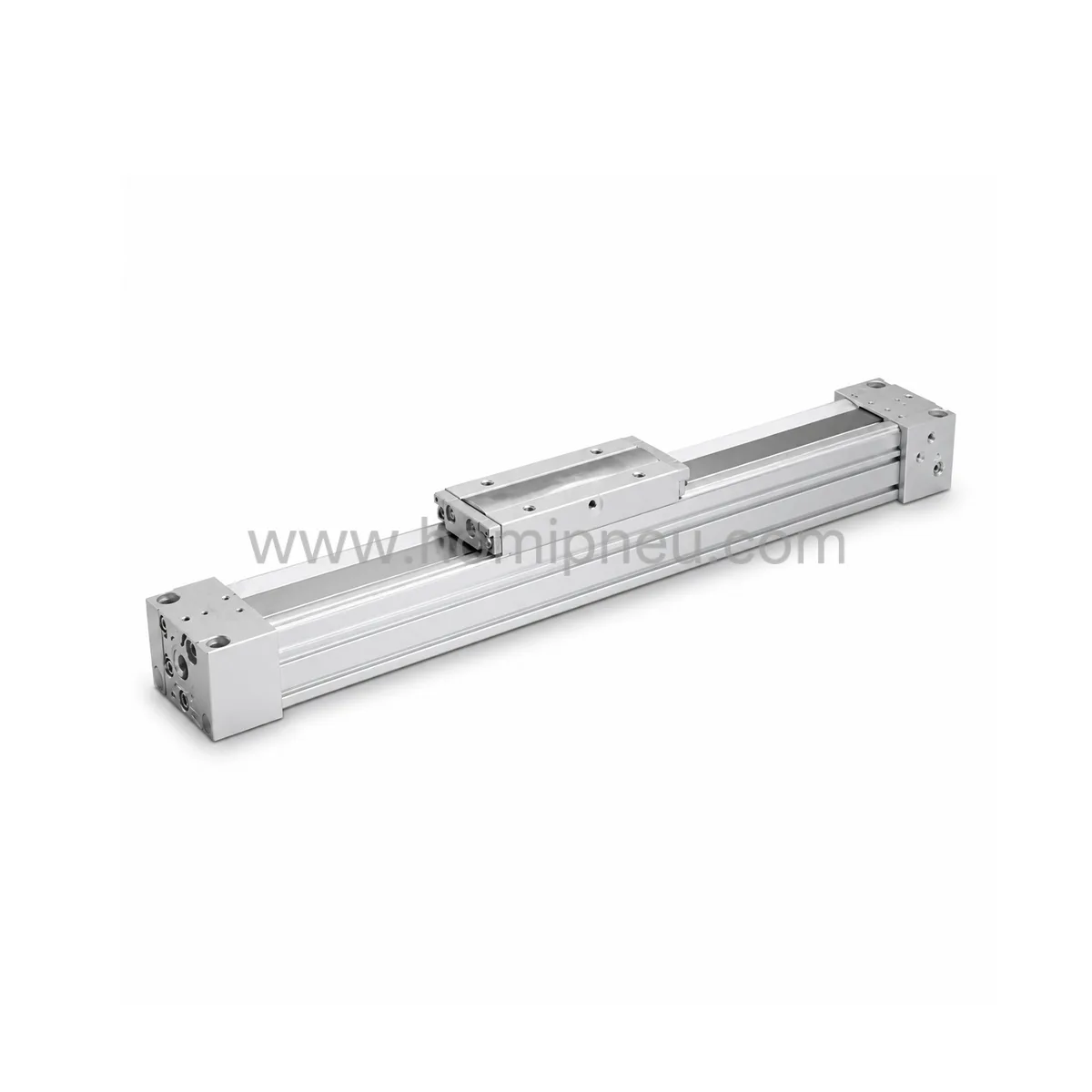

| Product Name | Mechanically Jointed Rodless Cylinder |
| Series | MY1B Series |
| Alternative Model | RMS Series |
| Cylinder Type | Rodless Pneumatic Cylinder |
| Motion Type | Long Stroke Linear Motion |
| Drive Structure | Mechanical Joint Drive |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.8 MPa |
| Body Material | Aluminum Alloy |
| Guide Type | Basic Rodless Structure |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MY1B Series / Airtac RMS Series |
| Applications | Transfer / Sliding / Positioning Systems |

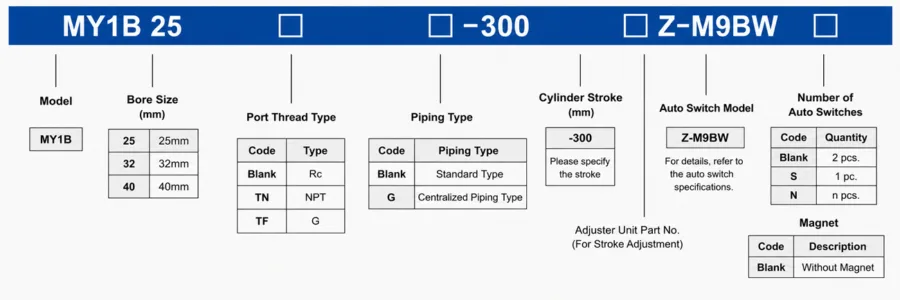

How to order
Product Features
Mechanically Jointed Rodless Structure
The MY1B Series uses a mechanically coupled carriage structure to transfer piston movement externally without a traditional piston rod.
Compact Long Stroke Design
Suitable for applications requiring long linear travel while reducing installation space compared with conventional cylinders.
Stable Linear Motion Performance
Provides smooth and repeatable linear movement for transfer, sliding, and positioning operations.
Space-Saving Automation Solution
Rodless structure helps reduce total equipment length in automation machinery and transfer systems.
Durable Aluminum Alloy Construction
Manufactured with aluminum alloy body construction for reliable industrial automation use.
Suitable Replacement for SMC MY1B Series and Airtac RMS Series
Designed for rodless pneumatic cylinder applications requiring replacement for SMC MY1B Series and Airtac RMS Series models.
Easy Equipment Integration
ISO standard mounting supports installation into transfer systems, positioning units, packaging machinery, and automated handling equipment.
Applications
Transfer Systems
Used for long-stroke transfer and sliding movement in automated production lines.
Positioning Equipment
Suitable for stable linear positioning applications in industrial automation systems.
Packaging Machinery
Applied in packaging systems requiring compact long-stroke pneumatic motion.
Material Handling Systems
Used for pushing, pulling, sliding, and transfer movement in automated handling equipment.
Compact Automation Equipment
Suitable for machinery requiring space-saving linear motion solutions.
Why Choose HOMIPNEU
- Stable rodless cylinder manufacturing quality
- Compact structure for long-stroke applications
- Mechanically jointed design for reliable linear motion
- Smooth and repeatable movement performance
- ISO standard mounting for easier equipment integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the MY1B Series interchangeable with SMC MY1B Series and Airtac RMS Series?
Yes, the MY1B rodless cylinder is designed to be interchangeable with SMC MY1B Series and Airtac RMS Series in many industrial automation applications.
What is the MY1B rodless cylinder used for?
It is commonly used for transfer, positioning, pushing, pulling, and long-stroke linear automation applications.
What type of drive structure does the MY1B Series use?
The MY1B Series uses a mechanically jointed carriage structure for external linear movement.
Why use a rodless cylinder instead of a standard cylinder?
Rodless cylinders help reduce installation space while supporting longer stroke movement compared with traditional rod-type cylinders.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MY1B Series rodless pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial system integrators.
