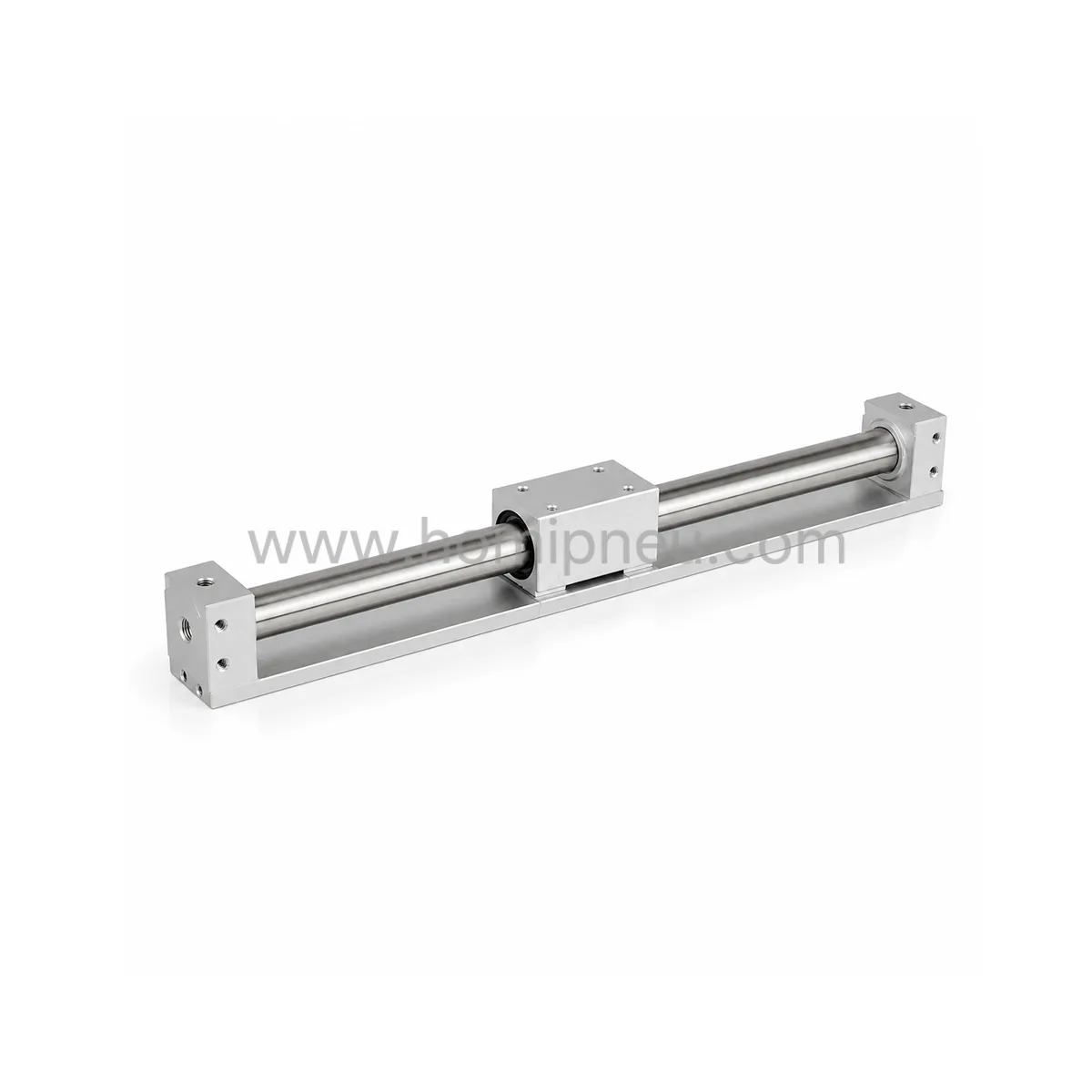

Specifications
| Parameter | Description |
|---|---|
| Product Name | Magnetically Coupled Rodless Cylinder |
| Series | CY1R Series |
| Alternative Models | CY3R Series / RMS Series |
| Cylinder Type | Magnetic Rodless Pneumatic Cylinder |
| Motion Type | Long Stroke Linear Motion |
| Drive Structure | Magnetic Coupling Drive |
| Guide Type | Direct Mount Guide Structure |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.12~0.7 MPa |
| Body Material | Aluminum Alloy |
| Structure Type | Magnetically Coupled Rodless Structure |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CY1R Series / SMC CY3R Series / Airtac RMS Series |
| Applications | Transfer / Positioning / Long Stroke Automation Systems |

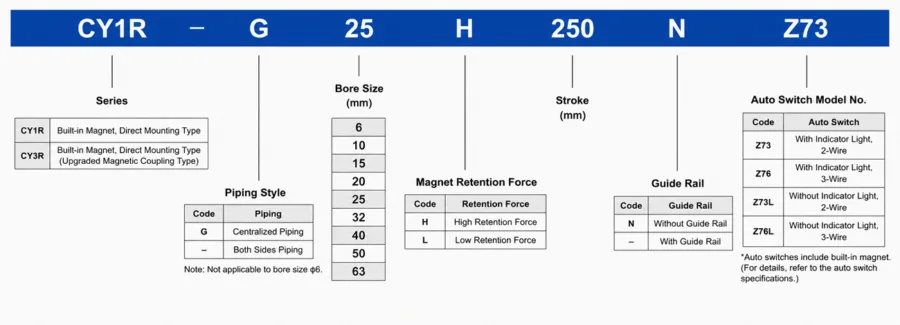

How to order
Product Features
Magnetically Coupled Rodless Structure
The CY1R Series uses magnetic coupling technology to transfer piston movement externally without using a traditional piston rod.
Direct Mount Guide Design
The direct mount structure helps simplify installation while maintaining compact dimensions for automation equipment.
Compact Long Stroke Motion
Suitable for applications requiring long linear travel while reducing machine installation space.
Smooth Linear Movement Performance
Provides stable and repeatable linear motion for transfer, positioning, and automation operations.
Dust-Resistant Sealed Structure
The magnetic coupling structure helps isolate the internal piston from external contaminants for cleaner operation.
Suitable Replacement for SMC CY1R Series, SMC CY3R Series, and Airtac RMS Series
Designed for rodless pneumatic cylinder applications requiring replacement for SMC CY1R Series, SMC CY3R Series, and Airtac RMS Series models.
Easy Automation Equipment Integration
ISO standard mounting supports installation into transfer systems, positioning equipment, packaging machinery, and automated handling systems.
Applications
Transfer Systems
Used for long-stroke transfer and movement operations in automated production lines.
Positioning Equipment
Suitable for stable linear positioning tasks in industrial automation machinery.
Packaging Machinery
Applied in packaging systems requiring compact long-stroke pneumatic motion.
Material Handling Systems
Used for pushing, pulling, sliding, and transfer movement in handling equipment.
Compact Automation Equipment
Suitable for machinery requiring space-saving linear motion solutions.
Why Choose HOMIPNEU
- Stable rodless cylinder manufacturing quality
- Compact structure for long-stroke applications
- Magnetic coupling design for space-saving installation
- Smooth and repeatable linear movement
- ISO standard mounting for easier equipment integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CY1R Series interchangeable with SMC CY1R Series, CY3R Series, and Airtac RMS Series?
Yes, the CY1R rodless cylinder is designed to be interchangeable with SMC CY1R Series, SMC CY3R Series, and Airtac RMS Series in many automation applications.
What is the CY1R rodless cylinder used for?
It is commonly used for long-stroke transfer, positioning, pushing, pulling, and linear automation applications.
What type of guide structure does the CY1R Series use?
The CY1R Series uses a direct mount guide structure with magnetic coupling drive for compact guided linear motion.
Why use a rodless cylinder instead of a standard cylinder?
Rodless cylinders help reduce installation space while supporting longer stroke movement compared with traditional rod-type cylinders.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CY1R Series rodless pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial system integrators.
