Specifications
| Parameter | Description |
|---|---|

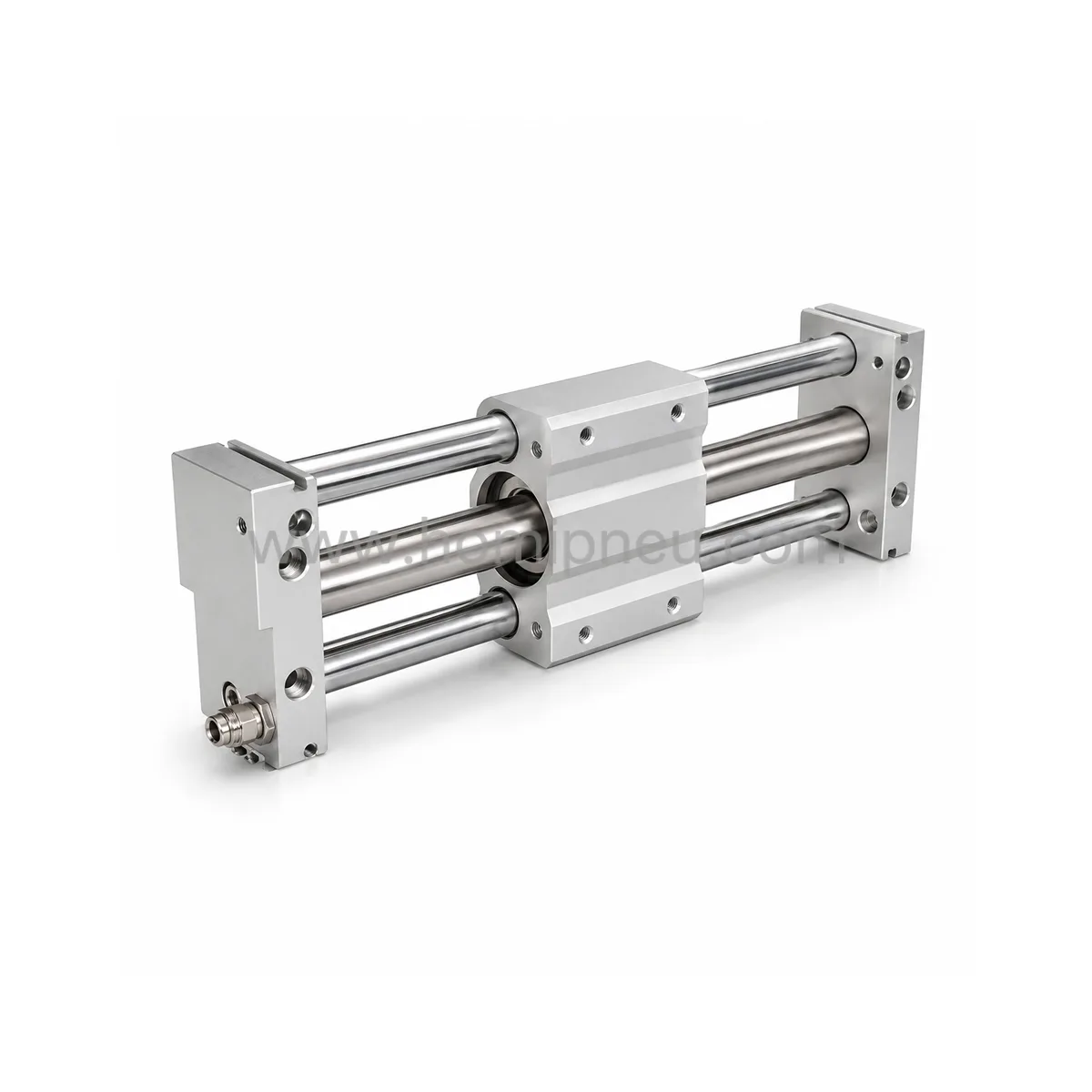

| Product Name | Guided Rodless Pneumatic Cylinder |
| Series | CY1S Series |
| Alternative Model | RMT Series |
| Cylinder Type | Magnetically Coupled Rodless Cylinder |
| Motion Type | Guided Long Stroke Linear Motion |
| Drive Structure | Magnetic Coupling Drive |
| Guide Type | Dual Guide Rod Structure |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~0.7 MPa |
| Body Material | Aluminum Alloy |
| Cushion Type | Adjustable Pneumatic Cushion |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CY1S Series / Airtac RMT Series |
| Applications | Transfer / Positioning / Long Stroke Automation Systems |

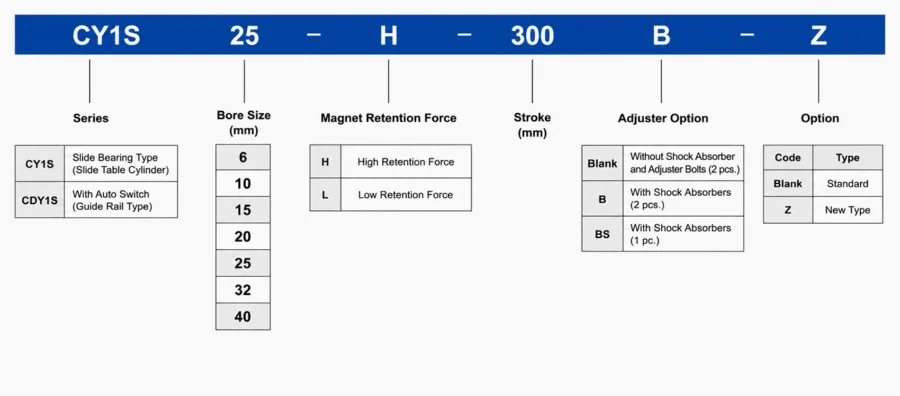

How to order
Product Features
Magnetically Coupled Rodless Structure
The CY1S Series uses magnetic coupling technology to transmit piston movement externally without using a traditional piston rod.
Guided Dual Rod Design
The integrated dual guide rod structure helps improve movement stability and supports side-load applications.
Compact Long Stroke Motion
Suitable for applications requiring long linear travel while reducing installation space compared with conventional cylinders.
Stable Guided Linear Movement
Provides smooth and repeatable guided motion for transfer, positioning, and automation operations.
Dust-Resistant Structure
The sealed magnetic coupling structure helps reduce dust intrusion and supports cleaner operating environments.
Suitable Replacement for SMC CY1S Series and Airtac RMT Series
Designed for guided rodless pneumatic cylinder applications requiring replacement for SMC CY1S Series and Airtac RMT Series models.
Easy Automation Equipment Integration
ISO standard mounting supports installation into transfer systems, packaging equipment, positioning units, and automated handling machinery.
Applications
Transfer Systems
Used for long-stroke transfer and movement operations in automated production lines.
Positioning Equipment
Suitable for stable guided linear positioning tasks in industrial automation machinery.
Packaging Machinery
Applied in packaging systems requiring compact guided pneumatic motion.
Material Handling Systems
Used for pushing, pulling, sliding, and transfer movement in handling equipment.
Compact Automation Equipment
Suitable for machinery requiring space-saving guided linear motion solutions.
Why Choose HOMIPNEU
- Stable rodless cylinder manufacturing quality
- Guided structure for improved movement stability
- Magnetic coupling design for compact installation
- Smooth and repeatable long-stroke motion
- ISO standard mounting for easier equipment integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CY1S Series interchangeable with SMC CY1S Series and Airtac RMT Series?
Yes, the CY1S guided rodless cylinder is designed to be interchangeable with SMC CY1S Series and Airtac RMT Series in many industrial automation applications.
What is the CY1S rodless cylinder used for?
It is commonly used for transfer, positioning, sliding, pushing, pulling, and long-stroke automation applications.
What type of guide structure does the CY1S Series use?
The CY1S Series uses a dual guide rod structure with magnetic coupling drive for stable guided linear motion.
Why use a rodless cylinder instead of a standard cylinder?
Rodless cylinders help reduce installation space while supporting longer stroke movement compared with traditional rod-type cylinders.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CY1S Series guided rodless pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial system integrators.
