Specifications
| Parameter | Description |
|---|---|

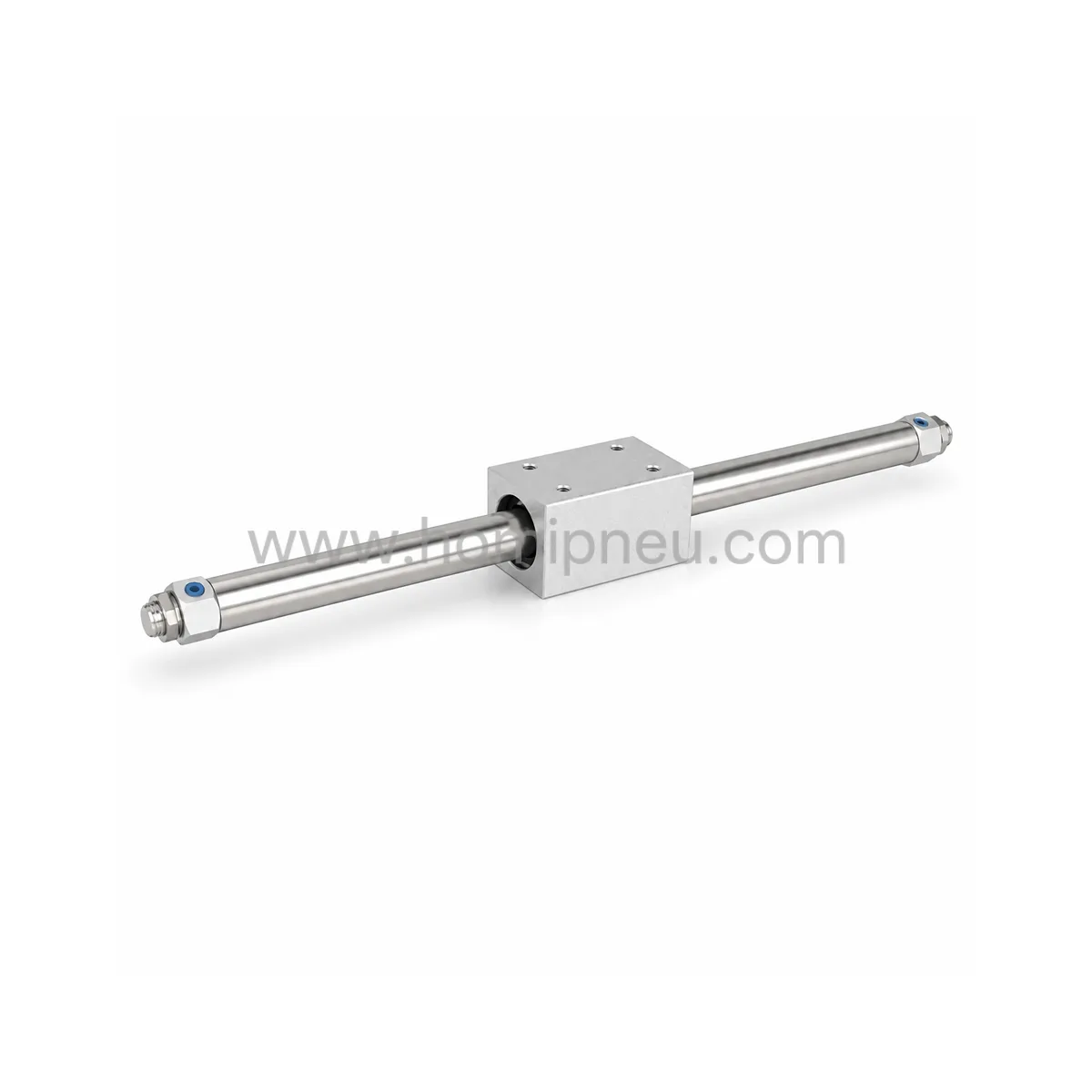

| Product Name | Magnetically Coupled Rodless Cylinder |
| Series | CY1B Series |
| Alternative Models | CY3B Series / RMS Series |
| Cylinder Type | Magnetic Rodless Pneumatic Cylinder |
| Motion Type | Long Stroke Linear Motion |
| Drive Structure | Magnetic Coupling Drive |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.12~0.7 MPa |
| Body Material | Aluminum Alloy |
| Structure Type | Magnetically Coupled Rodless Structure |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CY1B Series / SMC CY3B Series / Airtac RMS Series |
| Applications | Transfer / Positioning / Long Stroke Automation Systems |

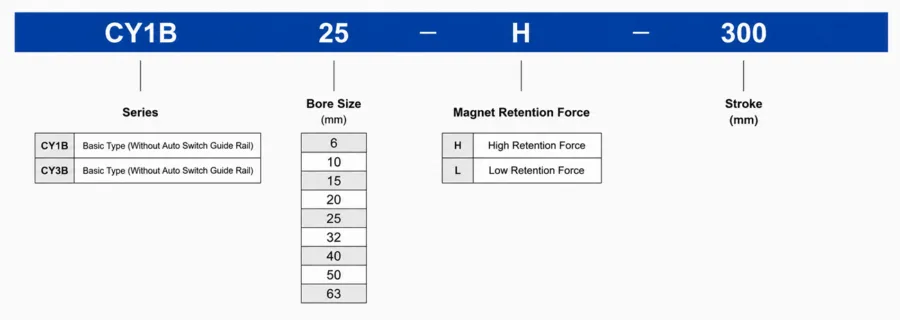

How to order
Product Features
Magnetically Coupled Rodless Structure
The CY1B Series uses magnetic coupling technology to transmit piston movement externally without a piston rod, helping save installation space.
Compact Long Stroke Design
Suitable for applications requiring long linear movement while maintaining a compact machine layout.
Smooth Linear Motion Performance
Provides stable and repeatable linear movement for transfer, positioning, and automation operations.
No External Leakage Structure
The sealed magnetic coupling structure helps reduce dust intrusion and supports cleaner operating environments.
Durable Aluminum Alloy Construction
Manufactured with aluminum alloy body construction for reliable industrial automation use.
Suitable Replacement for SMC CY1B Series, SMC CY3B Series, and Airtac RMS Series
Designed for rodless pneumatic cylinder applications requiring replacement for SMC CY1B Series, SMC CY3B Series, and Airtac RMS Series models.
Easy Automation Equipment Integration
ISO standard mounting supports installation into transfer systems, positioning equipment, packaging machinery, and automated handling systems.
Applications
Transfer Systems
Used for long stroke transfer and movement applications in automated production lines.
Positioning Equipment
Suitable for stable linear positioning operations in industrial automation machinery.
Packaging Machinery
Applied in packaging systems requiring compact long-stroke pneumatic motion.
Material Handling Systems
Used for pushing, pulling, sliding, and transfer movement in handling equipment.
Compact Automation Equipment
Suitable for machinery requiring space-saving linear motion solutions.
Why Choose HOMIPNEU
- Stable rodless cylinder manufacturing quality
- Compact structure for long-stroke motion applications
- Magnetic coupling design for space-saving installation
- Smooth and repeatable linear movement
- ISO standard mounting for easier equipment integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CY1B Series interchangeable with SMC CY1B Series, CY3B Series, and Airtac RMS Series?
Yes, the CY1B rodless cylinder is designed to be interchangeable with SMC CY1B Series, SMC CY3B Series, and Airtac RMS Series in many automation applications.
What is the CY1B rodless cylinder used for?
It is commonly used for long-stroke transfer, positioning, pushing, pulling, and linear automation applications.
What type of drive structure does the CY1B Series use?
The CY1B Series uses a magnetically coupled rodless structure for external carriage movement without a piston rod.
Why use a rodless cylinder instead of a standard cylinder?
Rodless cylinders help reduce installation space while supporting longer stroke movement compared with traditional rod-type cylinders.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CY1B Series rodless pneumatic cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial system integrators.
