Specifications
| Parameter | Description |
|---|---|

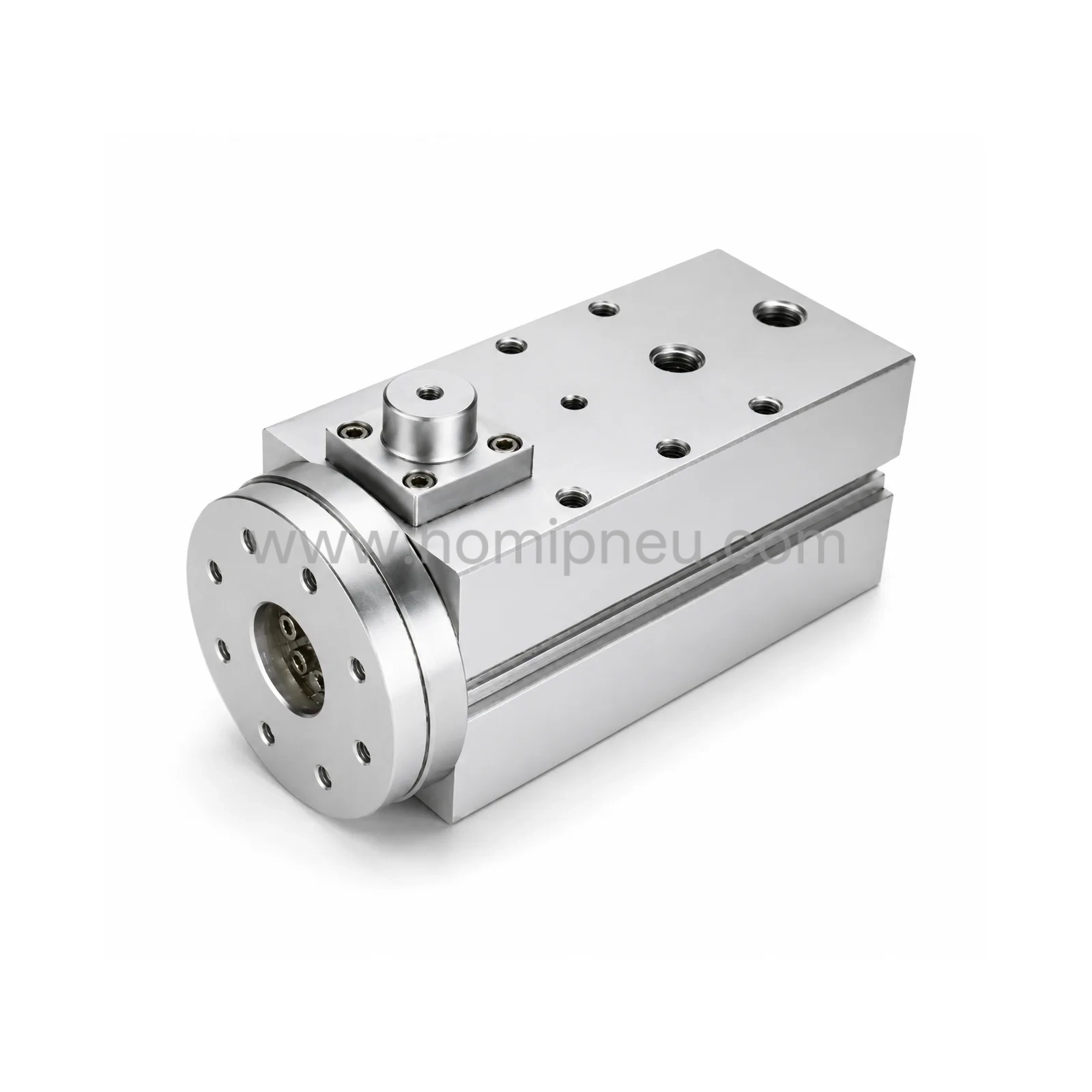

| Product Name | 360 Degree Rotary Cylinder |
| Series | QSW Series |
| Cylinder Type | Pneumatic Rotary Cylinder |
| Rotation Angle | 360° Continuous Rotation |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Rotation Structure | Rack and Pinion Rotary Drive |
| Mounting Type | Multi-Surface Mounting |
| Positioning Type | Rotary Motion Control |
| Applications | Rotary Positioning / Transfer / Automation Systems |
How to order
Product Features
360 Degree Rotary Motion
The QSW Series supports continuous 360 degree rotary movement for industrial automation applications requiring full rotation positioning control.
Compact Rotary Structure
Designed with a compact pneumatic rotary structure suitable for automation systems with limited installation space.
Stable Rotary Positioning Performance
Provides smooth and repeatable rotary motion for transfer, indexing, and directional control operations.
Rack and Pinion Rotary Mechanism
The internal rack and pinion drive structure supports stable torque transmission and reliable rotary movement.
Durable Aluminum Alloy Housing
Manufactured with lightweight aluminum alloy construction for continuous industrial automation environments.
Flexible Equipment Integration
Supports multi-direction mounting for easier installation into transfer equipment and automation machinery.
Suitable for Industrial Rotary Automation Applications
Designed for automated rotary positioning, directional transfer, indexing, and motion control systems.
Applications
Rotary Indexing Systems
Used for full rotation positioning and indexing operations in automated production equipment.
Assembly Automation
Suitable for workpiece turning, directional positioning, and transfer applications in assembly machinery.
Packaging Machinery
Applied in packaging systems requiring stable continuous rotary movement and positioning control.
Transfer and Sorting Equipment
Used in transfer systems and sorting machinery requiring compact pneumatic rotary actuation.
Industrial Automation Equipment
Suitable for automation systems requiring stable 360 degree rotary motion control.
Why Choose HOMIPNEU
- Stable pneumatic rotary cylinder manufacturing quality
- Compact structure suitable for automation equipment integration
- Smooth and repeatable rotary positioning performance
- Support for customized rotation angles and mounting structures
- Reliable delivery for industrial bulk orders
- OEM branding and export packaging support
- Experienced support for pneumatic automation applications
- Suitable for machinery manufacturers and automation integrators
FAQ
What is the QSW 360 degree rotary cylinder used for?
The QSW Series is commonly used for rotary positioning, indexing systems, transfer equipment, assembly automation, and industrial motion control applications.
Does the QSW Series support full 360 degree rotation?
Yes, the QSW Series is designed for continuous 360 degree rotary movement in pneumatic automation systems.
What rotary mechanism is used in the QSW Series?
The QSW Series uses a rack and pinion rotary drive structure for stable pneumatic rotary motion.
Can the QSW Series be used in compact automation equipment?
Yes, the compact structure makes it suitable for automation systems with limited installation space.
Can customized rotary cylinder solutions be supported?
Yes, customized mounting configurations, shaft structures, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for pneumatic rotary cylinders, including customized rotation structures, mounting dimensions, logo printing, packaging solutions, and pneumatic automation support for industrial distributors, machinery manufacturers, and automation system integrators.
