Specifications
| Parameter | Description |
|---|---|
| Product Name | Precision Slide Table Cylinder |
| Series | MXQ Series |
| Alternative Model | HLQ Series |
| Cylinder Type | Pneumatic Slide Table Cylinder |
| Motion Type | Precision Guided Linear Motion |
| Guide Structure | Recirculating Linear Guide |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~0.7 MPa |
| Body Material | Aluminum Alloy |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MXQ Series / Airtac HLQ Series |
| Applications | Positioning / Transfer / Assembly Systems |

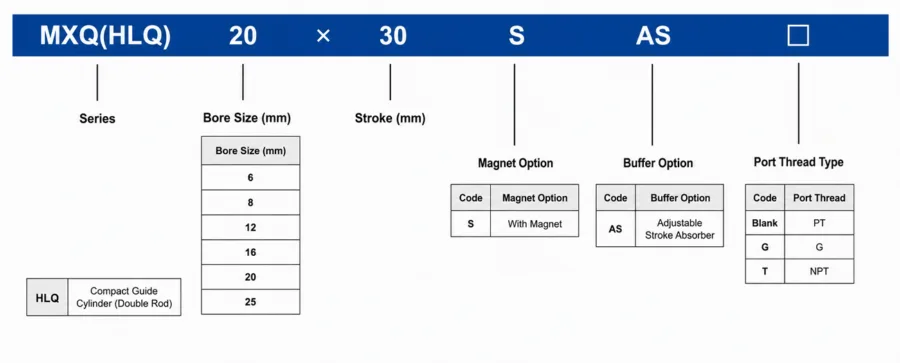

How to order
Product Features
Precision Linear Guide Structure
The MXQ Series integrates a pneumatic cylinder with a recirculating linear guide structure for high rigidity and stable guided motion.
High Precision Linear Motion
Designed for applications requiring accurate positioning, repeatable movement, and smooth slide operation.
Compact Integrated Design
The integrated slide table structure reduces installation space while maintaining stable load support.
High Rigidity Guide Mechanism
The recirculating guide rail design improves motion stability and supports precise parallel movement during repeated cycles.
Durable Aluminum Alloy Construction
Manufactured with lightweight aluminum alloy housing for continuous industrial automation operation.
Suitable Replacement for SMC MXQ Series and Airtac HLQ Series
Designed for precision guided motion applications requiring replacement for SMC MXQ Series and Airtac HLQ Series models.
Easy Automation Equipment Integration
ISO standard mounting supports convenient installation into fixtures, transfer systems, robotic automation units, and precision machinery.
Applications
Precision Positioning Systems
Used for accurate linear positioning and transfer in industrial automation equipment.
Assembly Automation
Suitable for pushing, feeding, alignment, and precision movement in assembly machinery.
Robotic Automation Systems
Applied in compact robotic handling systems requiring stable guided linear motion.
Packaging Machinery
Used in positioning and transfer stations requiring repeatable precision movement.
Fixture and Transfer Equipment
Suitable for industrial fixtures, material transfer systems, and compact automation mechanisms.
Why Choose HOMIPNEU
- Stable precision slide cylinder manufacturing quality
- High rigidity guide structure for precise motion control
- Compact integrated design for limited installation space
- ISO standard mounting for easier machine integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for automation equipment manufacturers and system integrators
FAQ
Is the MXQ Series interchangeable with SMC MXQ Series and Airtac HLQ Series?
Yes, the MXQ Series precision slide table cylinder is designed to be interchangeable with SMC MXQ Series and Airtac HLQ Series in many industrial automation applications.
What is the MXQ precision slide table used for?
It is commonly used for precision positioning, transfer, feeding, alignment, and guided linear motion applications.
What type of guide mechanism does the MXQ Series use?
The MXQ Series uses a recirculating linear guide structure for high rigidity and stable precision motion.
Is it suitable for high precision automation equipment?
Yes, the precision guide structure makes it suitable for compact automation systems requiring stable and repeatable movement.
Can customized stroke and mounting solutions be supported?
Yes, customized stroke lengths, mounting dimensions, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MXQ Series precision slide table cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial automation integrators.
