Specifications
| Parameter | Description |
|---|---|
| Product Name | Pneumatic Semi Rotary Drive |
| Series | MSUB Series |
| Actuation Type | Vane Rotary Actuator |
| Rotation Type | Semi Rotary Motion |
| Rotation Angle | 90° / 180° |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.9 MPa |
| Body Material | Aluminum Alloy |
| Cushion Type | Air Cushion |
| Mounting Type | Standard Industrial Mounting |
| Compatible with | SMC MSUB Series |
| Applications | Positioning / Clamping / Indexing Systems |
Product Features
Compact Semi Rotary Structure
Designed with a compact vane mechanism for space-saving pneumatic rotary motion control.
Stable Rotary Motion
Provides smooth and accurate angular movement for automated positioning and transfer applications.
Durable Aluminum Alloy Housing
Manufactured with high-strength aluminum alloy for reliable industrial performance and long service life.
High Repeatability
Suitable for automation systems requiring stable and repeatable rotary positioning.
Flexible Equipment Integration
Widely used in transfer systems, indexing devices, clamping equipment, and automated production lines.
Easy Industrial Replacement
Ideal replacement for SMC MSUB Series in pneumatic rotary actuator applications.
Reliable Automation Performance
Suitable replacement for compact pneumatic rotary motion systems requiring stable operation.

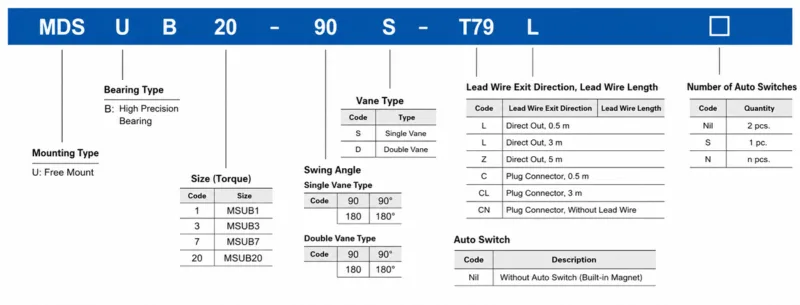

How to order
Applications
Automated Assembly Equipment
Used for rotary positioning and directional movement in industrial automation systems.
Pneumatic Clamping Systems
Suitable for fixture rotation and clamping applications requiring repeatable angular control.
Indexing and Transfer Equipment
Provides stable rotary movement for automated indexing and transfer mechanisms.
Packaging Machinery
Widely used in compact packaging and material handling automation systems.
Industrial Automation Systems
Suitable for high-cycle pneumatic rotary motion control applications.
Why Choose HOMIPNEU
- Compact and reliable vane rotary structure
- Stable torque output and smooth rotary operation
- Durable aluminum alloy construction
- Suitable for high-cycle industrial automation
- Consistent manufacturing quality
- Fast delivery and global supply capability
- OEM & ODM customization services
- Professional pneumatic automation manufacturing experience
FAQ
Is the MSUB Series interchangeable with SMC MSUB Series?
Yes, the MSUB Series pneumatic semi rotary drive is designed to be interchangeable with SMC MSUB Series in many industrial automation applications.
What applications are suitable for pneumatic semi rotary drives?
These actuators are commonly used in positioning, indexing, clamping, transfer systems, and automated assembly equipment.
What rotation angles are available?
Standard rotation angles typically include 90° and 180° depending on application requirements.
What material is used for the actuator body?
The body is generally manufactured from durable aluminum alloy for lightweight and reliable industrial pneumatic applications.
Can OEM and ODM customization be supported?
Yes, OEM and ODM services are available, including customized specifications, logo branding, and packaging solutions.
OEM & ODM Support
HOMIPNEU provides professional OEM and ODM manufacturing services for pneumatic semi rotary drives, including customized specifications, logo branding, packaging solutions, and industrial automation support for distributors, machinery manufacturers, and pneumatic system integrators.
