Specifications
| Parameter | Description |
|---|---|
| Product Name | Pneumatic Rotary Table |
| Series | MSQB Series |
| Actuation Type | Rotary Table Actuator |
| Structure Type | Rack and Pinion Rotary Structure |
| Rotation Angle | 90° / 180° |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Cushion Type | Internal Shock Absorber |
| Mounting Type | Table Mounting Structure |
| Compatible with | SMC MSQB Series |
| Applications | Positioning / Indexing / Transfer Systems |

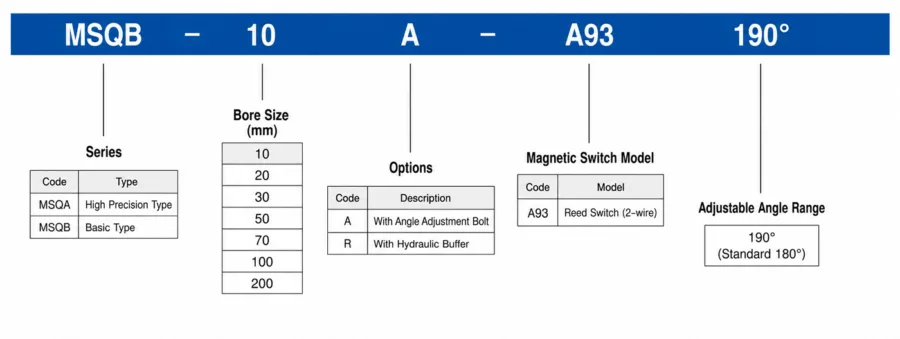

How to order
Product Features
Compact Rotary Table Design
Designed with an integrated rotary table structure for compact automation equipment.
Stable Rotary Positioning
Provides accurate angular positioning and smooth rotary movement during operation.
Rack and Pinion Drive Structure
Delivers reliable torque transmission and stable rotary performance.
Integrated Shock Absorber Design
Helps reduce end-position impact and improves operating stability.
Durable Aluminum Alloy Body
Manufactured with durable aluminum alloy construction for long service life.
Flexible Automation Integration
Suitable for indexing systems, transfer equipment, and automated positioning applications.
Easy Industrial Replacement
Ideal replacement for SMC MSQB Series in pneumatic rotary table applications.
Applications
Indexing Systems
Used for accurate rotary positioning in industrial indexing applications.
Assembly Automation
Suitable for automated assembly systems requiring repeated angular positioning.
Transfer Equipment
Provides stable rotary transfer movement for industrial automation systems.
Packaging Machinery
Used for rotary positioning and transfer control in packaging automation equipment.
Material Handling Systems
Supports compact rotary movement in industrial handling and positioning systems.
Why Choose HOMIPNEU
- Compact rotary table actuator structure
- Stable rotary positioning performance
- Rack and pinion rotary drive design
- Durable aluminum alloy body construction
- Integrated shock absorber for smoother operation
- Suitable for continuous industrial automation
- OEM & ODM customization services
- Professional pneumatic actuator manufacturing support
FAQ
Is the MSQB Series interchangeable with SMC MSQB Series?
Yes, the MSQB Series pneumatic rotary table is designed to be interchangeable with SMC MSQB Series in many industrial automation applications.
What applications are suitable for pneumatic rotary tables?
They are commonly used in indexing systems, assembly automation, transfer equipment, packaging machinery, and positioning systems.
What rotation angles are available?
Standard rotation angle options typically include 90° and 180° depending on model configuration.
What type of drive structure is used?
The MSQB Series uses a rack and pinion rotary drive structure for stable positioning and smooth operation.
Can OEM and ODM customization be supported?
Yes, OEM and ODM services are available, including customized rotation angles, mounting structures, logo branding, and packaging solutions.
OEM & ODM Support
HOMIPNEU provides professional OEM and ODM manufacturing services for pneumatic rotary tables, including customized rotation angles, mounting structures, logo branding, packaging solutions, and industrial automation support for distributors, machinery manufacturers, and pneumatic system integrators.
