Specifications
| Parameter | Description |
|---|---|

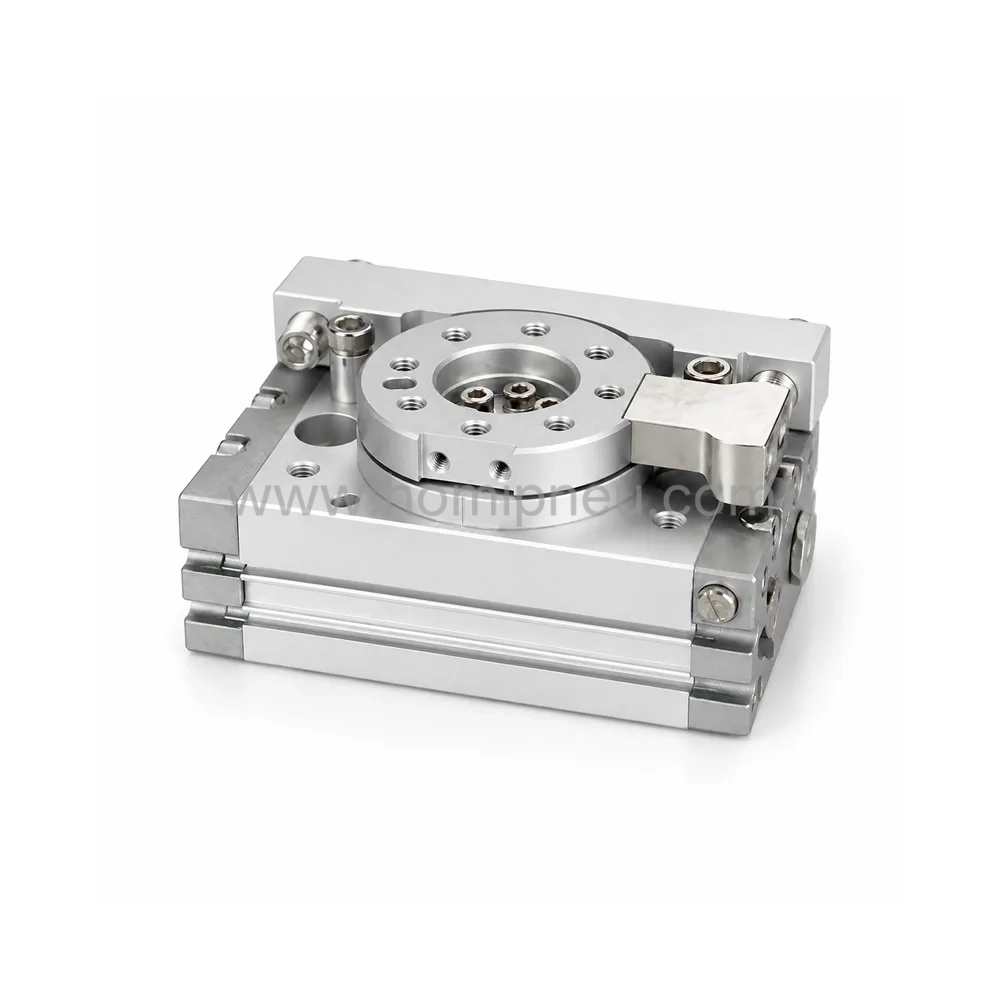

| Product Name | Pneumatic Rotary Table Actuator |
| Series | MSQB Series |
| Actuator Type | Compact Rotary Table |
| Rotation Angle | 90° / 180° |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~1.0 MPa |
| Body Material | Aluminum Alloy |
| Rotation Structure | Rack and Pinion |
| Mounting Type | Multi-Surface Mounting |
| Positioning Type | Rotary Positioning |
| Compatible with | SMC MSQB Series |
| Applications | Indexing / Transfer / Positioning Systems |

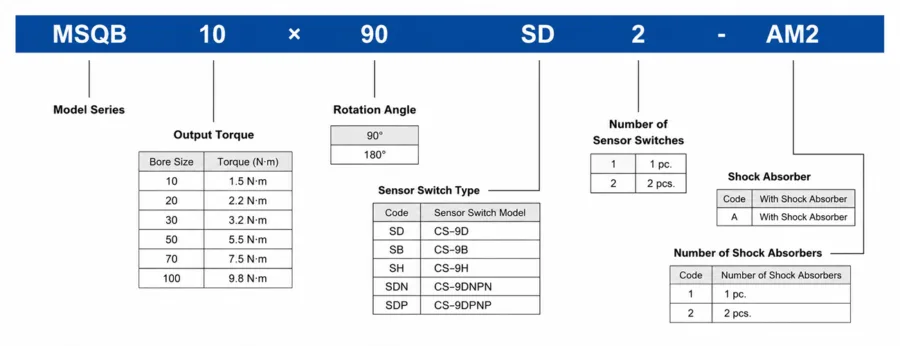

How to order
Product Features
Compact Rotary Table Design
The MSQB Series features a compact rotary table structure suitable for automated positioning and indexing applications with limited installation space.
High Positioning Accuracy
Provides stable rotary positioning performance for transfer, assembly, and indexing systems.
Rack and Pinion Rotation Structure
The internal rack and pinion mechanism supports smooth rotary motion and reliable torque transmission.
Durable Aluminum Alloy Construction
Manufactured with aluminum alloy housing for lightweight durability and long-term industrial operation.
Flexible Installation Configuration
Supports multi-surface mounting for convenient integration into automation equipment and transfer systems.
Suitable Replacement for SMC MSQB Series
Designed for rotary positioning applications requiring replacement for SMC MSQB Series actuators.
Stable Rotary Motion Performance
Suitable for repeated rotary indexing and positioning tasks in automated production environments.
Applications
Rotary Indexing Systems
Used for precise rotary positioning and indexing operations in automated production lines.
Assembly Automation
Suitable for workpiece positioning and directional transfer in assembly machinery.
Transfer and Sorting Equipment
Applied in transfer systems requiring stable rotary movement and positioning control.
Packaging Machinery
Used in packaging automation systems for directional movement and positioning applications.
Industrial Automation Equipment
Suitable for compact rotary motion control in robotic and pneumatic automation systems.
Why Choose HOMIPNEU
- Stable rotary actuator manufacturing quality
- Compact structure for automation equipment integration
- Smooth and repeatable rotary positioning performance
- Support for customized rotation angles and mounting structures
- Reliable delivery for industrial bulk orders
- OEM branding and export packaging support
- Experienced support for pneumatic automation applications
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the MSQB Series interchangeable with SMC MSQB Series?
Yes, the MSQB Series rotary table actuator is designed to be interchangeable with SMC MSQB Series in many industrial automation applications.
What is the MSQB rotary table used for?
It is commonly used for rotary positioning, indexing systems, assembly automation, transfer equipment, and packaging machinery.
What rotation angles are available?
Common rotation angles include 90° and 180° depending on application requirements.
What type of rotary mechanism is used?
The MSQB Series uses a rack and pinion rotary mechanism for stable and accurate rotary motion.
Can customized rotary solutions be supported?
Yes, customized rotation angles, mounting configurations, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for pneumatic rotary table actuators, including customized rotation angles, mounting dimensions, logo printing, packaging solutions, and pneumatic automation support for industrial distributors, machinery manufacturers, and automation system integrators.
