Specifications
| Parameter | Description |
|---|---|

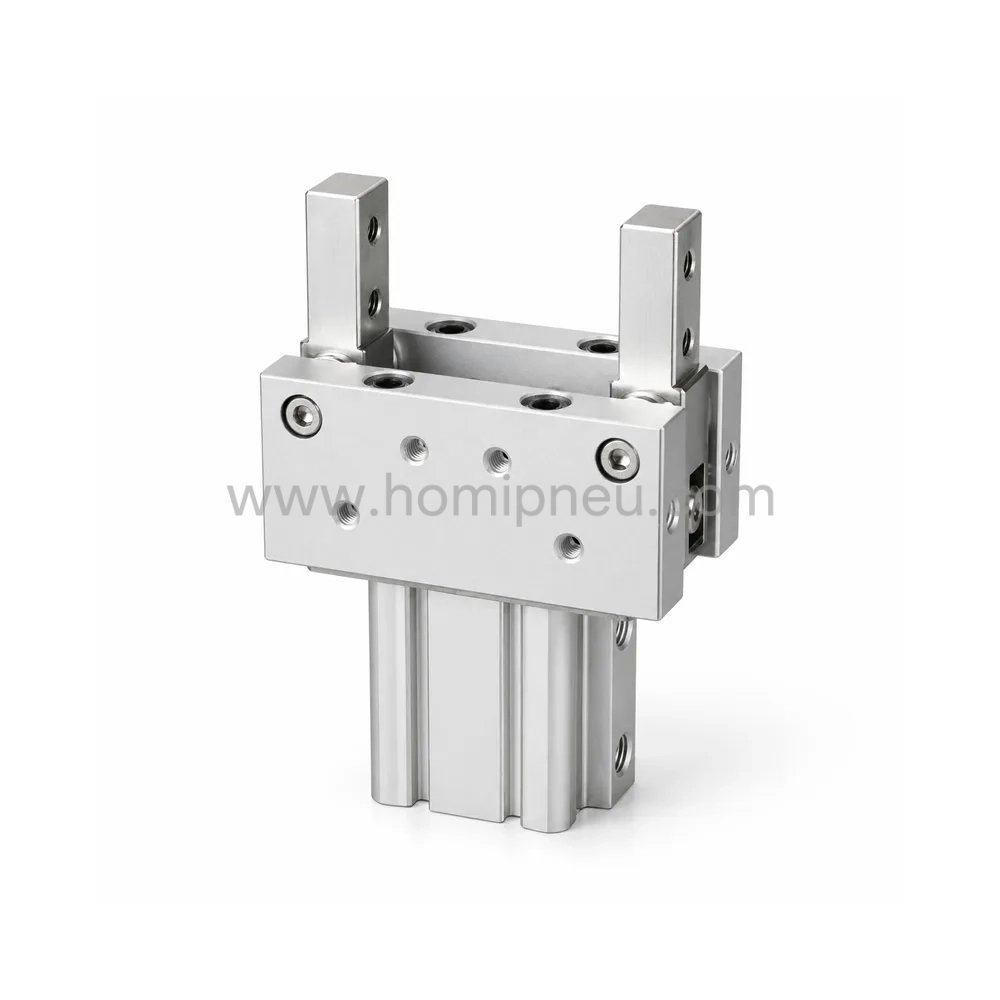

| Product Name | Pneumatic Toggle Gripper |
| Series | MHT2 Series |
| Gripper Type | Toggle Type / Parallel Type |
| Number of Fingers | 2 Fingers |
| Bore Size | 32 / 40 / 50 / 63 mm |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.6 MPa |
| Finger Opening Angle | -3°~28° |
| Body Material | Aluminum Alloy |
| Mounting Type | Multi-Direction Mounting |
| Compatible with | SMC MHT2 Series |
| Applications | Pick-and-Place / Assembly / Transfer Systems |

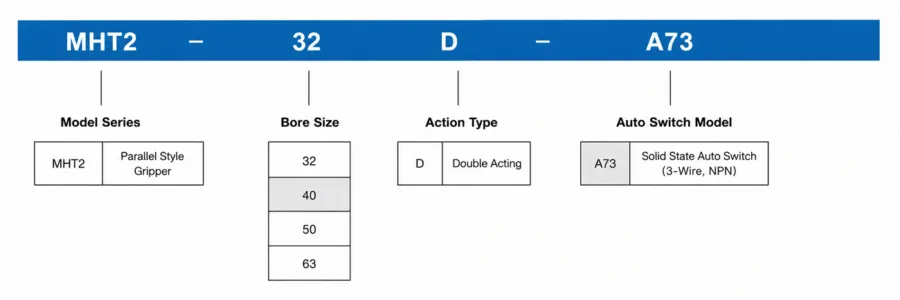

How to order
Product Features
Toggle Type Gripping Structure
Designed with a toggle mechanism to provide strong and stable holding force during workpiece handling.
Stable Two-Finger Gripping
Provides reliable gripping performance for repeated pick-and-place, transfer, and assembly operations.
Wide Bore Size Options
Available in 32 mm, 40 mm, 50 mm, and 63 mm sizes for different gripping force requirements.
Flexible Finger Opening Angle
Supports finger opening movement up to about 28° depending on model size and application requirements.
Multi-Direction Mounting
Supports vertical, axial, and lateral mounting for flexible integration into automation equipment.
Easy Industrial Replacement
Ideal replacement for SMC MHT2 Series in pneumatic toggle gripper applications.
Automation-Friendly Design
Suitable for systems requiring stable holding force, compact installation, and repeatable gripping control.
Applications
Pick-and-Place Systems
Used for gripping, holding, transferring, and releasing workpieces in automated production lines.
Assembly Automation
Suitable for part handling, positioning, loading, and assembly operations.
Packaging Machinery
Applied in packaging automation systems requiring stable holding force and repeatable gripping.
Material Handling Equipment
Provides reliable gripping movement for transfer, sorting, and feeding systems.
Robotic End-of-Arm Tooling
Suitable for EOAT systems requiring strong pneumatic gripping and stable workpiece holding.
Why Choose HOMIPNEU
- Toggle type structure for strong holding force
- Stable two-finger gripping performance
- Multiple bore size options for different applications
- Flexible mounting for equipment integration
- Durable aluminum alloy body construction
- Suitable for continuous industrial automation
- Reliable performance for handling and transfer systems
- Professional pneumatic gripper manufacturing support
FAQ
Is the MHT2 Series interchangeable with SMC MHT2 Series?
Yes, the MHT2 Series pneumatic toggle gripper is designed to be interchangeable with SMC MHT2 Series in many industrial automation applications.
What is the MHT2 pneumatic gripper used for?
It is commonly used for pick-and-place systems, assembly automation, packaging machinery, transfer systems, and robotic handling applications.
What is the advantage of a toggle type gripper?
A toggle mechanism helps provide strong and stable holding force, making it suitable for workpiece handling applications that require secure gripping.
What bore sizes are available?
Common bore sizes include 32 mm, 40 mm, 50 mm, and 63 mm depending on gripping force and installation requirements.
Can customized gripper structures be supported?
Yes, customized finger configurations, mounting structures, and application-specific gripping solutions can be supported.
OEM & ODM Support
HOMIPNEU provides professional OEM and ODM manufacturing services for pneumatic toggle grippers, including customized finger structures, mounting options, logo branding, packaging solutions, and industrial automation support for distributors, machinery manufacturers, and pneumatic system integrators.
