Specifications
| Parameter | Description |
|---|---|

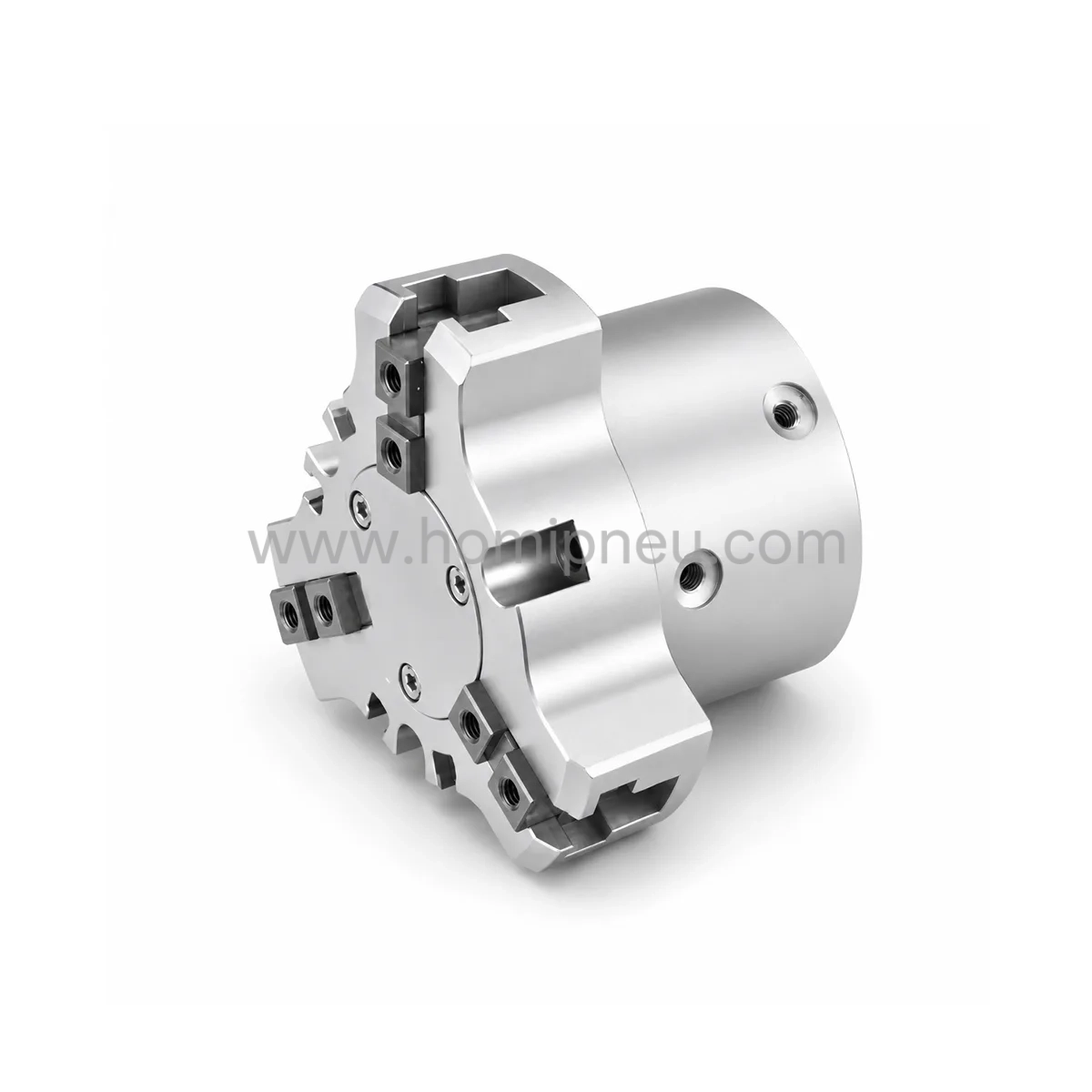

| Product Name | Long Stroke Pneumatic Gripper |
| Series | MHSL3 Series |
| Gripper Type | 3-Finger Parallel Air Gripper |
| Finger Structure | 3 Fingers |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.6 MPa |
| Repeatability | ±0.01 mm |
| Body Material | Aluminum Alloy |
| Structure Type | Wedge Cam Parallel Structure |
| Motion Type | Parallel Opening and Closing |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MHSL3 Series |
| Applications | Robotic Handling / Machine Tool Loading / Transfer Systems |

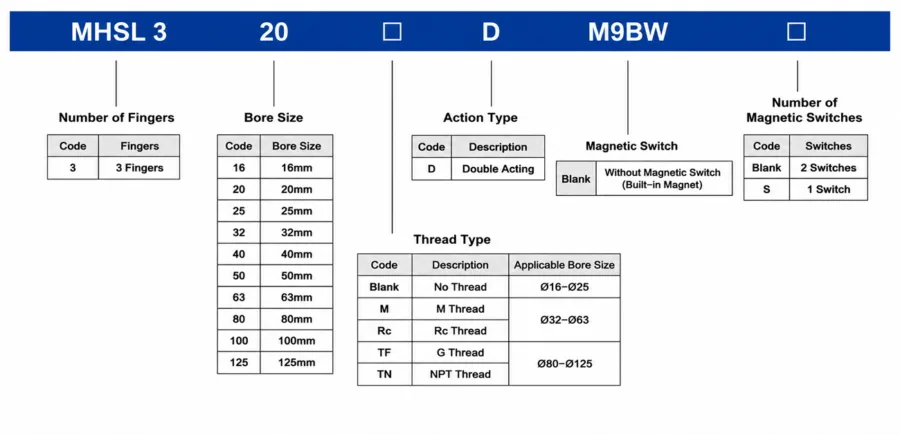

How to order
Product Features
Long Stroke 3-Finger Structure
The MHSL3 Series uses a long stroke 3-finger gripping structure suitable for cylindrical, spherical, and irregular workpieces in industrial automation systems.
Wedge Cam High Gripping Force Design
The wedge cam mechanism helps maintain strong gripping force while keeping the overall body structure compact.
Stable Repeatability Performance
Provides repeatability up to ±0.01 mm for repeated gripping and positioning operations in automation equipment.
Compact Aluminum Alloy Body
The lightweight aluminum alloy housing supports continuous industrial operation while simplifying equipment integration.
Wide Bore Size Range
Available in multiple bore sizes from ø16 to ø125 to support different gripping force and workpiece size requirements.
Suitable Replacement for SMC MHSL3 Series
Designed for pneumatic gripping applications requiring replacement for SMC MHSL3 Series models.
Automation-Friendly Installation
ISO standard mounting structure supports integration into robotic EOAT systems, transfer equipment, and machine tool automation systems.
Applications
Machine Tool Loading and Unloading
Suitable for gripping cylindrical and round workpieces during CNC automation operations.
Robotic End-of-Arm Tooling
Used in robotic handling systems requiring stable 3-finger gripping movement.
Pick-and-Place Systems
Supports automated transfer and positioning of irregular or round components.
Assembly Automation
Used in automated assembly systems requiring stable gripping and part orientation.
Industrial Transfer Equipment
Applicable for transfer, sorting, feeding, and material handling systems in industrial automation environments.
Why Choose HOMIPNEU
- Stable pneumatic gripper manufacturing quality
- Long stroke gripping structure for wider workpiece range
- Compact wedge cam mechanism with high gripping force
- ISO standard mounting for easier automation integration
- Multiple bore sizes for industrial applications
- Support for customized finger structures and dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and robotic automation integrators
FAQ
Is the MHSL3 Series interchangeable with SMC MHSL3 Series?
Yes, the MHSL3 pneumatic gripper is designed to be interchangeable with SMC MHSL3 Series in many industrial automation applications.
What workpieces are suitable for the MHSL3 gripper?
The MHSL3 Series is suitable for cylindrical, spherical, and irregular workpieces requiring stable 3-finger gripping.
What type of gripping structure is used?
The MHSL3 Series uses a wedge cam parallel gripping structure with long stroke finger movement.
What repeatability does the MHSL3 Series provide?
Typical repeatability is approximately ±0.01 mm depending on operating conditions.
Can customized gripper configurations be supported?
Yes, customized finger structures, mounting dimensions, and application-specific gripping solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MHSL3 pneumatic grippers, including customized finger structures, mounting dimensions, logo branding, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and robotic system integrators.
