Specifications
| Parameter | Description |
|---|---|
| Product Name | Parallel Pneumatic Gripper |
| Series | MHS Series |
| Gripper Type | Parallel Type Air Gripper |
| Finger Options | 2-Finger / 3-Finger / 4-Finger |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.2~0.6 MPa |
| Body Material | Aluminum Alloy |
| Structure Type | Wedge Cam Parallel Gripping Structure |
| Motion Type | Parallel Opening and Closing |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MHS Series |
| Applications | Pick-and-Place / Robotic Handling / Transfer Systems |

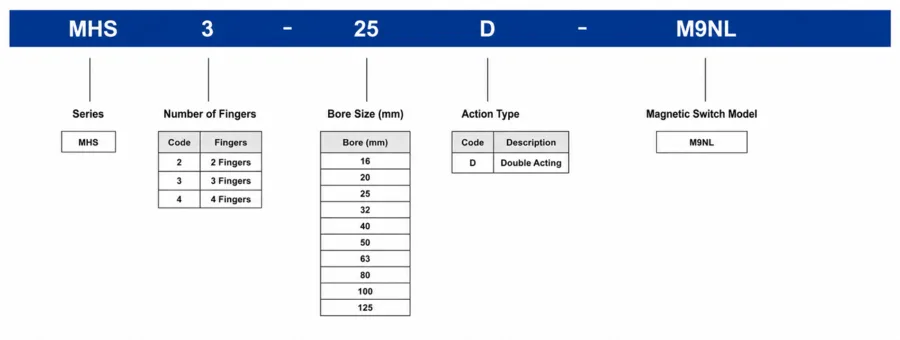

How to order
Product Features
Parallel Gripping Structure
The MHS Series uses a parallel finger movement structure for stable workpiece gripping, positioning, and transfer in automation equipment.

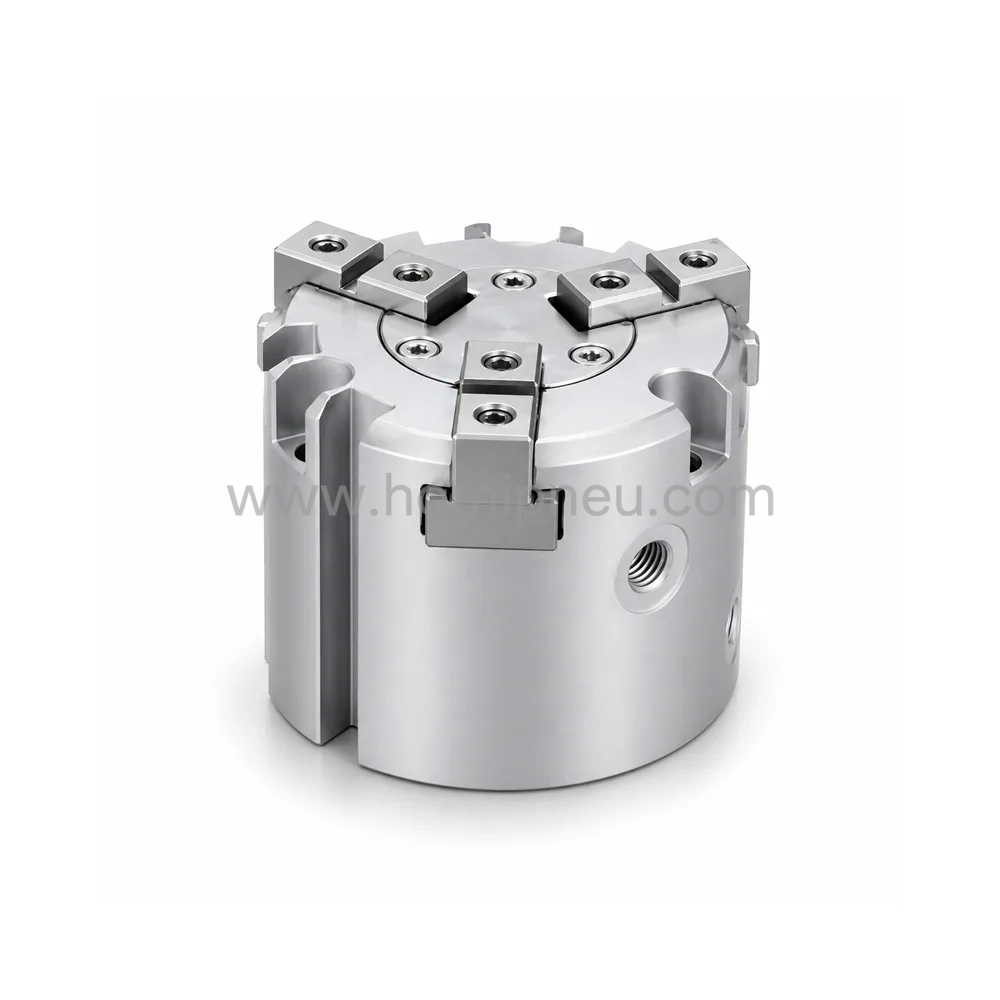

2-Finger, 3-Finger, and 4-Finger Options
Available in multiple finger configurations to support different workpiece shapes, including flat, round, and cylindrical parts.
Compact Wedge Cam Design
The wedge cam structure helps provide strong gripping force from a compact body size, making it suitable for limited installation space.
Stable Repeatable Motion
Designed for repeated opening and closing movement in automated production lines, transfer systems, and robotic handling applications.
Durable Aluminum Alloy Body
The aluminum alloy housing supports lightweight installation and reliable use in continuous industrial environments.
Suitable Replacement for SMC MHS Series
Designed for pneumatic gripping applications requiring replacement for SMC MHS Series models.
Automation-Friendly Mounting
ISO standard mounting helps simplify installation into machinery, fixtures, robotic end-of-arm tooling, and transfer equipment.
Applications
Pick-and-Place Systems
Used for gripping, transferring, and releasing workpieces in automated production equipment.
Robotic Handling Systems
Suitable for robotic end-of-arm tooling where stable pneumatic gripping is required.
Machine Tool Loading and Unloading
The 3-finger and 4-finger structures are suitable for cylindrical or round workpieces used in machining automation.
Assembly Automation
Applied in component positioning, loading, sorting, and transfer processes.
Packaging and Transfer Equipment
Used in packaging machinery and material handling systems requiring repeatable parallel gripping movement.
Why Choose HOMIPNEU
- Stable pneumatic gripper manufacturing quality
- 2-finger, 3-finger, and 4-finger configuration support
- Compact body structure for automation equipment integration
- ISO standard mounting for easier machinery installation
- Support for customized finger structures and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the MHS Series interchangeable with SMC MHS Series?
Yes, the MHS Series pneumatic gripper is designed to be interchangeable with SMC MHS Series in many industrial automation applications.
What is the MHS pneumatic gripper used for?
It is used for pick-and-place systems, robotic handling, transfer equipment, assembly automation, and machine tool loading or unloading.
What finger options are available?
The MHS Series includes 2-finger, 3-finger, and 4-finger parallel pneumatic gripper options.
What type of gripping structure does it use?
It uses a parallel opening and closing structure with a compact wedge cam design for stable gripping movement.
Can customized gripper fingers be supplied?
Yes, customized finger structures, mounting dimensions, and application-specific gripping solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MHS Series pneumatic grippers, including customized finger structures, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and system integrators.
