Specifications
| Parameter | Description |
|---|---|
| Product Name | Miniature Guide Rod Cylinder |
| Series | MGJ Series |
| Cylinder Type | Guided Pneumatic Cylinder |
| Motion Type | Guided Linear Motion |
| Guide Structure | Dual Guide Rod Structure |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~0.7 MPa |
| Bore Size | 6 mm / 10 mm |
| Body Material | Aluminum Alloy |
| Non-Rotating Accuracy | High Precision Guided Motion |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC MGJ Series |
| Applications | Precision Automation / Electronics / Instrumentation |

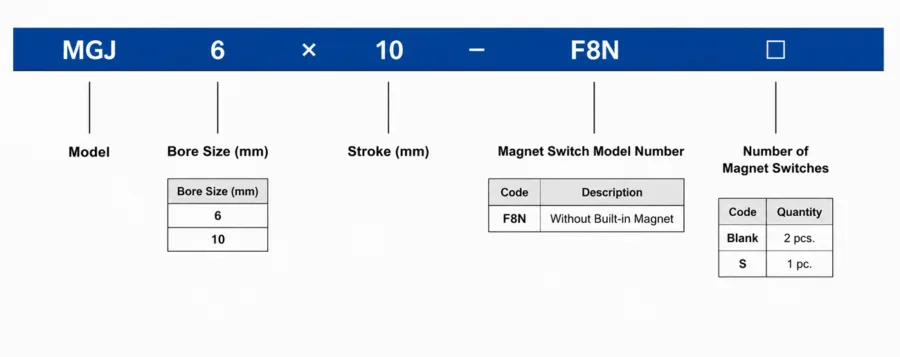

How to order
Product Features
Miniature Guided Cylinder Design
The MGJ Series is designed with an ultra-compact structure suitable for miniature automation equipment and limited installation space.
High Precision Guide Rod Structure
Integrated dual guide rods help maintain stable non-rotating linear movement during operation.
Compact Linear Motion Performance
Provides smooth and repeatable guided motion for precision automation applications.
Suitable for Small Load Applications
Designed for electronics, instrumentation, and light-load positioning systems requiring compact pneumatic actuation.
Durable Aluminum Alloy Construction
Manufactured with lightweight aluminum alloy housing for reliable industrial automation use.
Suitable Replacement for SMC MGJ Series
Designed for miniature guided pneumatic motion applications requiring replacement for SMC MGJ Series models.
Easy Precision Equipment Integration
ISO standard mounting supports practical installation into compact fixtures, electronic equipment, and precision automation systems.
Applications
Electronics Automation
Used for positioning, transfer, and compact guided motion in electronic manufacturing equipment.
Precision Instrumentation Systems
Suitable for small-load motion control in laboratory and instrumentation devices.
Compact Assembly Equipment
Applied in miniature assembly and transfer mechanisms requiring precise linear movement.
Small Component Handling
Used for positioning and movement of lightweight components in precision automation systems.
Compact Automation Fixtures
Suitable for precision jigs and fixtures where stable guided motion is required.
Why Choose HOMIPNEU
- Stable miniature guide cylinder manufacturing quality
- Compact structure suitable for precision automation equipment
- High precision guide rod movement performance
- ISO standard mounting for easier equipment integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Export packaging and branding support
- Suitable for electronics and automation equipment manufacturers
FAQ
Is the MGJ Series interchangeable with SMC MGJ Series?
Yes, the MGJ Series miniature guide rod cylinder is designed to be interchangeable with SMC MGJ Series in many precision automation applications.
What is the MGJ miniature guide cylinder used for?
It is commonly used for electronics automation, instrumentation systems, compact assembly equipment, and precision guided linear motion applications.
What bore sizes are available?
Common bore sizes include 6 mm and 10 mm depending on application requirements.
What type of guide structure does the MGJ Series use?
The MGJ Series uses an integrated dual guide rod structure for stable non-rotating motion.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and application-specific guided cylinder solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for MGJ Series miniature guide rod cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for machinery manufacturers, distributors, and system integrators.
