Specifications
| Parameter | Description |
|---|---|

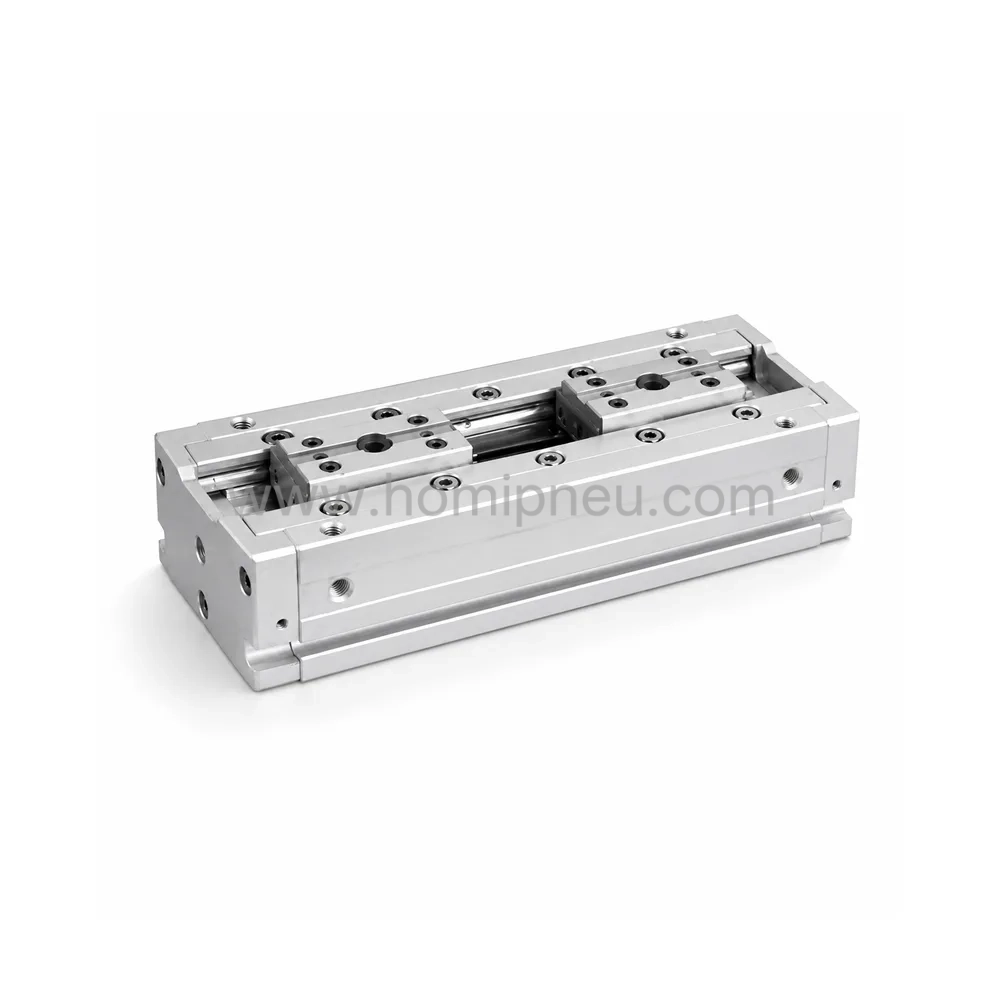

| Product Name | Thin Pneumatic Finger Gripper |
| Series | HFD Series |
| Gripper Type | Parallel Pneumatic Gripper |
| Structure Type | Slim Type Double Guide Structure |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.1~0.7 MPa |
| Body Material | Aluminum Alloy |
| Guide Rail Material | Stainless Steel |
| Mounting Type | ISO Standard Mounting |
| Motion Type | Parallel Opening and Closing |
| Compatible with | Airtac HFD Series |
| Applications | Pick-and-Place / Assembly / Precision Handling |

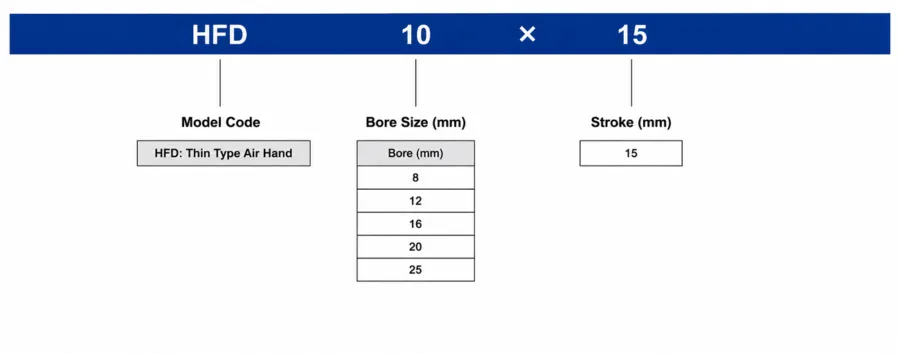

How to order
Model Details
Product Features
Ultra-Thin Compact Design
The HFD Series adopts a low-profile body structure suitable for automation equipment with limited installation space.
Double Guide Rail Structure
Dual guide rail design improves bending moment resistance and provides more stable gripping movement.
Double Piston Output
Double piston actuation supports higher gripping force and stable parallel finger operation.
High Rigidity Stainless Steel Rails
The guide rails are manufactured from stainless steel for improved rigidity, wear resistance, and corrosion resistance.
Stable Parallel Gripping Motion
Provides smooth and repeatable gripping performance for continuous automation applications.
Flexible Multi-Direction Installation
Supports flexible mounting configurations for robotic systems and automated handling equipment.
Suitable Replacement for Airtac HFD Series
Designed for compact pneumatic gripping applications requiring replacement for Airtac HFD Series models.
Applications
Pick-and-Place Automation
Used for stable gripping and transfer operations in automated production systems.
Precision Assembly Equipment
Suitable for positioning and handling small components in precision assembly applications.
Packaging Machinery
Applied in packaging automation systems requiring compact gripping solutions.
Electronic Component Handling
Suitable for gripping lightweight and precision electronic components in automated lines.
Robotic End-of-Arm Tooling
Used in EOAT systems requiring compact pneumatic gripping structures.
Why Choose HOMIPNEU
- Compact thin-body pneumatic gripper structure
- Stable double guide rail gripping performance
- Smooth and repeatable finger movement
- Support for customized finger dimensions and mounting structures
- Reliable delivery for industrial automation orders
- OEM branding and export packaging support
- Experienced pneumatic automation manufacturing support
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the HFD Series interchangeable with Airtac HFD Series?
Yes, the HFD Series pneumatic finger gripper is designed to be interchangeable with Airtac HFD Series in many industrial automation applications.
What is the HFD pneumatic gripper used for?
It is commonly used for pick-and-place systems, electronic assembly, packaging machinery, robotic handling, and precision transfer systems.
What type of structure does the HFD Series use?
The HFD Series uses a slim parallel gripping structure with dual guide rails and double piston actuation.
What are the advantages of the thin design?
The reduced body height helps save installation space and reduces shaking moment in high-speed automation applications.
Can customized gripper solutions be supported?
Yes, customized finger structures, mounting configurations, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for pneumatic finger grippers, including customized finger structures, mounting dimensions, logo printing, packaging solutions, and industrial automation support for distributors, machinery manufacturers, and pneumatic system integrators.
