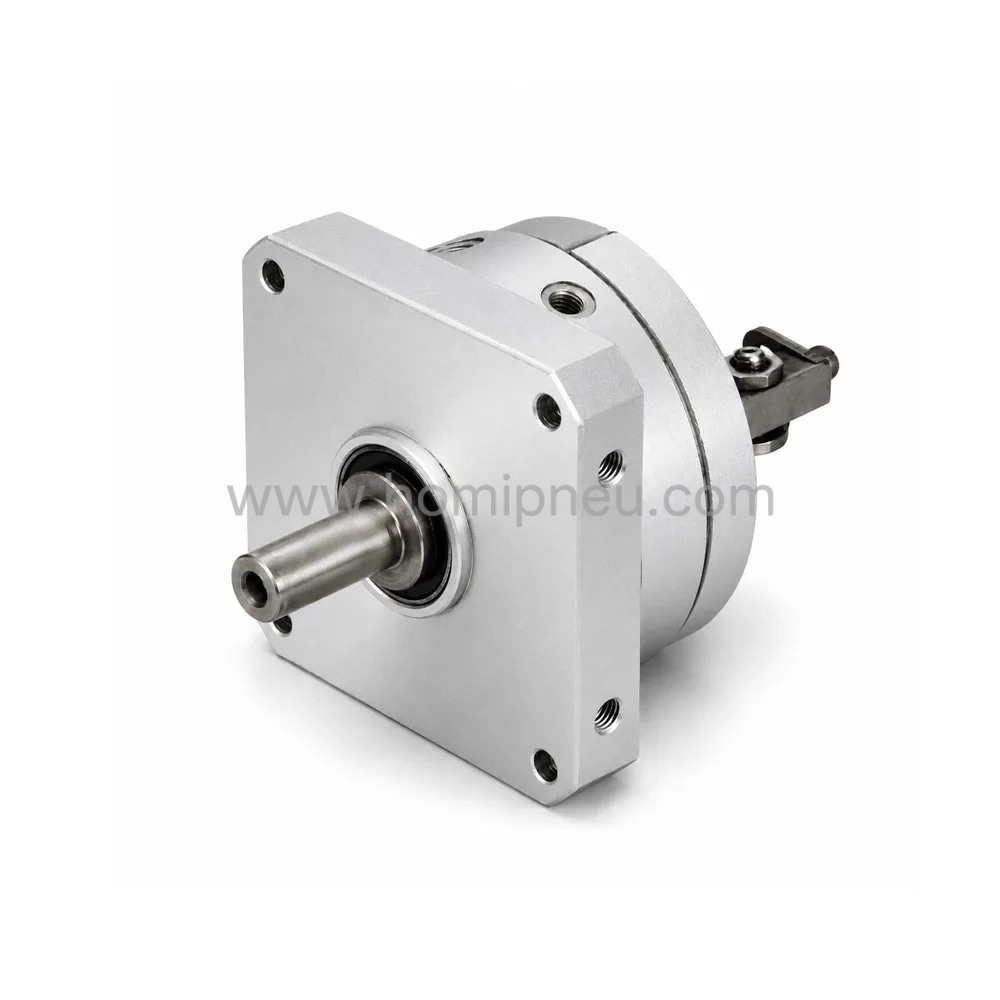

DSM Series Pneumatic Rotary Actuator

Specifications

Main function	Pneumatic rotary actuator
Product series / family name	Actuators - Quarter turn actuator series
Sub-range name	DSM series
Functions	Pneumatic swivel module / rotary double-acting single-shaft actuator unit
Design	Cu-free P.T.F.E .- free rotary vane spigot shaft 240° swivel size 10 elastic cushioning at both ends operation with oil lubrication possible Double-acting Compressed air as per ISO8573-1;2010 [7;4;4]
Pressure	+2.5 ... +8bar (operating pressure)
Torque	0.85Nm (at 6bar)
Connection type	M3 threaded pneumatic port
Mounting mode	internal threaded mount
Material	Anodized Aluminium housing Thermoplastic polyurethane (TPE-U(PU)) static seals High-alloy stainless steel drive shaft
Ambient air temperature for operation	0°C ... +60 ℃

Product Features

Compact pneumatic rotary actuator design
ISO standardized installation dimensions
FESTO compatible mounting structure
Stable rotary motion control performance
Smooth operation with reliable torque output
Durable internal structure for long service life
Multiple rotation angle options available
Space-saving actuator body design
Suitable for industrial automation systems
Easy installation and maintenance

How To Order

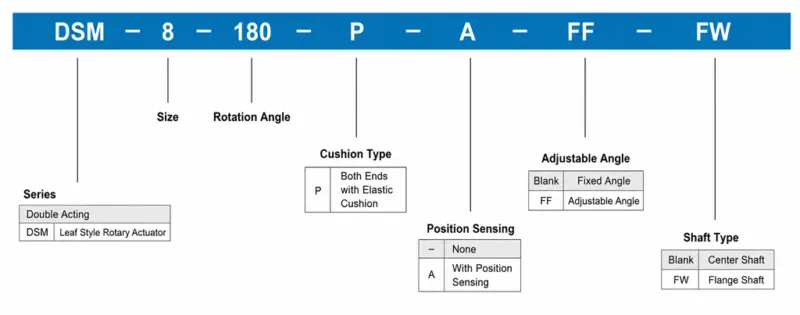

How To Order DSM Series

▶

Part Number

Size (Ø)	Rotation Angle	Basic Model	With Sensing (-A)	With Flanged Shaft (-FW)	With Fixed Stop (-FF)	Combined Feature Models
6	90°	DSM-6-90-P	DSM-6-90-P-A	DSM-6-90-P-FW	—	DSM-6-90-P-A-FW
6	180°	DSM-6-180-P	DSM-6-180-P-A	DSM-6-180-P-FW	DSM-6-180-P-FF	DSM-6-180-P-A-FF DSM-6-180-P-A-FW DSM-6-180-P-FF-FW DSM-6-180-P-A-FF-FW
8	90°	DSM-8-90-P	DSM-8-90-P-A	DSM-8-90-P-FW	—	DSM-8-90-P-A-FW
8	180°	DSM-8-180-P	DSM-8-180-P-A	DSM-8-180-P-FW	DSM-8-180-P-FF	DSM-8-180-P-A-FF DSM-8-180-P-A-FW DSM-8-180-P-FF-FW DSM-8-180-P-A-FF-FW
10	90°	DSM-10-90-P	DSM-10-90-P-A	DSM-10-90-P-FW	—	DSM-10-90-P-A-FW
10	180°	DSM-10-180-P	DSM-10-180-P-A	DSM-10-180-P-FW	—	DSM-10-180-P-A-FW
10	240°	DSM-10-240-P	DSM-10-240-P-A	DSM-10-240-P-FW	DSM-10-240-P-FF	DSM-10-240-P-A-FF DSM-10-240-P-A-FW DSM-10-240-P-FF-FW DSM-10-240-P-A-FF-FW

Applications

Industrial Automation

Used for rotary motion control in automated production systems and industrial machinery.

Clamping Systems

Suitable for fixture rotation and pneumatic clamping applications.

Packaging Machinery

Provides stable angular movement for packaging automation systems.

Material Handling Equipment

Used for rotational positioning in transfer and handling applications.

Assembly Automation

Supports repeated rotary positioning and automation control functions.

Why Choose HOMIPNEU DSM Series Rotary Actuators

HOMIPNEU is a professional pneumatic actuator manufacturer specializing in industrial automation motion control solutions. Our DSM Series pneumatic rotary actuators are designed with ISO standardized dimensions and FESTO compatible structures for convenient system integration and industrial equipment replacement applications.

As an experienced OEM pneumatic rotary actuator supplier, we provide reliable air rotary actuators for automation systems, packaging machinery, and industrial motion control equipment. The compact actuator structure and durable sealing design ensure efficient operation in continuous industrial environments.

Our industrial pneumatic rotary actuators feature:

ISO standardized installation structure
FESTO compatible actuator dimensions
Stable rotary motion control performance
Reliable torque output for automation systems
Compact space-saving body design
Smooth rotary operation with low maintenance requirements

HOMIPNEU supports:

OEM pneumatic rotary actuator manufacturing
ODM industrial actuator customization
FESTO compatible specification customization
Customized shaft and rotation angle solutions
Private label and logo customization
Bulk industrial orders and global supply capability

FAQ

What is a pneumatic rotary actuator?
A pneumatic rotary actuator converts compressed air energy into rotary motion for angular positioning and automation control applications.

Is the DSM rotary actuator FESTO compatible?
Yes. The DSM Series features FESTO compatible installation dimensions and standardized mounting structures.

Does the actuator follow ISO standards?
Yes. The DSM Series is designed with ISO standardized specifications for improved industrial compatibility.

What applications are suitable for DSM rotary actuators?
They are commonly used in industrial automation, clamping systems, packaging machinery, material handling equipment, and assembly systems.

Does HOMIPNEU support OEM and ODM services?
Yes. HOMIPNEU provides OEM and ODM customization services for industrial distributors, machinery manufacturers, and global B2B customers.
