Specifications
| DRVS | -6 | -8 | -12 | -16 |
| Pneumatic port | M3 | M3 | M5 | M5 |
| Mounting position | Any | |||
| Design | Rotary cylinder with rotary vane | |||
| Cushioning | Elastic cushioning at both ends | |||
| Ambient temperature [°C] | 0 ... 60 | |||
| Storage temperature [°C] | 0 ... 20 | |||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | |||
| Information on operating medium | Lubricated operation possible, in which case lubricated operation will always be required | |||
| Operating pressure [MPa] | 0.35 ... 0.8 | 0.25 ... 0.8 | ||
| Operating pressure [bar] | 3.5 ... 8 | 2.5 ... 8 | ||
| Operating pressure [psi] | 50.75 ... 116 | 36.25 ... 116 | ||
| Forces | ||||
| Permissible impact force F max [N] | 15 | 30 | 90 | 160 |
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) [N] | 0.15 | 0.35 | 1 | 2 |
| Max. permissible forces on the drive shaft | ||||
| Axial force Fx [N] | 10 | 10 | 20 | 25 |
| Radial force Fz [N] | 15 | 20 | 25 | 30 |
| Mass moment of inertia at 0.6 MPa (6 bar, 87 psi) | ||||
| Unthrottled [10-4 kgm2] | 0.05 | 0.1 | 0.3 | 0.6 |
| Throttled [10-4 kgm2] | 6.5 | 13 | 50 | 100 |
| Max. permissible swivel frequency | ||||
| DRVS-...-90 [Hz] | 3 | |||
| DRVS-...-180 [Hz] | 3 | |||
| DRVS-...-270 [Hz] | - | - | 2 | 2 |
Product Features
- Compact pneumatic semi rotary drive design
- ISO standardized installation dimensions
- FESTO compatible mounting structure
- Stable rotary motion control performance
- Smooth operation with reliable torque output
- Durable internal structure for long service life
- Multiple rotation angle options available
- Space-saving actuator body design
- Suitable for industrial automation systems
- Easy installation and maintenance
How to order
Applications
Industrial Automation
Used for rotary positioning and angular motion control in automated machinery systems.
Clamping Systems
Suitable for fixture rotation and pneumatic clamping applications.
Packaging Machinery
Provides stable rotary movement for packaging automation equipment.
Material Handling Equipment
Used for transfer positioning and rotational control applications.
Assembly Automation
Supports repeated rotary positioning in industrial assembly systems.

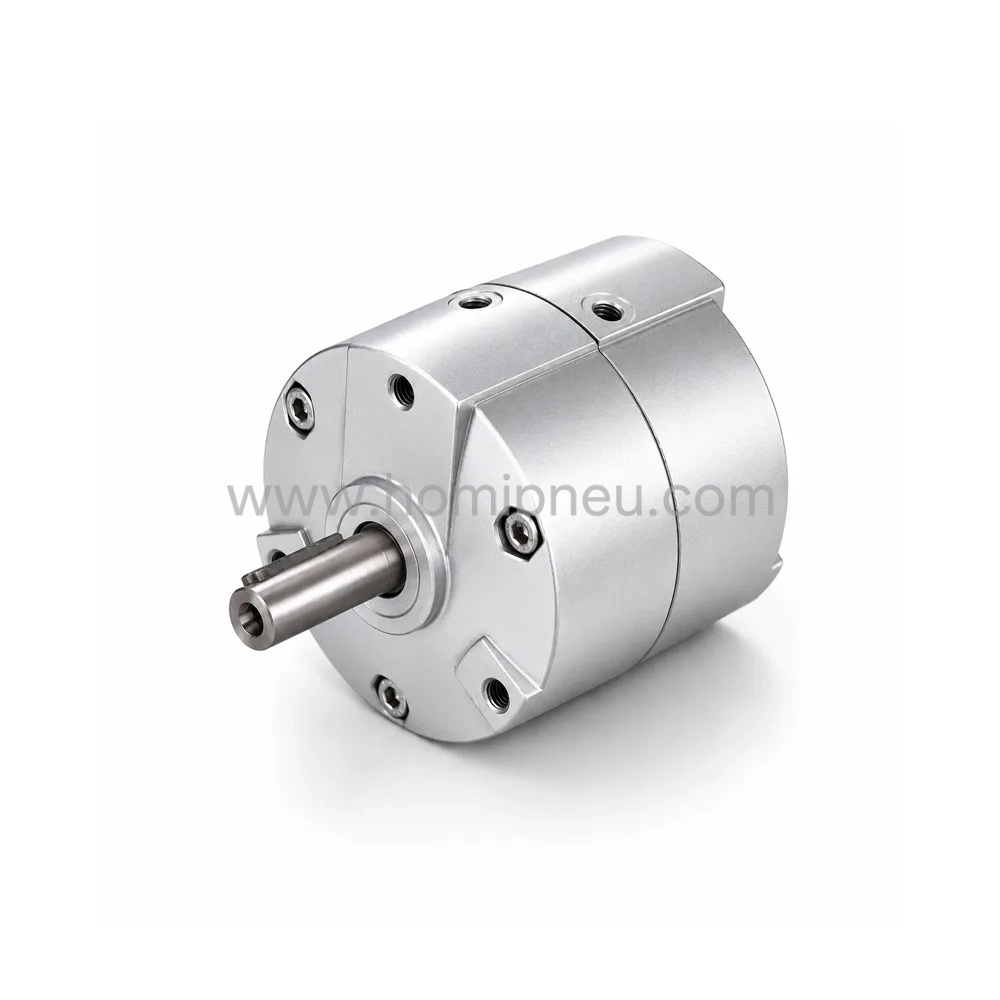

Why Choose HOMIPNEU DRVS Series Semi Rotary Drives
HOMIPNEU is a professional pneumatic actuator manufacturer specializing in industrial automation motion control solutions. Our DRVS Series pneumatic semi rotary drives are designed with ISO standardized dimensions and FESTO compatible structures for convenient system integration and industrial equipment replacement applications.
As an experienced OEM pneumatic actuator supplier, we provide reliable air rotary drives for automation systems, packaging machinery, and industrial motion control equipment. The compact actuator structure and durable sealing design ensure stable operation in continuous industrial environments.
Our industrial pneumatic semi rotary drives feature:
- ISO standardized installation structure
- FESTO compatible actuator dimensions
- Stable rotary motion control performance
- Reliable torque output for automation systems
- Compact space-saving body design
- Smooth operation with low maintenance requirements
HOMIPNEU supports:
- OEM pneumatic actuator manufacturing
- ODM industrial actuator customization
- FESTO compatible specification customization
- Customized shaft and rotation angle solutions
- Private label and logo customization
- Bulk industrial orders and global supply capability
FAQ
What is a pneumatic semi rotary drive?
A pneumatic semi rotary drive converts compressed air energy into limited-angle rotary motion for positioning and automation control applications.
Is the DRVS semi rotary drive FESTO compatible?
Yes. The DRVS Series features FESTO compatible mounting dimensions and standardized installation structures.
Does the actuator follow ISO standards?
Yes. The DRVS Series is designed with ISO standardized specifications for industrial compatibility.
What applications are suitable for DRVS semi rotary drives?
They are commonly used in industrial automation, clamping systems, packaging machinery, material handling equipment, and assembly systems.
Does HOMIPNEU support OEM and ODM services?
Yes. HOMIPNEU provides OEM and ODM customization services for industrial distributors, machinery manufacturers, and global B2B customers.
