Specifications
| Type | DRQD-6 -... | DRQD-8 -... | DRQD-12 -... |
| Design | Rotary drive with double-acting double piston and adjust- able rotating angle | ||
| Medium | Filtered (5 um) compressed air, lubricated or non-lubricated | ||
| Operating pressure range | Min. 1 ... max. 8 bar | ||
| Min. 1.5 ... max. 8 bar (with DRQD-8 -...- SD32 -... ) | |||
| Permitted pressure range for spiral tubing (DRQD -...- SD ... ) | 0 ... 10 bar (with T = - 10 C ... + 30 C) | ||
| 0 ... 9 bar (with T = - 10 C ... + 40 C) | |||
| 0 ... 7 bar (with T | = - 10 C ... + 60 C) | ||
| Fitting position | As desired | ||
| Rotation angle (ex works) | 90 (with DRQD -...- 90 -... ); 180 (with DRQD -...- 180 -... ) | ||
| Rotary angle setting per end position | Infinitely variable between - 20 ... + 6 (with DRQD -...- J20) - 60 ... + 6 (with DRQD -...- J60) | ||
| Temperature range | - 10 ... + 60 C | ||
| Tightening torque at 6 bar (theor.) | 0.16 Nm | 0.33 Nm | 0.76 Nm |
| Max. permitted forces and torques | See chapter "Fitting, mechanical" | ||
| End position cushioning | Elastic cushioning | ||
| End position adjustment | By screwing in the threaded bolts | ||
| Max. permitted unscrewing length of | |||
| threaded pins for setting DRQD -...- J20 the rotational angle DRQD -...- J60 | 8 mm | 9 mm | 10 mm |
| 12 mm | 13 mm | 14 mm | |
Product Features

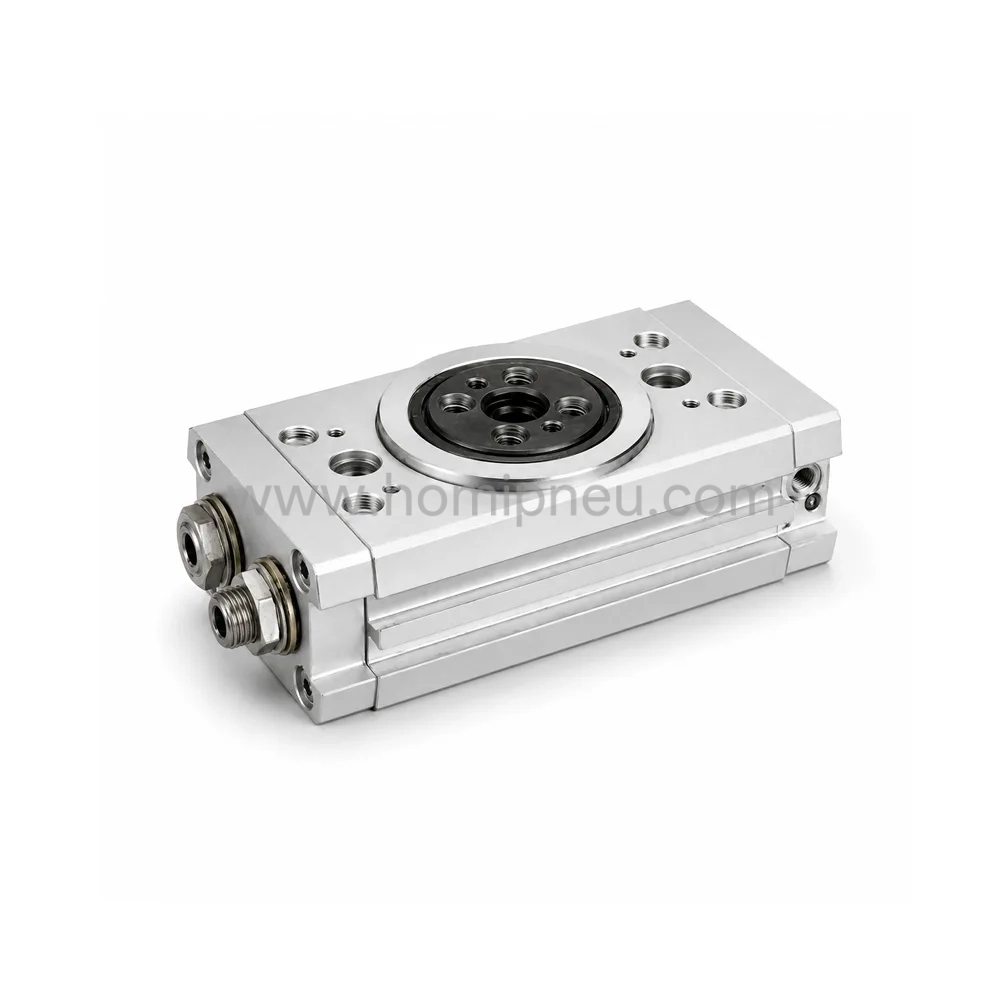

- Compact pneumatic rotary actuator design
- ISO standardized installation dimensions
- FESTO compatible mounting structure
- Stable rotary motion control performance
- Smooth operation with reliable torque output
- Durable internal structure for long service life
- Multiple rotation angle options available
- Space-saving actuator body design
- Suitable for industrial automation systems
- Easy installation and maintenance

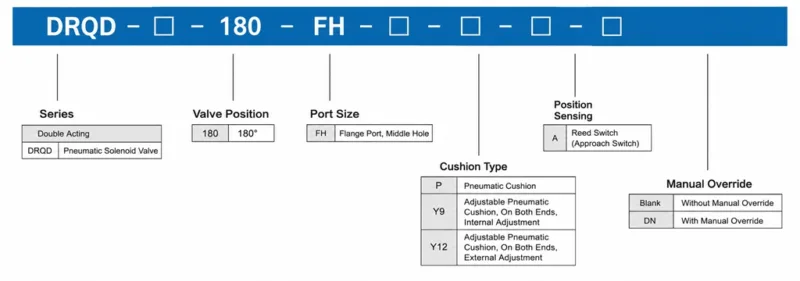

How to order
Applications
Industrial Automation
Used for rotary motion control in automated production systems and industrial machinery.
Clamping Systems
Suitable for fixture rotation and pneumatic clamping applications.
Packaging Machinery
Provides stable angular movement for packaging automation systems.
Material Handling Equipment
Used for rotational positioning in transfer and handling systems.
Assembly Automation
Supports repeated rotary positioning and automation control applications.
