Specifications
| Parameter | Description |
|---|---|
| Product Name | Linear Guide Rodless Cylinder |
| Series | CY1L Series |
| Alternative Model | RMTL Series |
| Cylinder Type | Magnetically Coupled Rodless Cylinder |
| Motion Type | Guided Long Stroke Linear Motion |
| Guide Type | Ball Bushing Linear Guide |
| Drive Structure | Magnetic Coupling Drive |
| Action Type | Double Acting |
| Working Medium | Clean Air |
| Operating Pressure | 0.15~0.7 MPa |
| Body Material | Aluminum Alloy |
| Structure Type | Linear Guide Rodless Structure |
| Mounting Type | ISO Standard Mounting |
| Compatible with | SMC CY1L Series / Airtac RMTL Series |
| Applications | Transfer / Positioning / Precision Automation Systems |

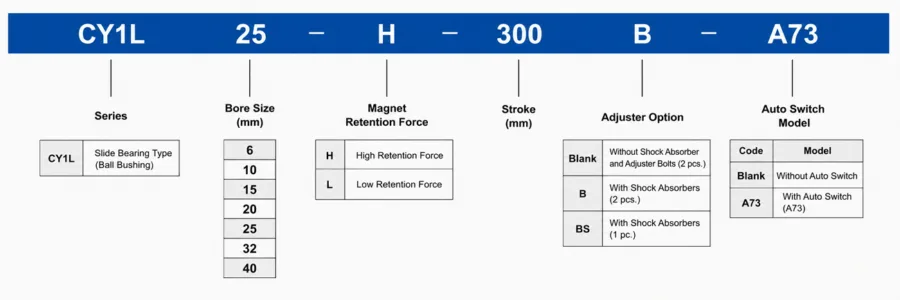

How to order
Product Features
Magnetically Coupled Rodless Structure
The CY1L Series uses magnetic coupling technology to transmit piston movement externally without using a traditional piston rod.
Linear Guide Structure
The integrated linear guide mechanism helps improve movement accuracy and supports smooth guided long-stroke motion.
High Precision Motion Performance
Suitable for precision positioning, transfer, and automation systems requiring stable repeatable movement.
Compact Long Stroke Design
Supports long linear travel while reducing machine installation space compared with traditional cylinders.
Stable Side-Load Support
The guide structure improves rigidity and movement stability during repeated operation cycles.
Suitable Replacement for SMC CY1L Series and Airtac RMTL Series
Designed for precision rodless pneumatic applications requiring replacement for SMC CY1L Series and Airtac RMTL Series models.
Easy Automation Equipment Integration
ISO standard mounting supports installation into transfer systems, positioning units, packaging machinery, and industrial automation equipment.
Applications
Precision Positioning Systems
Used for stable guided positioning tasks in industrial automation machinery.
Transfer Equipment
Suitable for long-stroke transfer movement in automated production lines.
Packaging Machinery
Applied in packaging systems requiring compact high-precision linear motion.
Electronics and Assembly Automation
Used in assembly and electronic manufacturing systems requiring accurate guided movement.
Industrial Handling Systems
Suitable for pushing, sliding, transfer, and guided motion applications in automated handling equipment.
Why Choose HOMIPNEU
- Stable rodless cylinder manufacturing quality
- Linear guide structure for high-precision movement
- Compact design for long-stroke applications
- Smooth and repeatable guided linear motion
- ISO standard mounting for easier equipment integration
- Support for customized stroke and mounting dimensions
- Reliable supply for industrial bulk orders
- Suitable for machinery manufacturers and automation integrators
FAQ
Is the CY1L Series interchangeable with SMC CY1L Series and Airtac RMTL Series?
Yes, the CY1L rodless cylinder is designed to be interchangeable with SMC CY1L Series and Airtac RMTL Series in many industrial automation applications.
What is the CY1L rodless cylinder used for?
It is commonly used for precision transfer, positioning, sliding, pushing, and long-stroke automation applications.
What type of guide structure does the CY1L Series use?
The CY1L Series uses a ball bushing linear guide structure with magnetic coupling drive for stable guided motion.
Why use a rodless cylinder instead of a standard cylinder?
Rodless cylinders help reduce installation space while supporting longer stroke movement compared with traditional rod-type cylinders.
Can customized stroke and mounting options be supported?
Yes, customized stroke lengths, mounting dimensions, and automation application solutions can be supported.
OEM & ODM Support
HOMIPNEU provides OEM and ODM manufacturing services for CY1L Series linear guide rodless cylinders, including customized stroke lengths, mounting dimensions, logo marking, export packaging, and pneumatic automation support for distributors, machinery manufacturers, and industrial system integrators.
